21 PPC-412 User Manual
Chapter 2 System Installation & Setup
2. System wiring.

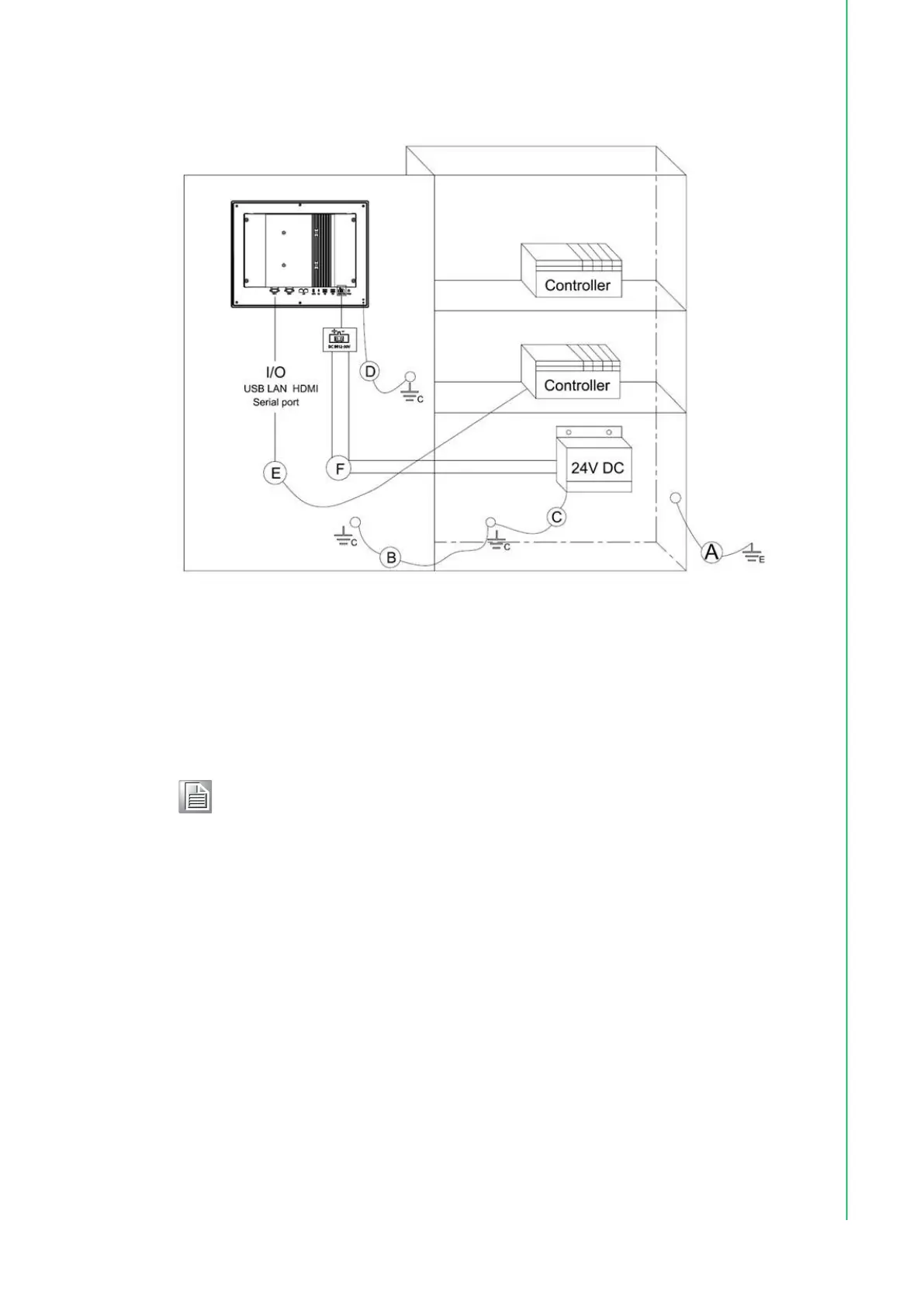

Figure 2.30 System Wiring Diagram
a. Connect the cabinet to the earth/ground.
b. Ensure that all cabinets have been grounded together.
c. Connect the ground of the power supply to the cabinet.
d.Connect the ground pin of PPC system to the cabinet.
Note! The wire of the protective earthing conductor should be green-and-yel-
low, xx AWG/ 0.75mm2 and connected to the earth on the building.
Ensure that the voltage of the power source is correct before connecting
the equipment to a power outlet through a power cord connected to a
socket- outlet with an earthed connection.
