PPC-412 User Manual 16
2.6 Installing Wireless LAN Card
1. Follow the procedures in Section 2.3 to open the rear cover and strength-plate.
The wireless LAN card can be installed to the locations as indicated in Figure
2.16. For the wireless short card, you need to take out one hexagonal screw
from the accessory box to attach it with (Note: If a half-size PCIE card is used,
then the screw circled in red should be tightened up too, See Figure 2.17).
.
2. Connect the wireless LAN card module cable to the antenna bracket, please
note the installation direction of cable end and screws/cushions (see Figure
2.18).
3. Remove the two plugs on the left and right sides of the rear cover (see Figure
2.19).
4. Return the rear cover and install the antenna of the wireless LAN card module
(see Figure 2.20).

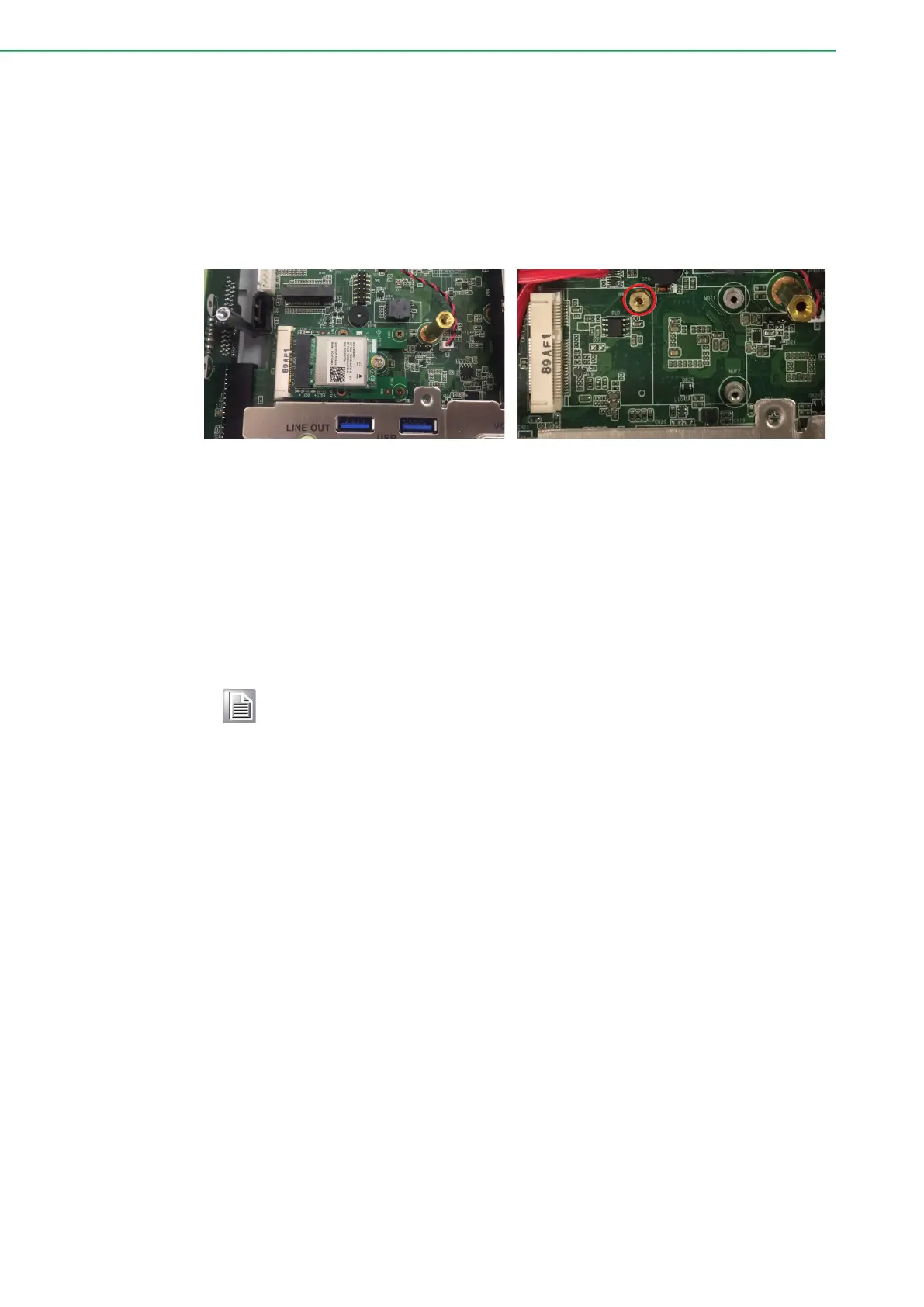

Figure 2.16
Figure 2.17
Note! For wireless LAN card module, choose Advantech Product: (Part No.
PPC-WLAN-C1E).
