PPC-412 User Manual 2
1.1 Introduction
The PPC-412 is a new generation Panel PC with XGA (1024 x 768) screen. The sys-
tem is equipped with a high performance Intel Core i CPU and with a high efficiency
fanless thermal design in which the heat is easily dissipated. It has multiple I/O ports
(five COM, five USB and two Gigabit ethernet) making more applications possible.
1.2 Key Features
True-flat HD LCD panel with 5-wire Resistive touchscreen
Intel
®
Core™i5-7300U (default); i7-7600U/i3-7100U (optional) processor with
fanless system design
1 x isolated RS-422/485 with auto flow
Wide input power range (9 ~ 32 V
DC
)
Dual Gigabit Ethernet with IEEE1588 support
3 x Independent displays
1 x M.2 bay (2242) for storage only
1 x TPM 2.0 internal support (optional)
1.3 Front Panel
The PPC-412 front panel is a true-flat color TFT LCD with resistive touch control and
an IP65 rating for resistance to dust and water (Figure 1.1).

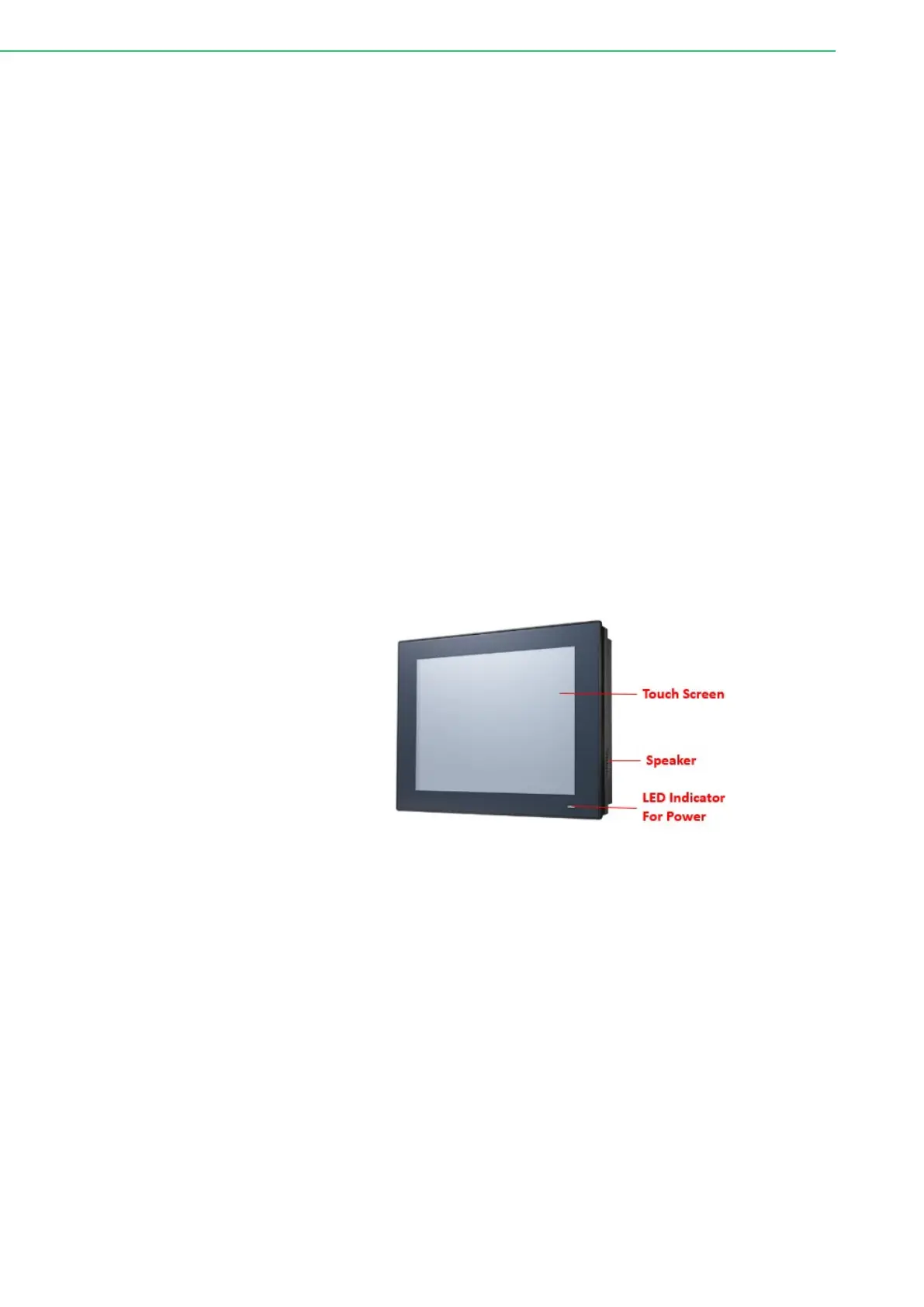

Figure 1.1 Front Panel
