27 PPC-310/312/315/321W EHL User Manual
Chapter 3 Jumper Settings
3.2 External COM Ports and Pin Definitions

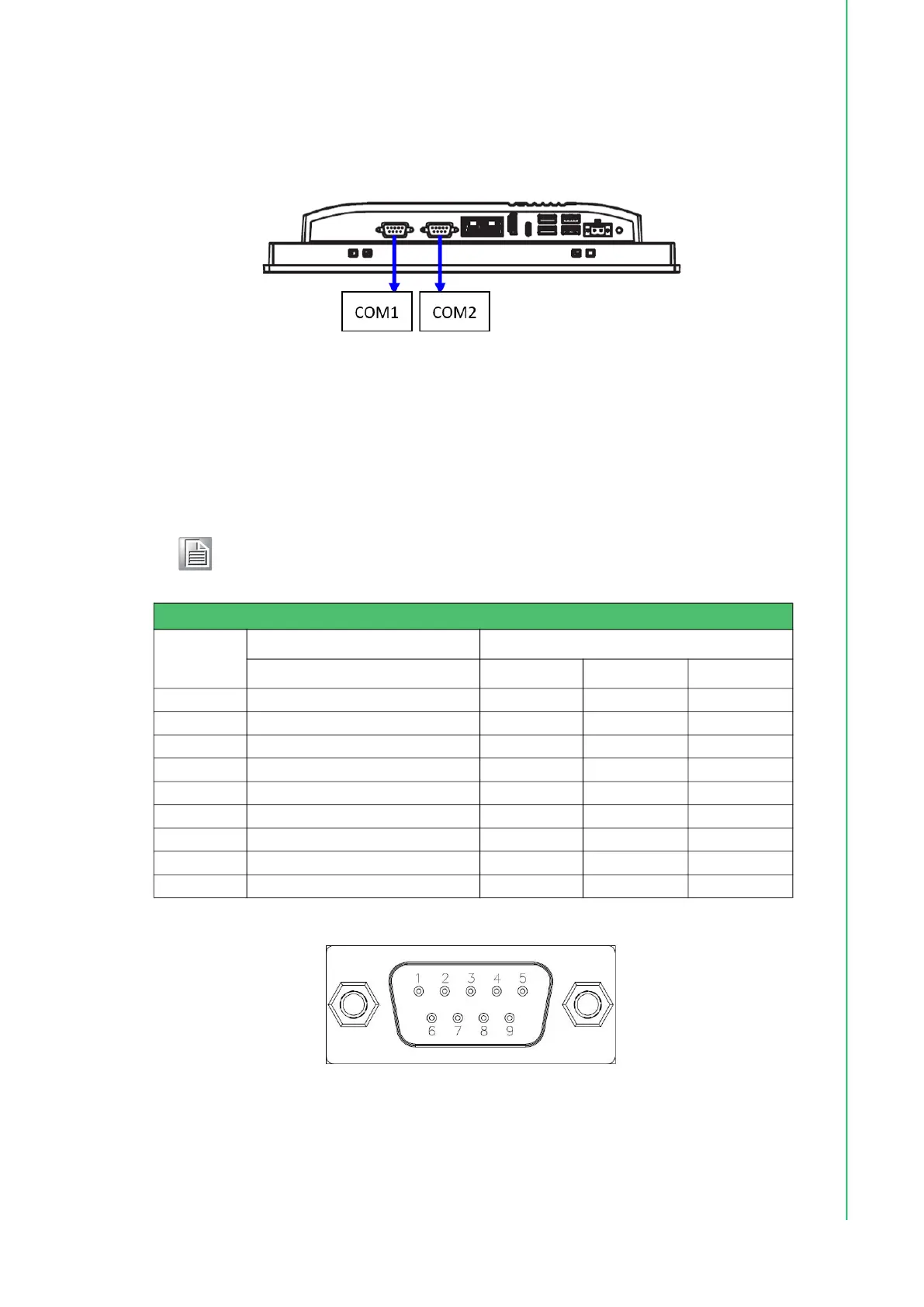

Figure 3.2 Location of COM1 and COM2 Ports
COM1: RS-232
COM1 Pin 9 is set as “RI” by default. This setting can be changed to 5V or 12V output
using a jumper.
COM2: RS-232/422/485
Note! COM2 does not support ring function.
Table 3.7: External COM Ports and Pin Definitions
Pin
COM1 COM2
RS-232 RS-232 RS-422 RS-485
1 DCD DCD TX- DATA-
2 RXD RXD TX+ DATA+
3 TXD TXD RX+ NC
4 DTR DTR RX- NC
5 GND GND GND GND
6 DSR DSR NC NC
7 RTS RTS NC NC
8 CTS CTS NC NC
9 Ring or 5V/12V output RING NC NC
