PPC-310/312/315/321W EHL User Manual 24
3.1 Motherboard Jumpers and Connectors

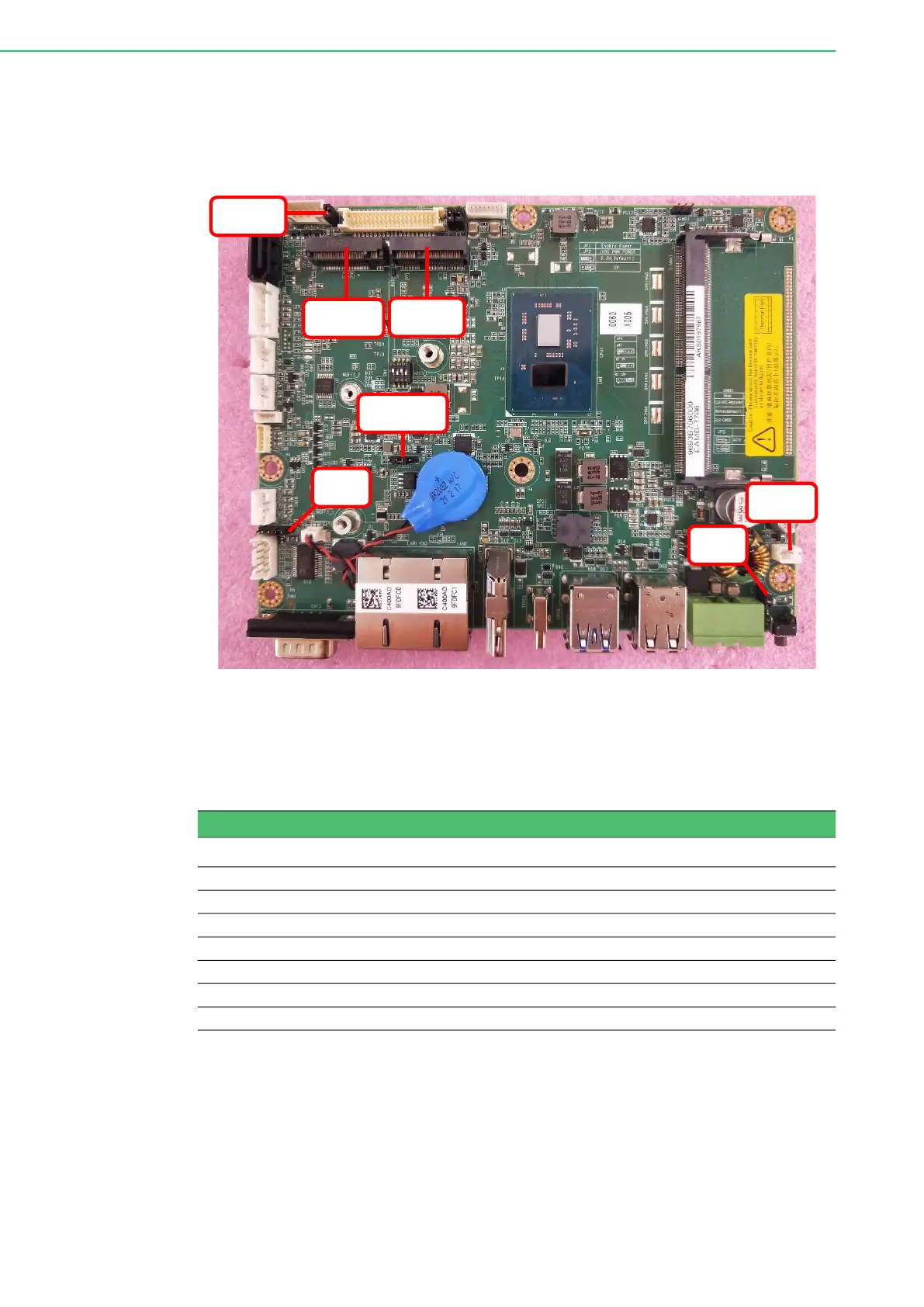

Motherboard connectors are highlighted below (Figure 3.1). The internal peripheral
connectors are accessible when the motherboard is outside of the chassis.
Figure 3.1 Motherboard
The internal jumpers and connectors on the motherboard and their pinouts are
listed in the table below.
Table 3.1: Motherboard Jumpers and Connectors
Connector Function
NGFF1 M.2 M-Key 2280 or 2242
M2E1 M.2 E-Key 2230
JCMOS1 RTC Select
JP4 COM1 Pin-9 Power Select
JP5 ATX/AT Select
JP3 Resistance Touch Power Select
CN11 Power button connection
NGFF1
M2E1
JCMOS1
JP4
JP5
JP3
CN11
