PPC-310/312/315/321W EHL User Manual 22
2. System wiring.

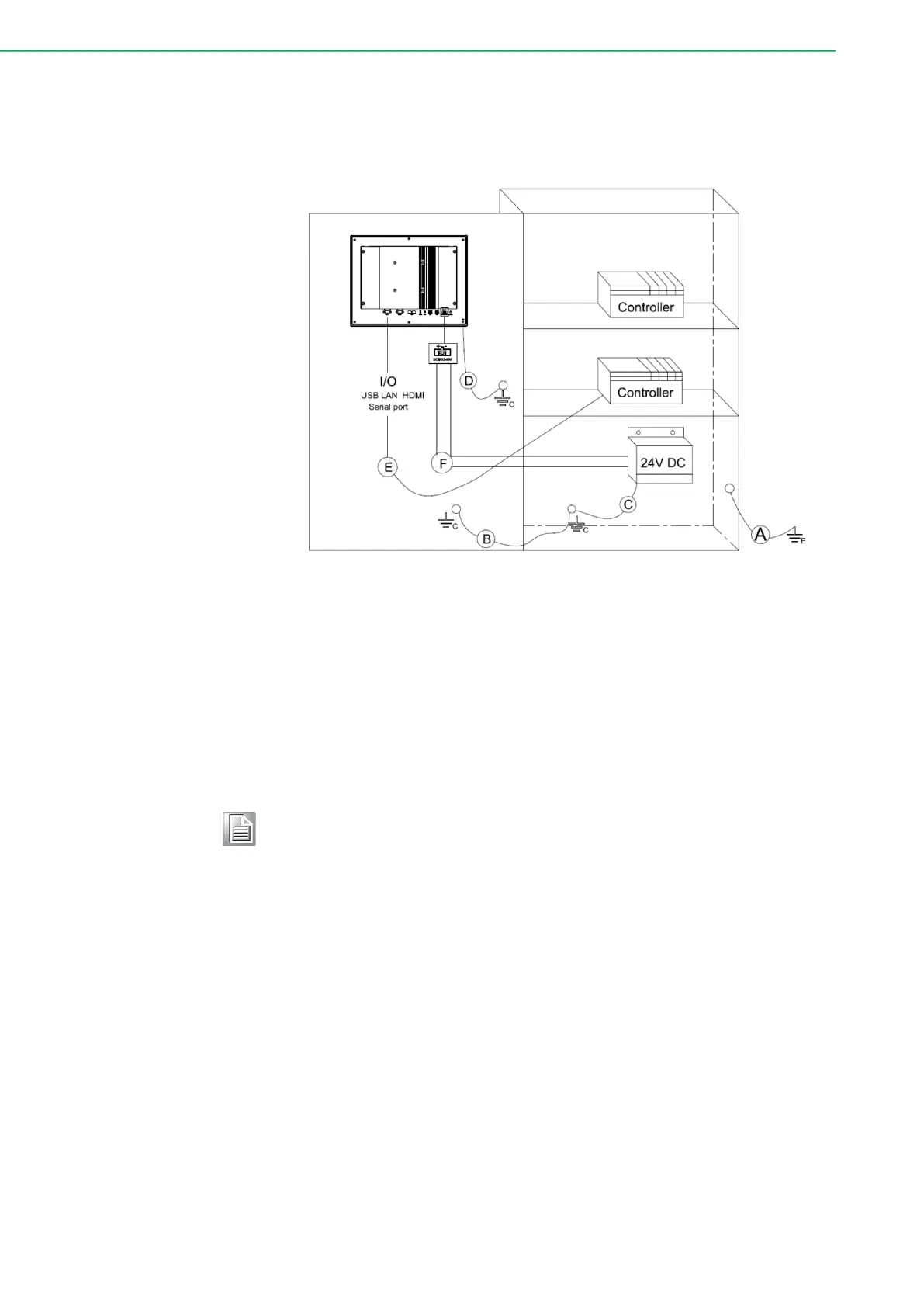

Figure 2.23 System Wiring Cabinet
Step A: Connect the cabinet to the earth/ground.
Step B: Ensure that all cabinets have been grounded together.
Step C: Connect the ground of the power supply to the cabinet.
Step D: Connect the ground pin of PPC system to the cabinet.
Step E: Connect the I/O to the controller if needed.
Step F: Connect the V+ and V- of power supply to PPC system.
Note! The wire of the protective earthing conductor shall be green-and-yellow,
xx AWG/ 0.75mm2 and connecting to earth of building.
Ensure that the voltage of the power source is correct before connecting
the equipment to a power outlet. By means of a power cord connected
to a socket- outlet with earthing connection.
