PPC-310/312/315/321W EHL User Manual 10
2.1 Quick System Tour
Before setting up the panel PC, take a moment to identify the locations of the device
controls, drives, connectors, and ports (as shown in Figure 2.3). When placed
upright, the PPC-310/312/315/321W front panel should appear as shown in Figure
2.1. Since PPC-310/312/315/321W are series models, the following photos in the
manual are PPC-310 examples.

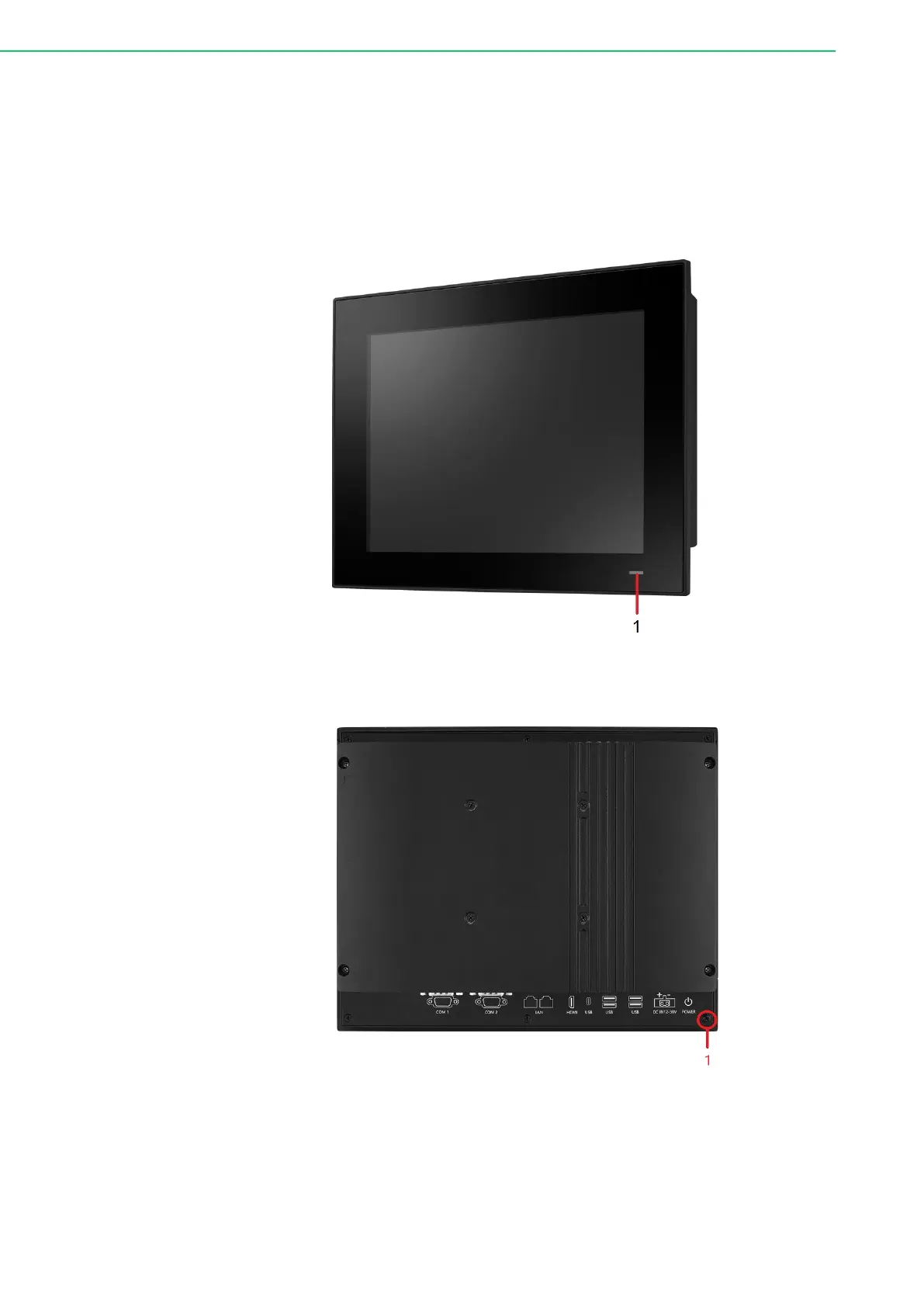

Figure 2.1 Panel PC Front View
1. Power status LED: Off (S5) Orange; Sleep (S3) Orange; On (S0) Blue.
Figure 2.2 Panel PC Rear View
1. GND screw
