PPC-310/312/315/321W EHLUser Manual 2
1.1 Introduction
The Advantech PPC-310/312/315/321W EHL is an all-in-one light panel PC with a
wide format 10.4"/12.1"/15"/21.5" TFT LCD screen. It is powered by an Intel
®
Cele-
ron
®
J6412 processor, PPC-310/312/315/321W EHL to provide good performance,
optimal memory, graphics, and peripheral I/O support in a compact, fanless, embed-
ded system. With a high durability design, PPC-310/312/315/321W EHL adopts a flat
touch screen with IP66 rated front panel in a die-cast AI alloy enclosure. It is an ideal
for MES, processing and general industrial equipment integration.
1.2 Key Features
Robust IP66-rated true-flat color TFT LCD
Ultra-thin fanless design with solid aluminum alloy enclosure
Intel
®
Celeron
®
J6412 quad-core, 2.0 GHz processor CPU with fanless design
Supports E-Key for wireless module
Supports expansion via M.2 slot
Supports Windows Embedded Linux and Android OS
Supports VESA 75 x 75 mounting holes
Dual 2.5GBASE-T Ethernet Supports Time-Sensitive Network (TSN) technology
1.3 Front Panel
The PPC-310/312/315/321W EHL front panel is a true-flat color TFT LCD touch-
screen with Projected Capacitive Multi-Touch. The front panel is IP66 rated for dust
and water tolerance (Figure 1.1).
Note: The examples provided in this manual are of the PPC-310 model.

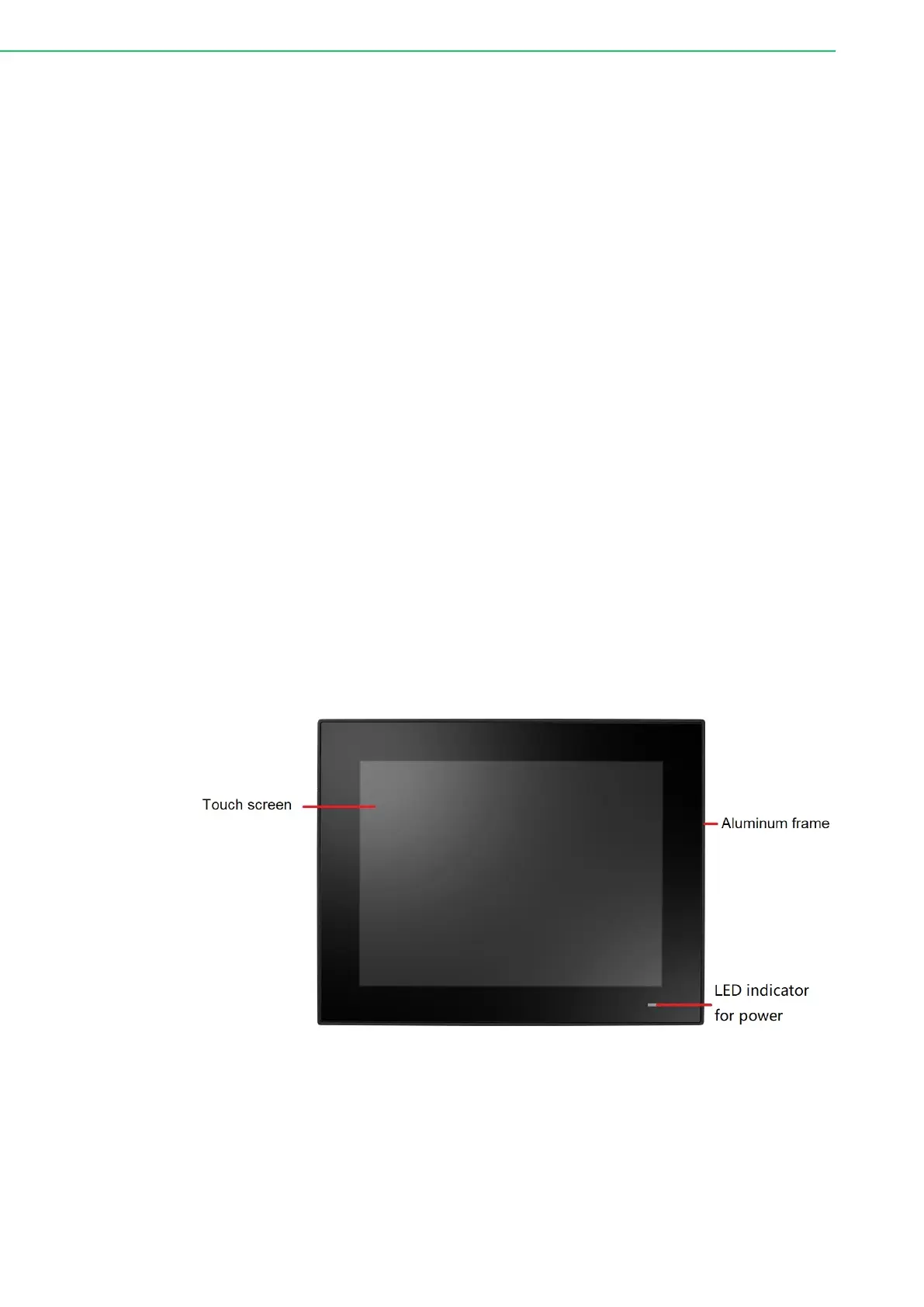

Figure 1.1 Front Panel
Power status LED: Off (S5) Orange; Sleep (S3) Orange; On (S0) Blue.
