11 PPC-3100S/3120S/3150S/3210SW
Chapter 2 System Installation and Setup

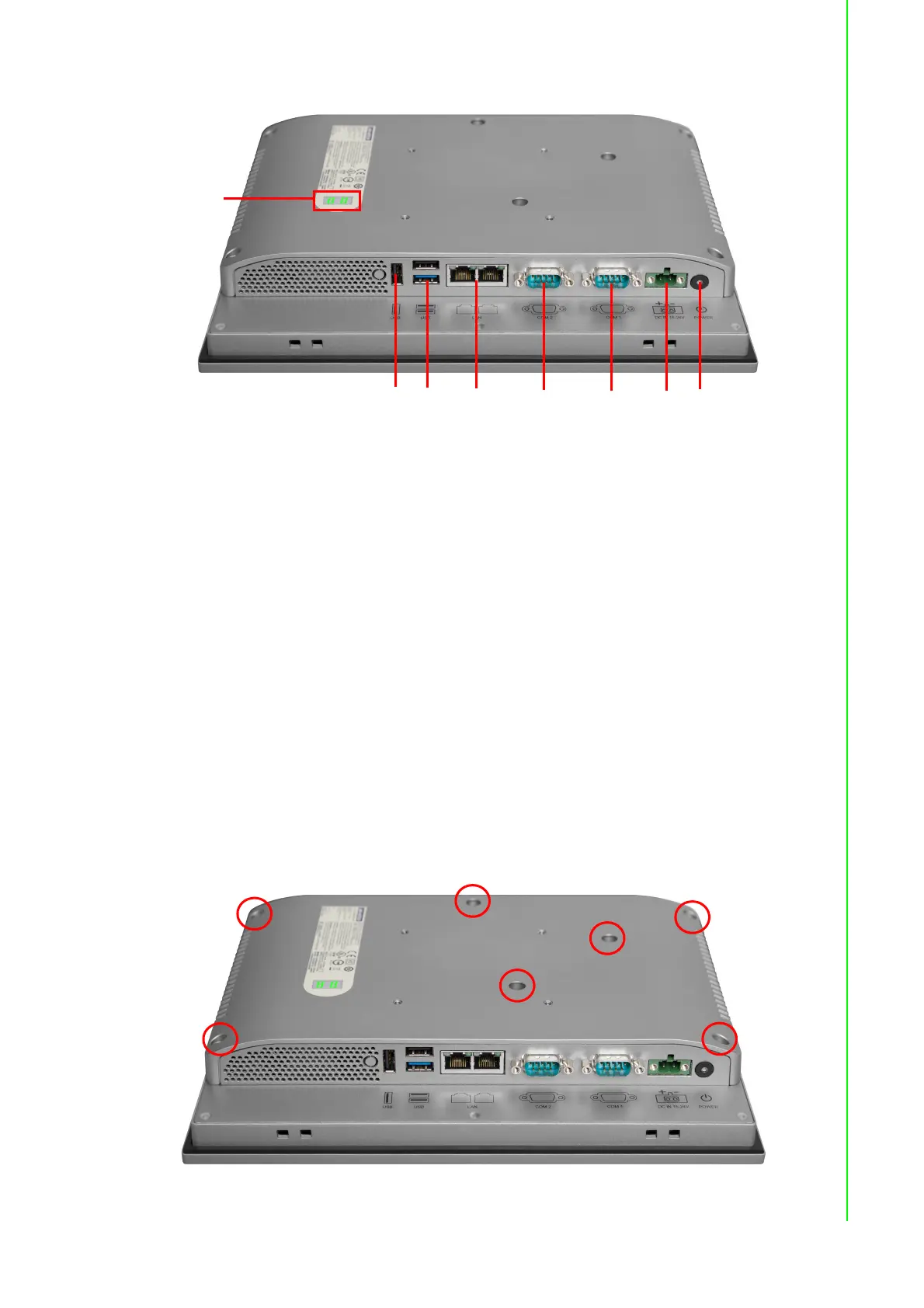

Figure 2.3 Panel PC underside with I/O
A: Power button E: 2 x Gigabit Ethernet ports
B: DC In F: 1 x USB 3.0 and 1 x USB 2.0
C: COM1(RS-232) G: 1 x USB 2.0 (N/A for projected capacitive models)
D: COM2(RS-232/422/485) H: E-Eye display
2.2 Installation Procedures
When installing system hardware, adhere to the following order:
1. Install the memory card
2. Install SATA HDD or mSATA storage devices
3. Install peripheral devices
4. Mount the panel PC
5. Configure the system
2.2.1 Memory Card Installation
1. Remove the seven retention screws and disconnect the E-Eye display cable
from the main board to remove the rear cover (see Figures 2.4 and 2.5).
Figure 2.4 Retention screws on rear cover
H
G F E D C B A
