PPC-3060S User Manual 8
2.1 Quick Start Guide
Before you start to set up the panel PC, take a moment to get familiar with the loca-
tions and purposes of the controls, drives, connectors and ports, which are illustrated
in the figures below.
When you place the panel PC upright on the desktop, its front panel appears as
shown in Figure 2.1, Frontside View, Figure 2.2 Backside View, and Figure 2.3 I/O
Connectors.

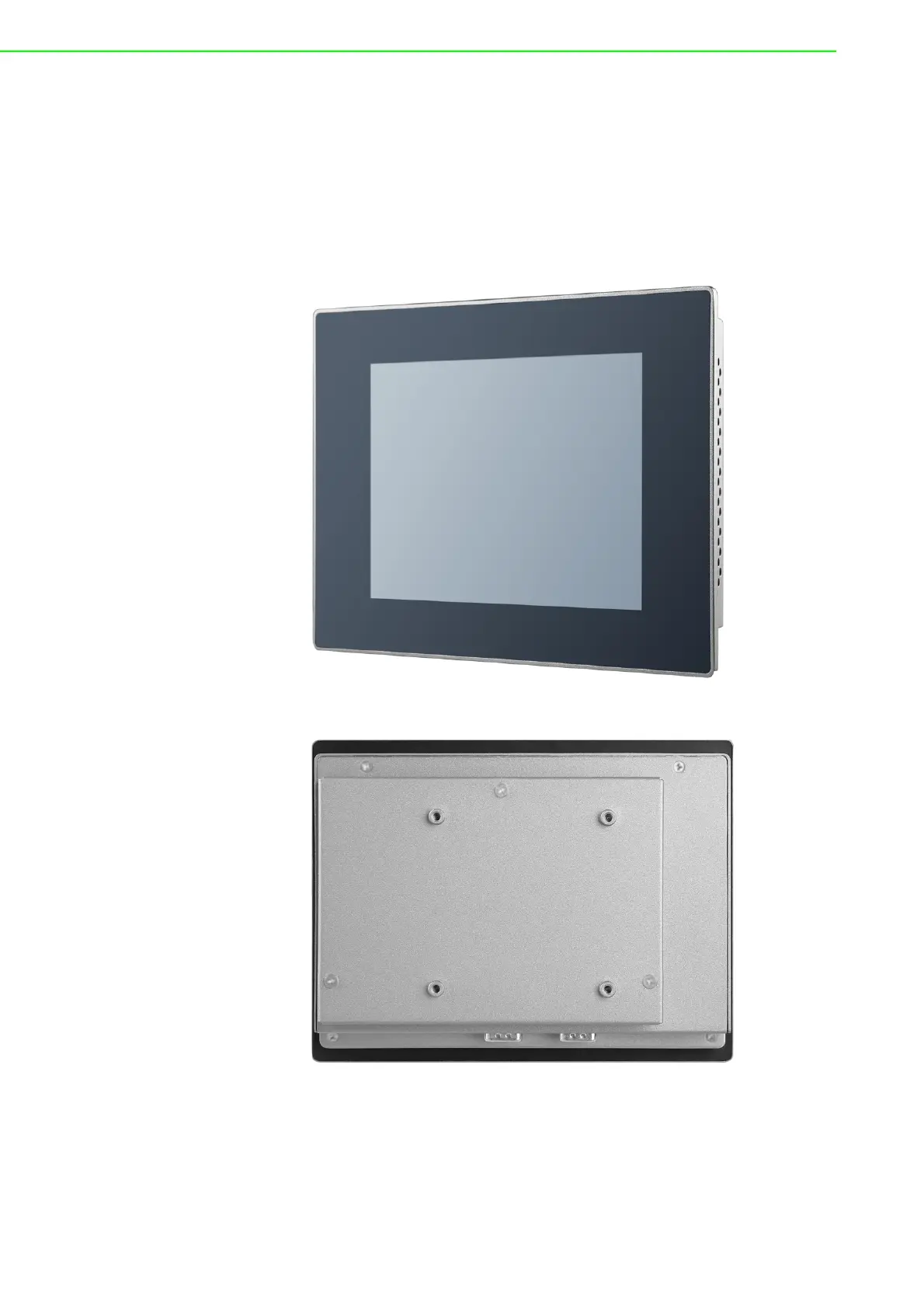

Figure 2.1 Frontside View
Figure 2.2 Backside View
