POC-821 Series User Manual 14
2.2.3 Connecting the ground pin
1. When the system is ready, locate the Equipotential Terminal on the rear side of
the POC-821. An Equipotential Terminal provides an optional connection to a
hospital ground/earth system.

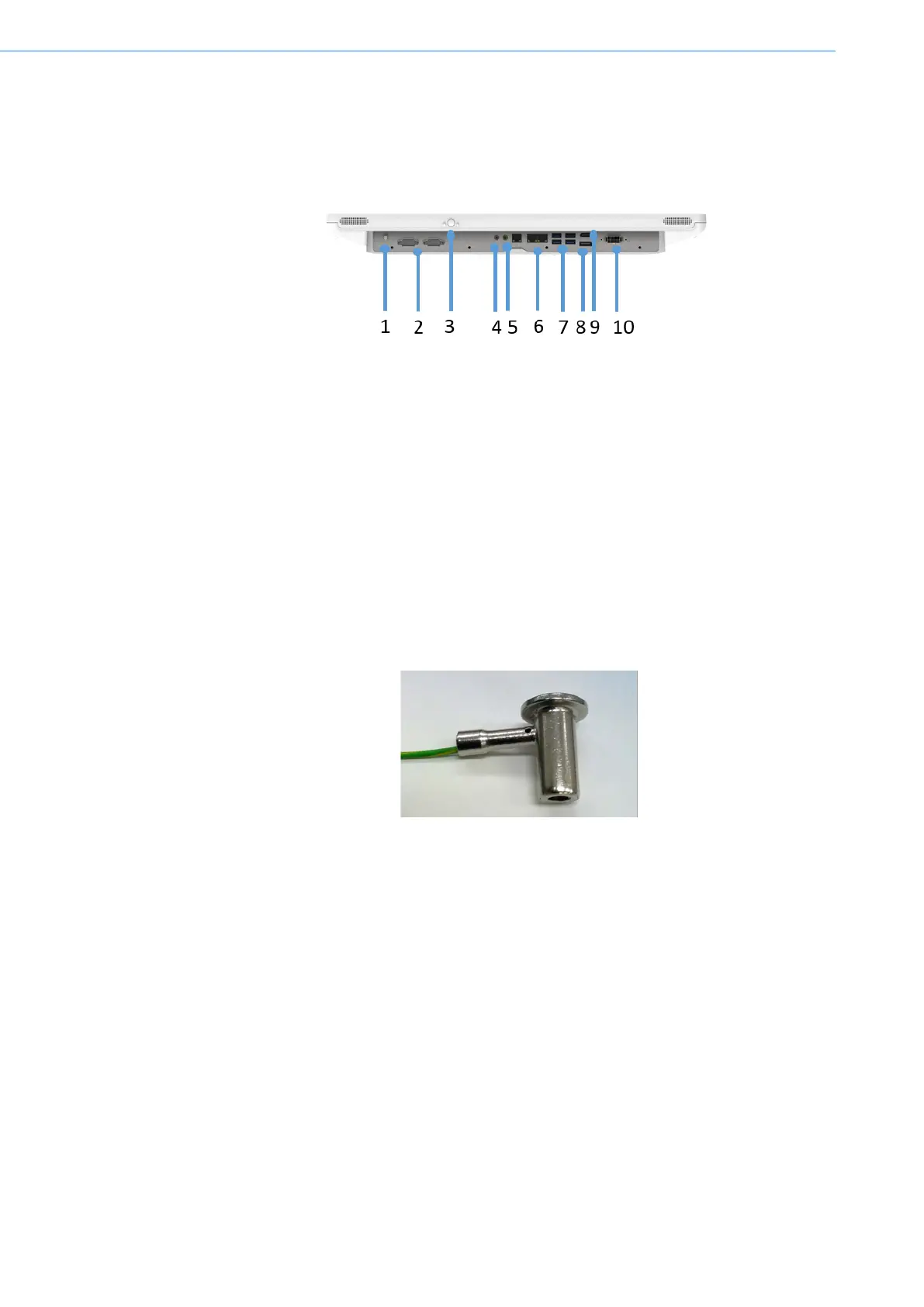

Figure 2.5 POC-821 Series Bottom Panel
1. Equipotential Terminal Pin
2. 2 x COM ports (RS232)
3. Power button
4. Line-out
5. Mic-In
6. 3 x LAN ports
7. 4 x USB 3.0
8. DisplayPort
9. HDMI
10. DC-In
2. Connect the grounding cable and the other terminal link to the hospital ground/
earth system.
Figure 2.6 Grounding Cable with Connector
3. Grounding cable plug with the POC-821 Series Equipotential Terminal (See Fig-
ure 2.6).
2.3 Running the BIOS Setup Program
Your POC-821 was likely set up and configured by your dealer prior to delivery. How-
ever, you may still need to use the BIOS (Basic Input-Output System) setup program
to modify system configuration information, such as the current date and time or the
type of hard drive installed.
The setup program is stored in read-only memory and can be accessed by pressing
the "F2" or "Del" key on your keyboard immediately after turning on or resetting the
panel PC.
Any settings you make using the setup program are saved in a special area of mem-
ory called CMOS RAM. This memory is backed up by a battery to ensure that the set-
tings are not lost when you power off or reset the system. When you power on the
device, the system reads the settings stored in CMOS RAM and compares them to
