POC-621-12 Series User Manual 10
2.1 A Quick Tour of the POC-621-12 Series
Before you start to set up the POC-621-12 Series, take a moment to become familiar
with the locations and purposes of the controls, drives, connections, and ports, which
are illustrated in the figures below.
When you place the POC-621-12 series upright on the desktop, its front panel
appears as shown in Figure 2.1.
2.1.1 Front View

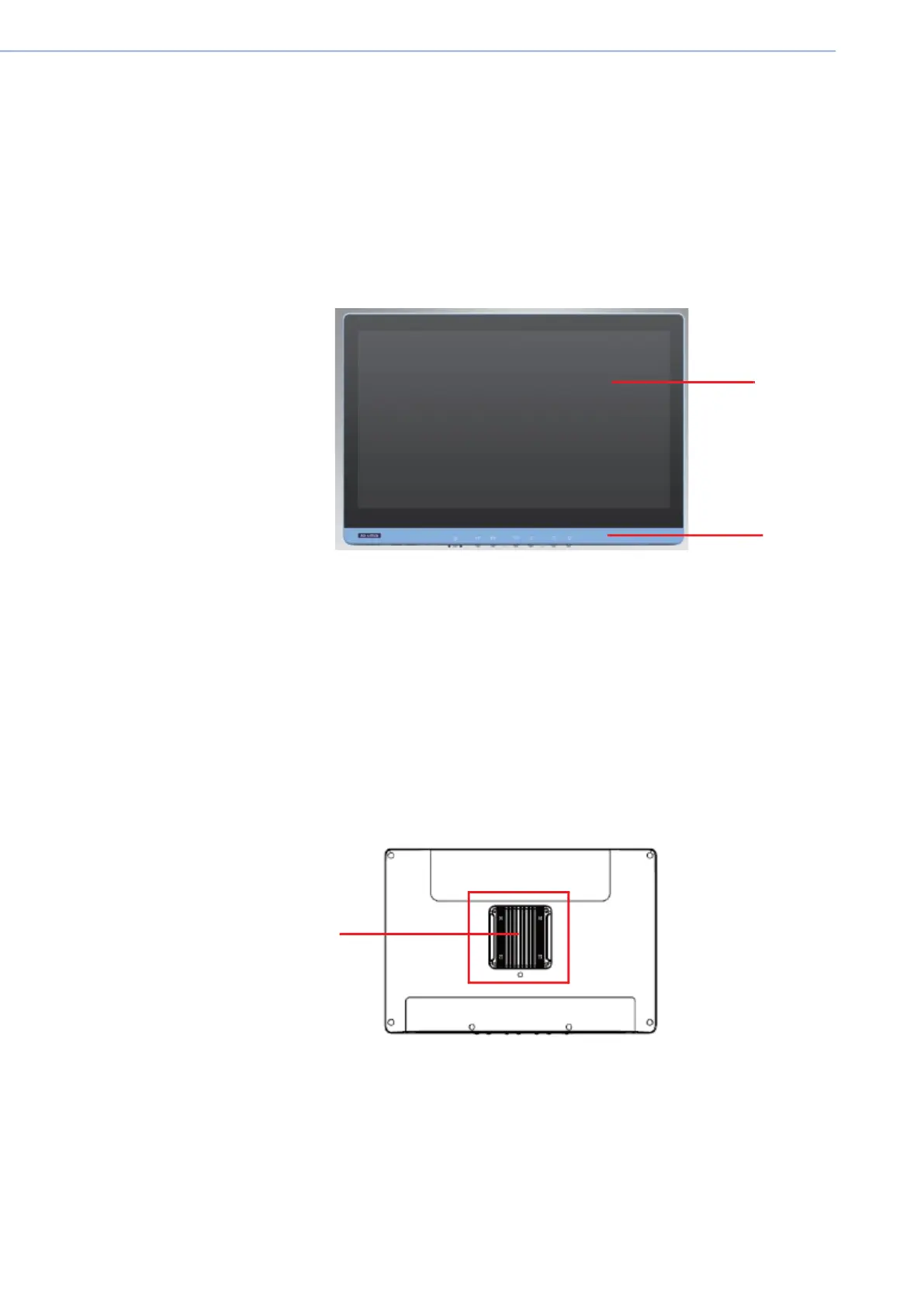

Figure 2.1 Front View of the Point-of-Care Terminal
Front Bezel view
(1) LCD panel with touchscreen module
(2) Power symbol w/ indicator light
2.1.2 Rear View
When you turn the Point-of-Care Terminal around and look at its rear cover, the
sunken I/O section is at the bottom of the panel PC, as shown in Figure 2.2 with a
zoomed-in rear view in Figure 2.3. (The I/O section includes various I/O ports, includ-
ing serial ports, HDMI port, the Ethernet port, USB ports, and so on.)
Figure 2.2 Rear View of the Point-of-Care Terminal
(1)
(2)
(1)
