PCM-9365 Startup Manual 3
Jumpers and Connectors (Cont.)

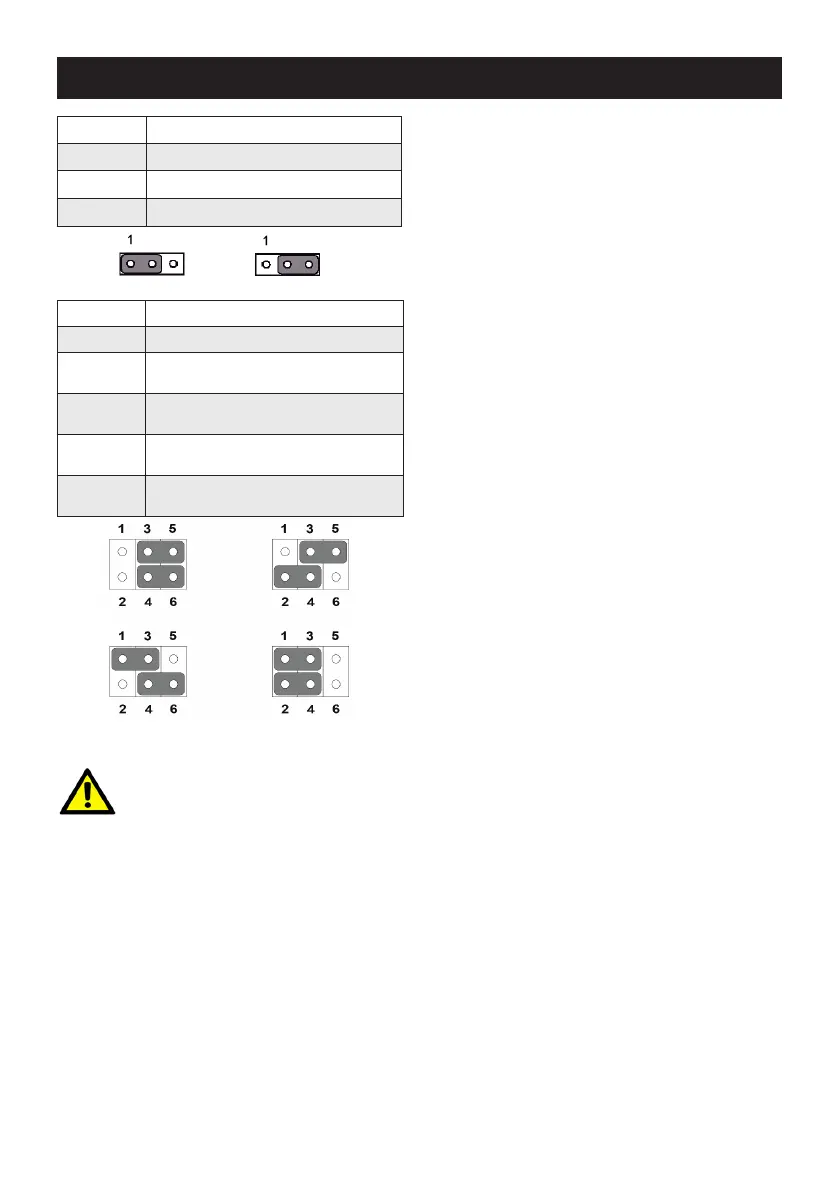

J6
Clear CMOS
Setting Function
1-2*
Normal
2-3 Clear CMOS
J7 LVDS JEIDA/VESA Selection
Setting Function
1-3 LVDS1 Pull-high to +3.3V (JEIDA or
VESA base on panel definition)
3-5* LVDS1 Pull-low to GND (JEIDA or VESA
base on panel definition)
2-4 LVDS2 Pull-high to +3.3V (JEIDA or
VESA base on panel definition)
4-6* LVDS2 Pull-low to GND (JEIDA or VESA
base on panel definition)
Caution! The computer is provided with a battery-powered
real-time clock circuit. There is a danger of explo
sion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended
by the manufacturer. Discard used batteries ac-
cording to manufacturer’s instructions.
