PCM-3718 Series User Manual 26
If the signal source has one side connected to a local ground, the signal
source ground and PCM-3718’s ground will not be at exactly the same
voltage, as they are connected through the ground return of the equipment
and building wiring. The difference between the ground voltages form a
common-mode voltage.
To avoid the ground loop noise effect caused by common-mode voltages,
connect the signal ground to the LOW input. Do not connect the LOW
input to the PCM-3718’s ground directly. In some cases you may also
need a wire connection between the PCM-3718’s ground and the signal

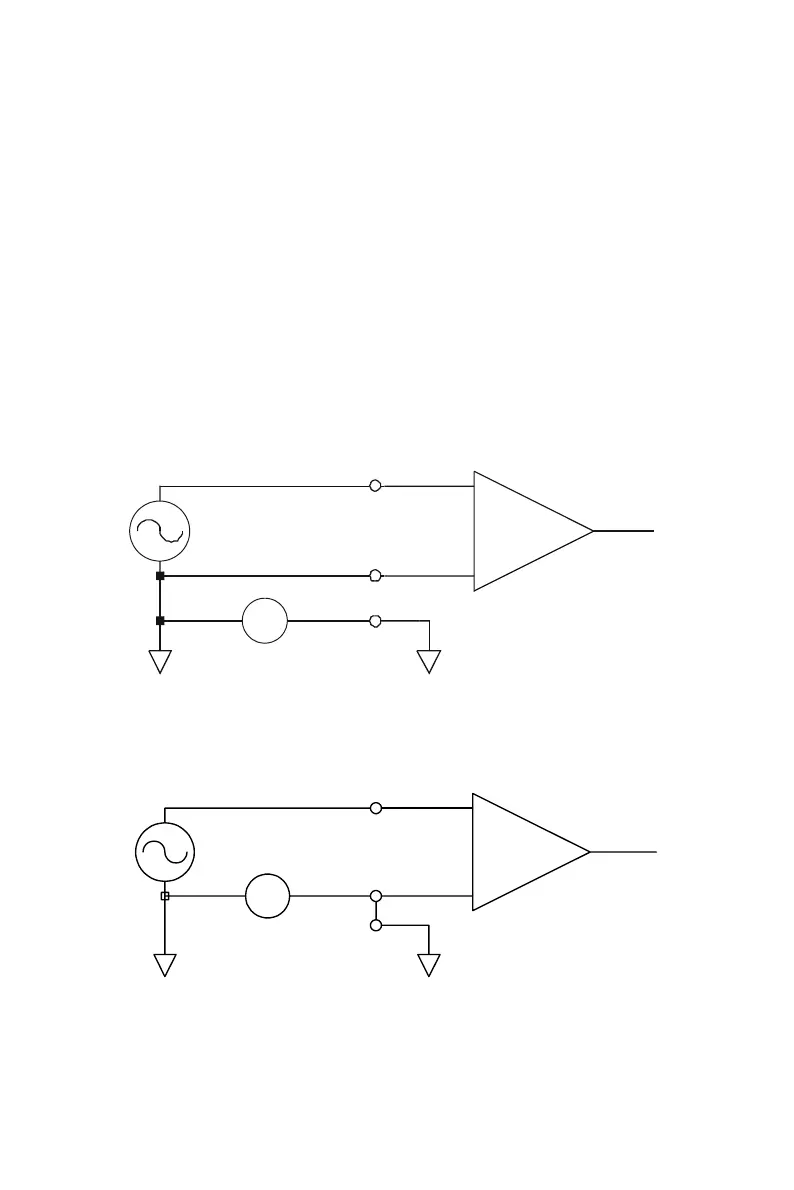

source ground for better grounding. The following two diagrams show
correct and incorrect connections for a differential input with local
ground.
Correct Connection
Incorrect Connection
GND
+
Vs
-
+
Vi n
-
+
-
HI GH
LOW
Vi n = V s
Vcm
+
_
GND
+
Vs
-
+
Vi n
-
+
-
HI
G
H
LOW
Vi n =Vs+Vc
m
Vcm
+
_
