PCM-3718 Series User Manual 24
Chapter 3 Signal Connections
3.1 Analog Output Connection (PCM-3718HO)
PCM-3718HO provides one D/A output channel. You can use the internal
precision -5 V or -10 V reference to generate 0 to +5 V or 0 to +10 V D/A
output. Use an external reference for other D/A output ranges. The maxi-
mum reference input voltage is ±10 V and maximum output scaling is
±10 V. The loading current for D/A outputs should not exceed 5 mA.

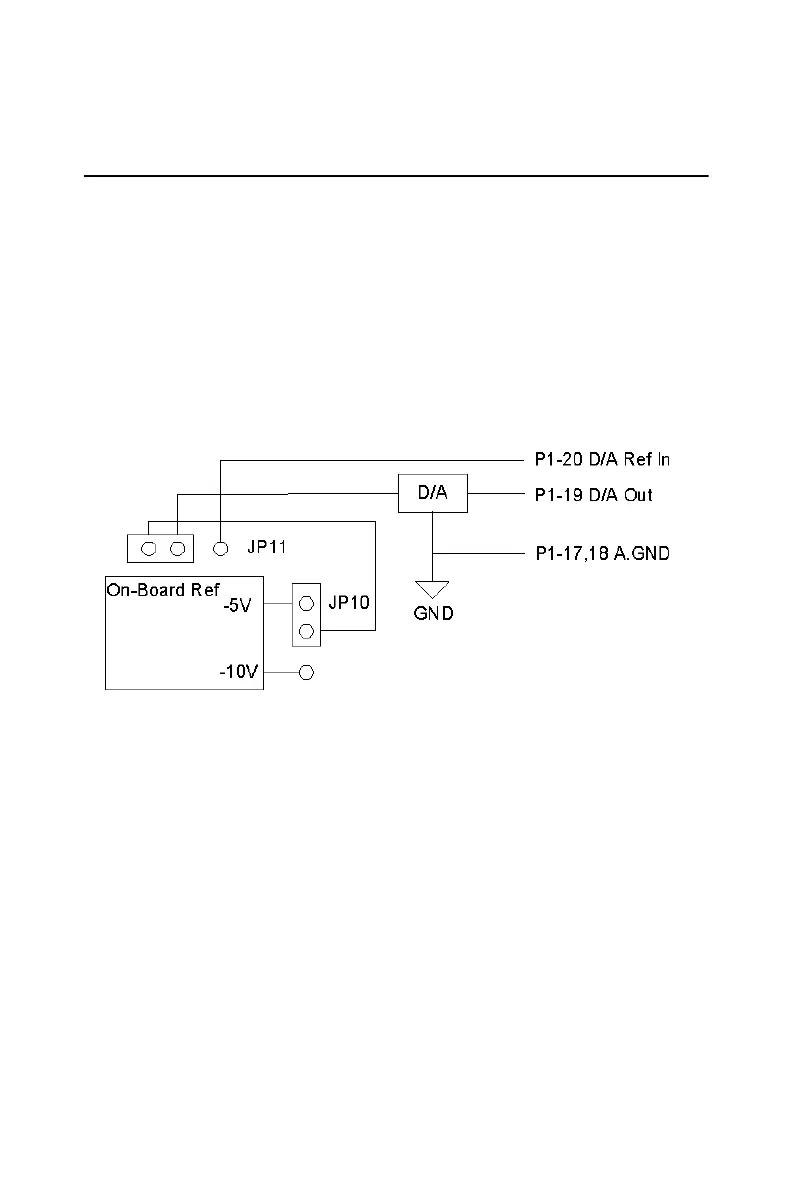

Connector P1 provides D/A signals. Important D/A signal connections
such as input reference, D/A outputs and analog ground appear below.
