PCIE-1816_1816H User Manual 10

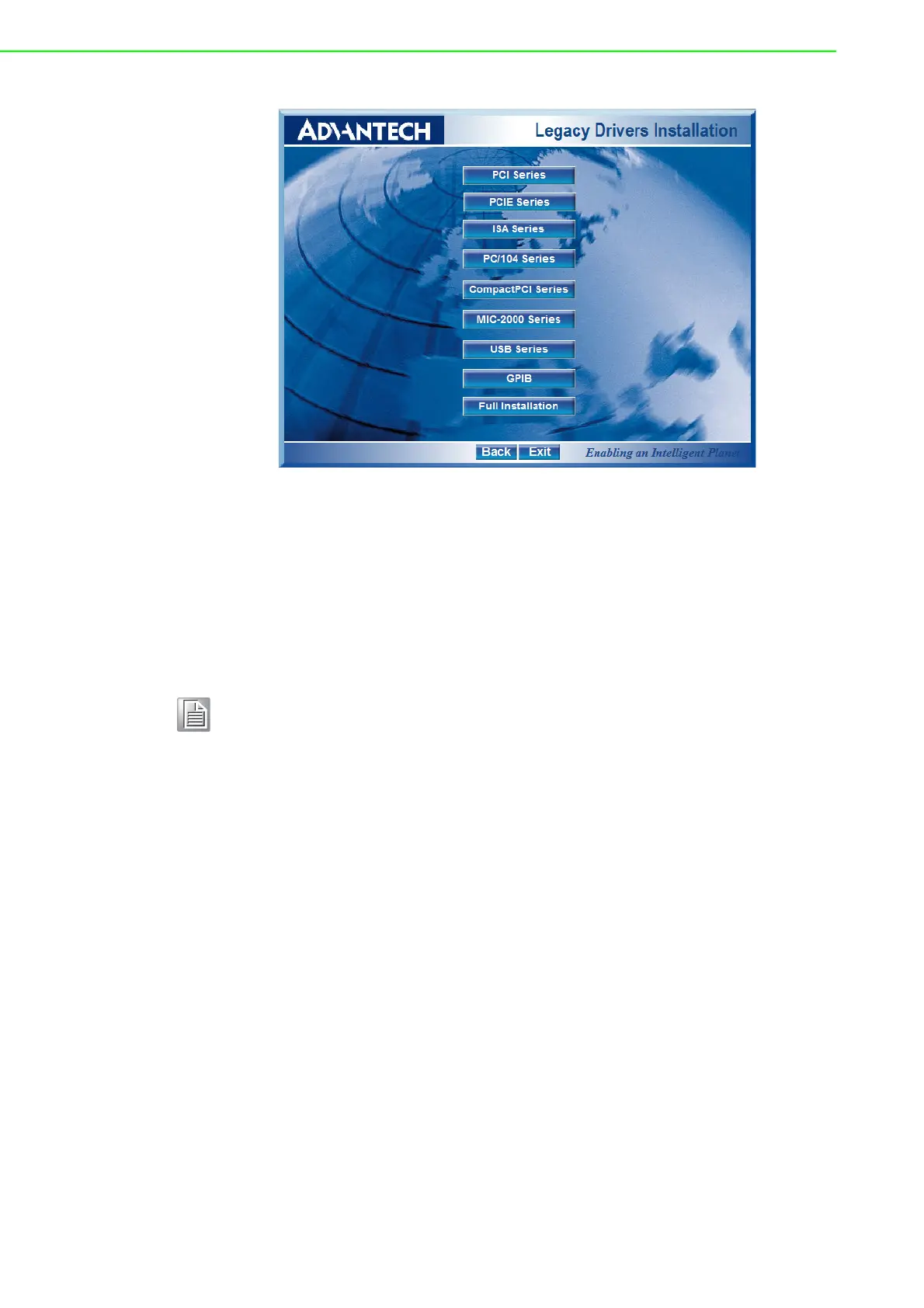

Figure 2.2 Different Options for Driver Setup
For further information on driver-related issues, an online version of the DAQNavi
SDK Manual is available by accessing the following path:
Start/Programs/Advantech Automation/DAQNavi/DAQNavi Manuals/DAQNavi SDK
Manual
2.3 Hardware Installation
After the Device Drivers installation is completed you can install the PCIE-1816/
1816H card on your computer. However, it is suggested that you refer to the com-
puter’s user manual or related documentation if you have any doubts. Please follow
the steps below to install the card onto your system.
1. Turn off your computer and unplug the power cord and cables. TURN OFF your
computer before installing or removing any components on the computer.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your computer.
4. Touch the metal part on the surface of your computer to neutralize the static
electricity that might be on your body.
5. Insert the PCIE-1816/1816H card into the PCI Express interface. Hold the card
only by its edges and carefully align it with the slot. Insert the card firmly into
place. Use of excessive force must be avoided; otherwise, the card might be
damaged.
6. Connect appropriate accessories (68-pin SCSI Shielded Cable, wiring termi-
nals, etc. if necessary) to the card.
7. Replace the cover of your computer chassis. Re-connect the cables you
removed in step 2.
8. Plug in the power cord and turn on the computer.
Note! Make sure you have installed the driver first before you install the card (refer to
2.2 Driver Installation)
