7 PCIE-1763AH/DH User Manual
Chapter 2 Installation
Setting the Time to Reset Relay Outputs
Certain users may want the ability to clear each relay output when the system issues
a reset signal on the PCIE bus, or to clear relays as part of the system power-on pro-
cess. The PCIE-1763 card satisfies both these needs with the provision of jumper
JP2.
Depending on the application, this capability may allow relay outputs to be set as
“OFF” without a complete shutdown of processes controlled by the card.
A complete loss of power to the chip will clear the chip memory. Therefore, regard-
less of how JP2 is configured, if the power to the PCIE-1763 card is disconnected,
the relay initial power-on state will be “OFF” (NC or NO, depending on the user’s set-
tings).
Board ID (SW1)
The PCIE-1763 card features a built-in DIP switch (SW1) that is used to define each
card’s board ID. When multiple cards are installed on the same chassis, the board ID
switch is useful for identifying each card by its device number. The default Board ID
value is 0. If you need to adjust it to another value, please refer to Table 2.2 for set-
ting SW1.
*The default setting is 0

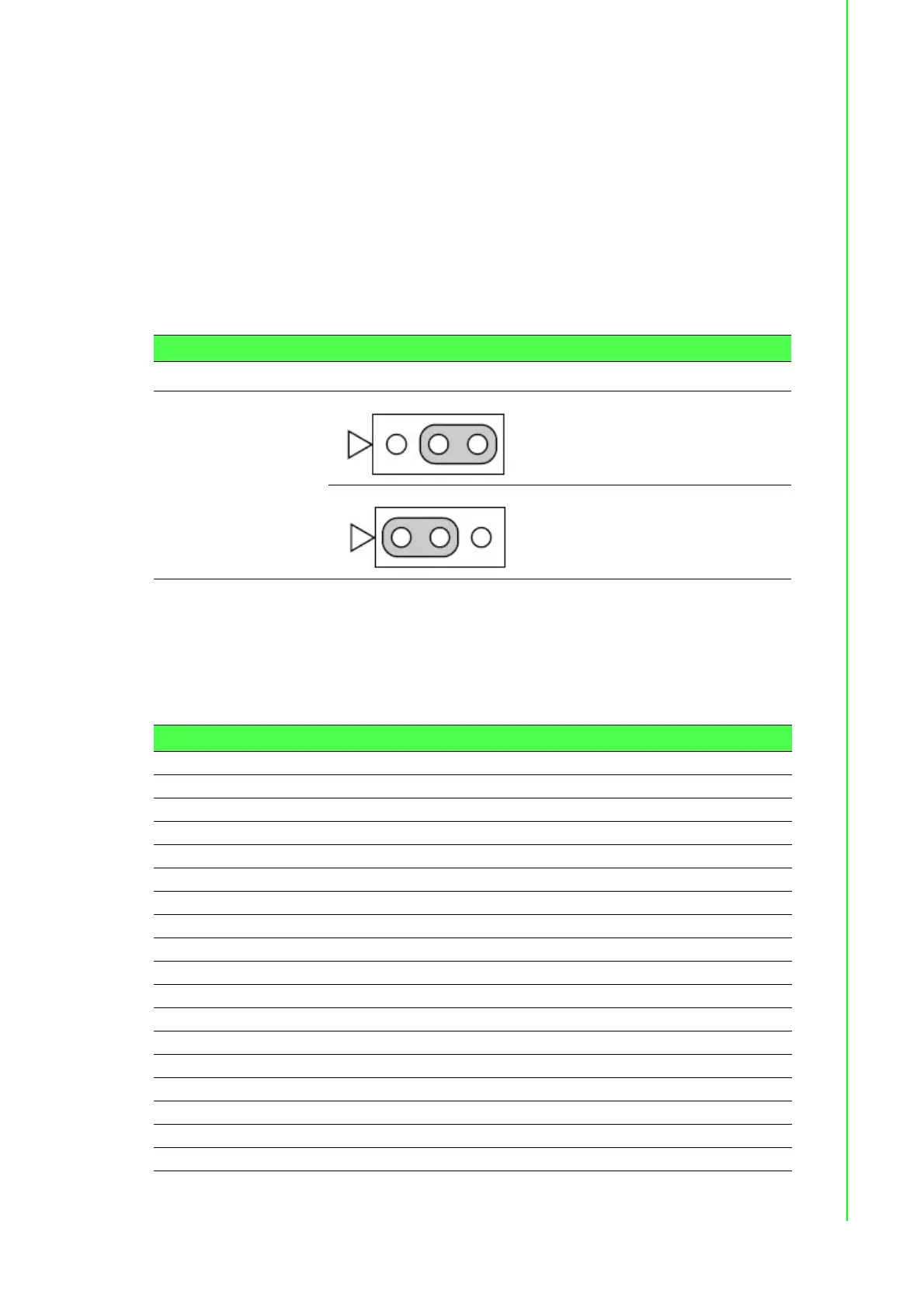

Table 2.1: Summary of Jumper Settings
Names of Jumpers Function Description
JP2
Do not retain the last status after hot
reset (default)
Retain the last status after hot reset
Table 2.2: Board ID Settings (SW1)
SW1 Position 1 Position 2 Position 3 Position 4
Board ID ID3 ID2 ID1 ID0
0 ONONON ON
1 ONONON OFF
2ONONOFF ON
3ONONOFF OFF
4ONOFFON ON
5 ON OFF ON OFF
6ONOFFOFF ON
7 ON OFF OFF OFF
8 OFF ON ON ON
9 OFF ON ON OFF
10 OFF ON OFF ON
11 OFF ON OFF OFF
12 OFF OFF ON ON
13 OFF OFF ON OFF
14 OFF OFF OFF ON
15 OFF OFF OFF OFF
