13 PCIE-1753 User Manual
Chapter 3 Signal Connections
3.2.1 Keep Last Status (JP1)
Jumper JP1 gives the PCIE-1753 a new and valuable function. With JP1 enabled,
PCIE-1753 “memorizes” all I/O port settings and output values, and, in the event of a
“hot” reset, the settings and output values present at the port just prior to reset are
restored to each port following the reset. This feature applies to both ports set by soft-
ware, and to ports configured as output ports via jumper. Depending on the applica-
tion, this function may allow a card to be reset without requiring a complete shutdown
of processes controlled by the card (since port values are left unchanged and are
interrupted only momentarily). Complete loss of power to the card clears chip mem-
ory. Thus, even if JP1 is enabled, the card’s power-on state will return to the default
state or the state of an output port with voltage low output (for jumper-set ports).
When jumper JP1 is disabled, power-off or reset results in ports returning to their
default state (for software-set ports) or returning to the state of the output port with
low voltage output (for jumper-set ports).
*Default setting.
3.2.2 Port Direction Settings (JP2~JP25)

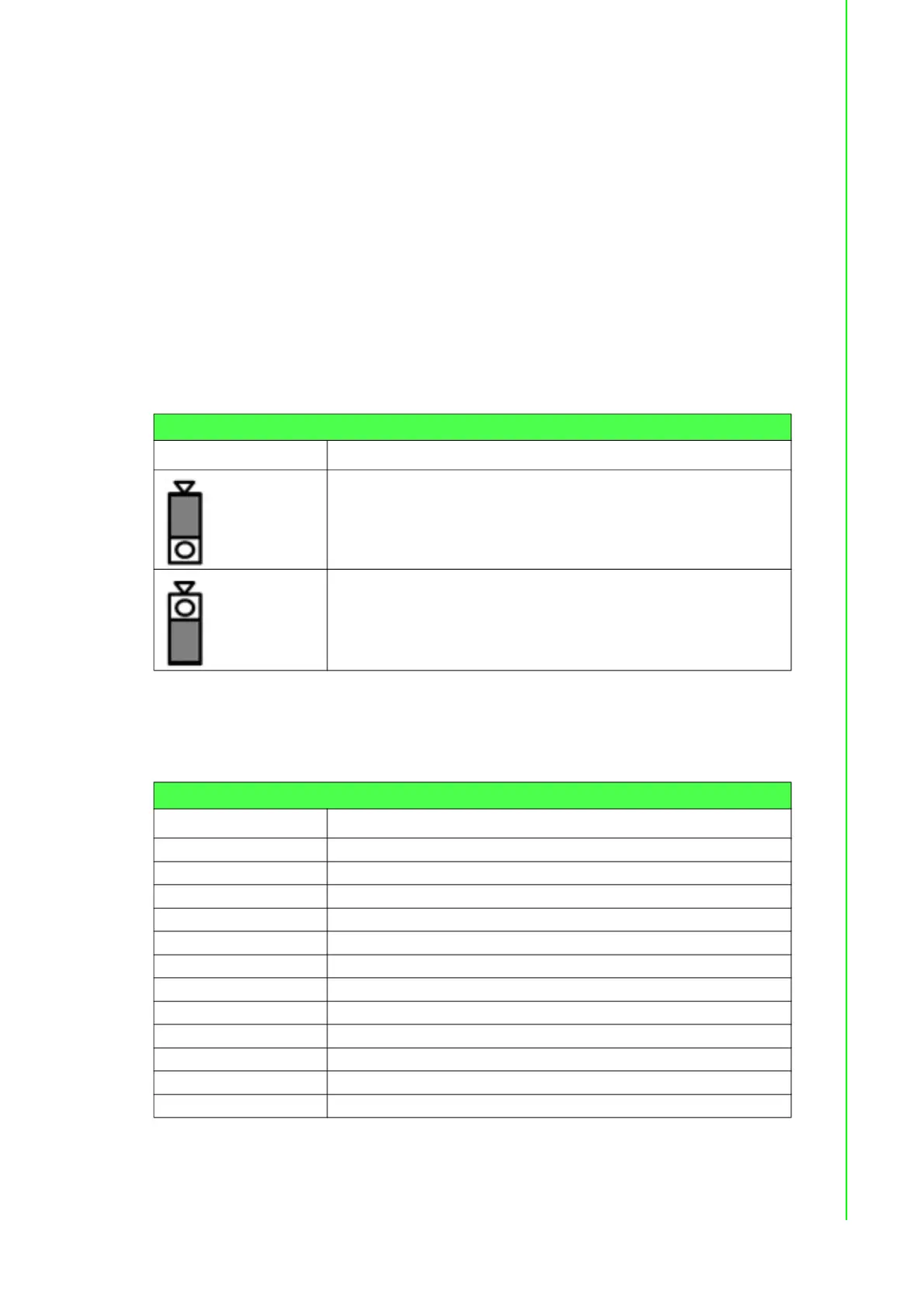

Table 3.1: Power-On Configuration (JP1)
Jumper Setting Description
Keep the last status after a hot reset.
Reset to default status after a hot reset.*
Table 3.2: DI/O Channel Direction Configuration (JP2 ~ JP25)
Jumpers Controlled DI/O channels
JP2, JP3 Port 0 DI/O 0 ~ DI/O 7
JP4, JP5 Port 1 DI/O 0 ~ DI/O 7
JP6, JP7 Port 2 DI/O 0 ~ DI/O 7
JP8, JP9 Port 3 DI/O 0 ~ DI/O 7
JP10, JP11 Port 4 DI/O 0 ~ DI/O 7
JP12, JP13 Port 5 DI/O 0 ~ DI/O 7
JP14, JP15 Port 6 DI/O 0 ~ DI/O 7
JP16, JP17 Port 7 DI/O 0 ~ DI/O 7
JP18, JP19 Port 8 DI/O 0 ~ DI/O 7
JP20, JP21 Port 9 DI/O 0 ~ DI/O 7
JP22, JP23 Port 10 DI/O 0 ~ DI/O 7
JP24, JP25 Port 11 DI/O 0 ~ DI/O 7
