The StreamSync Acquisition Engine The StreamSync Acquisition Engine World
Version C.1 BitFlow, Inc. CXP-2-3
Acquisition can be aborted on any X, Y, Z, or V boundary. The choice of boundary
depends on whether one wants to abort immediate, which can cause acquisition of
incomplete frames, or one wants to stop at the end of the line/frame/volume, which
provides a more graceful end to acquisition.
It’s easiest to think of the Acquisition Engine level in terms of a state machine. When a
window is “opened” the run level moves down to the next state below. When a win-
dow “closes”, the run level moves to the state above. If the window at the top level
closes, the run level goes to idle. Figure 2-2 illustrates this type of state machine:

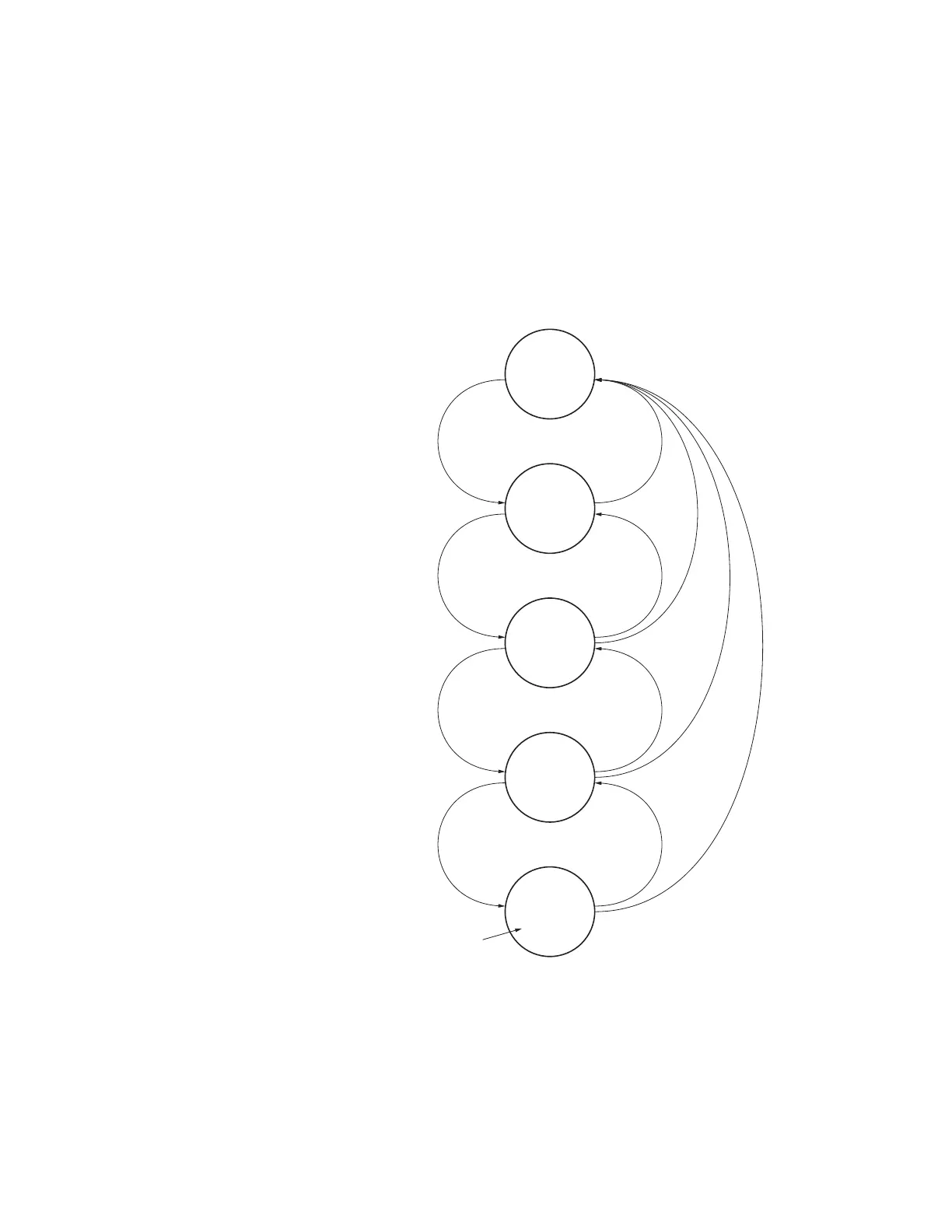

Figure 2-2 Acquisition Engine Run Level
The action that causes a window to be opened or closed depends on the type of win-
dow. Some windows can be opened in more than one way. For example the Y win-
dow can be opened when a Start Of Frame (SOF) packet (or FVAL from a CL camera)
is sent from the camera, or it can be opened by a trigger (all SOF packets are ignored
Idle
V Window
Hypervolume
Z Window
Volume
Y Window
Frame
X Window
Line
AE run level set
to Run.
V_SIZE Volumes
or Abort V
Z_SIZE Frames
or Trigger
Y_SIZE Lines
or Trigger
X_SIZE Pixels
Immediate or
Trigger
Immediate or
Trigger or SOF/FVAL
Immediate or
SOL/LVAL
Abort Y
Abort X
Abort Z
Pixels are acquired here
