PCI-1780U User Manual 2
1.1 Product Overview

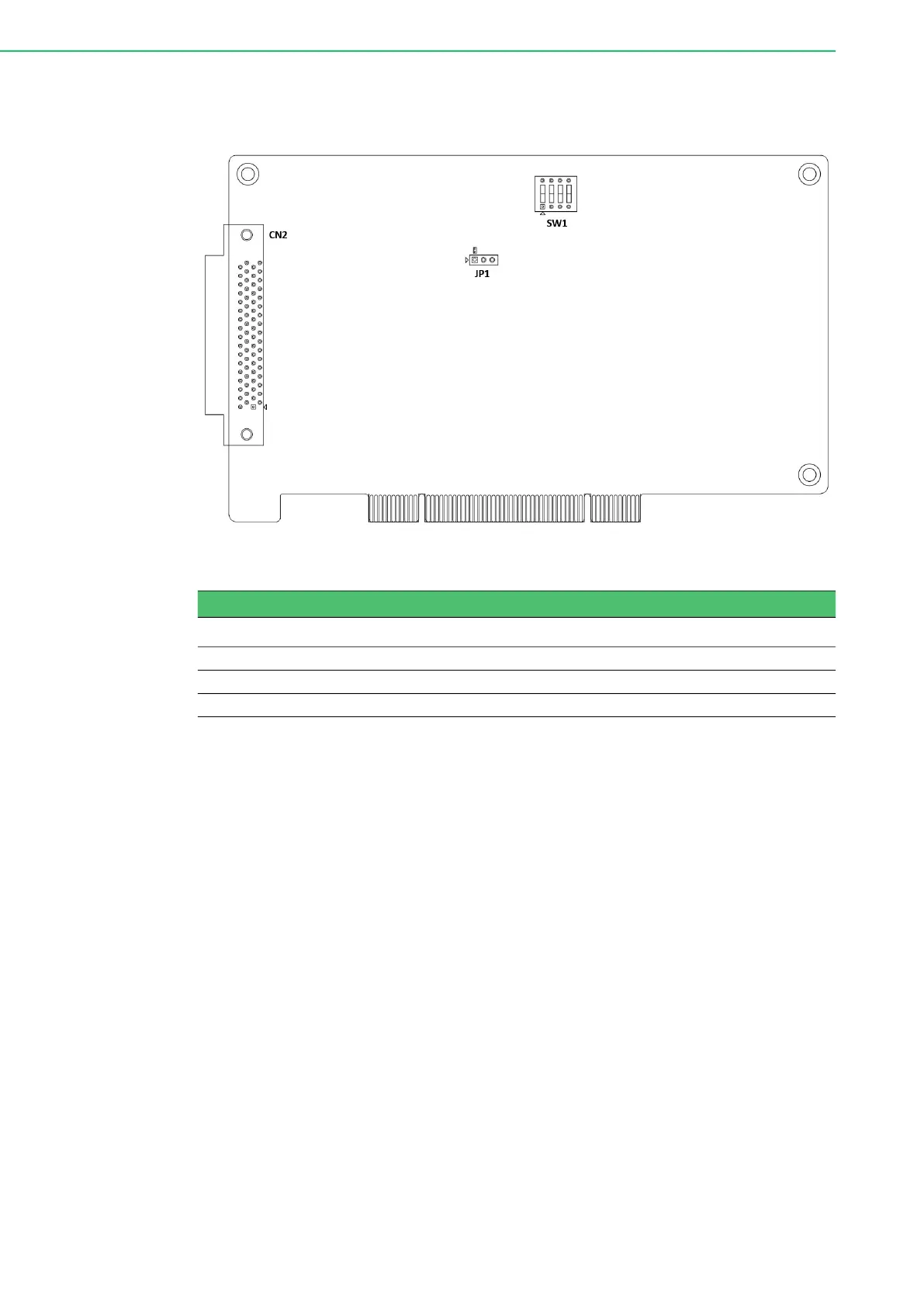

Figure 1.1 Card Layout
1.2 Products Features
1.2.1 Board ID
A board ID can be assigned through the onboard slide switch for the device. The
board ID value in the device description of the software is used to map the device in
the software to the actual hardware device. Board ID is useful when there are multi-
ple hardware devices with the same model name in the system. Without the board
ID, user cannot recognize which device in the software that the hardware device is
related to.
When configured as 0, the board ID is automatically assigned by the device driver
software. When configured as value other than 0, the configured value is used. Do
not configure the same value (except for 0) for hardware devices with the same
model name. Refer to the device specifications for the configuration of the board ID.
If changed, the new board ID value takes effect only after cold resetting the device.
Table 1.1: List of connectors and switches
Component Function
SW1 Board ID
CN2 SCSI-68Pin(F) Connector
JP1 Power-on Configuration
