PCI-1780UUser Manual 28
The output can be gated. If counter gate is high, pulses are output normally. On the
other hand, if counter gate is low, output is disabled. This is shown in Figure 3. 19.

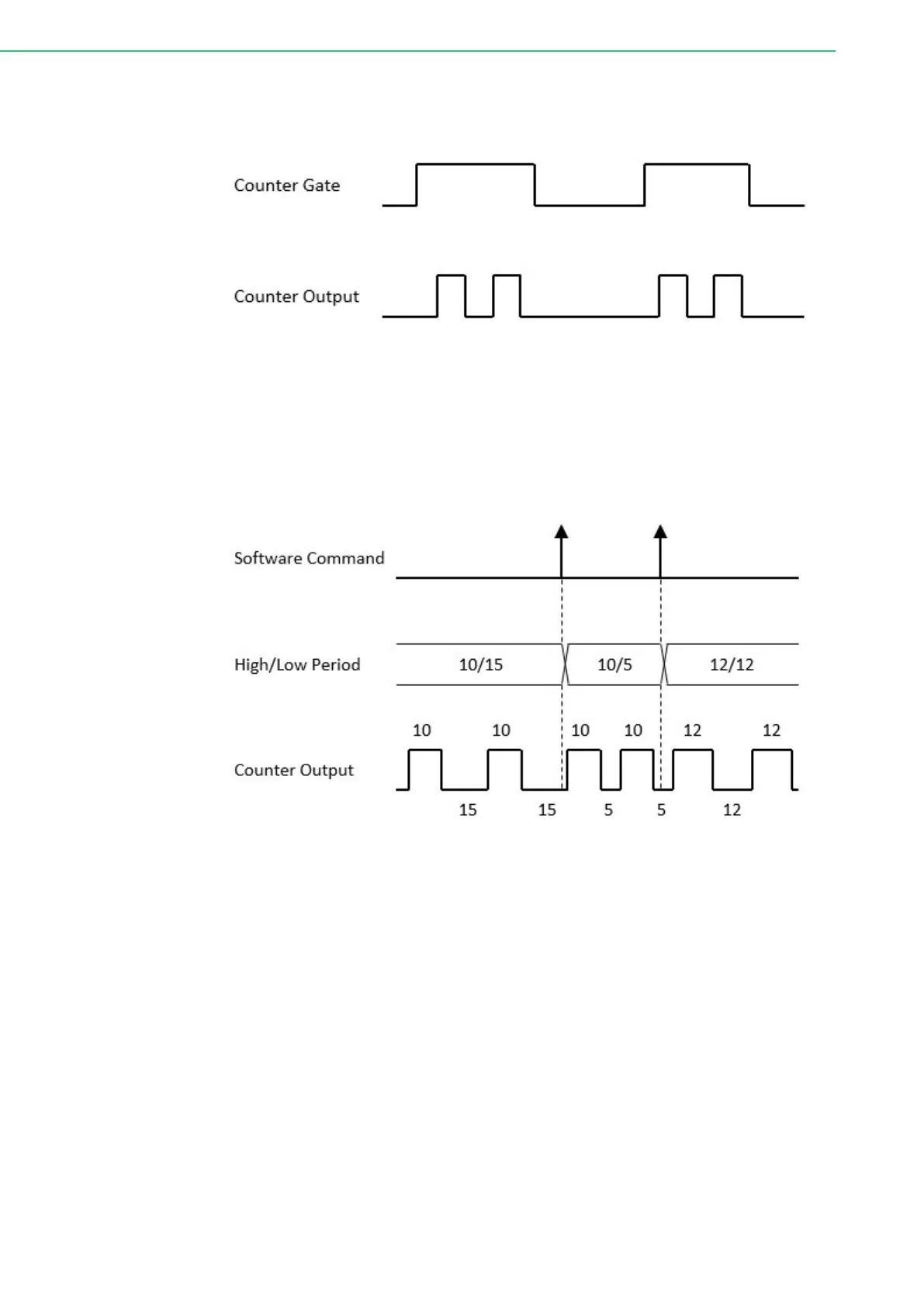

Figure 3.19 Gated pulse width modulation output
Static (Software-Timed) PWM Output
With static PWM output, the software controls the time of updating output pulse
width, which is thus also called software-timed timer/pulse. Whenever the software
sends an update command, the width of output pulse is updated to the specified
value after current pulse is completed as shown in Figure 3. 20.
Figure 3.20 Static (software-timed) timer/pulse
