17 Chapter 2
2.5.3 Testing Digital Input Function
Click the Digital Input tab to show forth the Digital Input test panel as
seen below. Through the color of the lamps, you can easily discern
whether the status of each digital input channel is high or low.

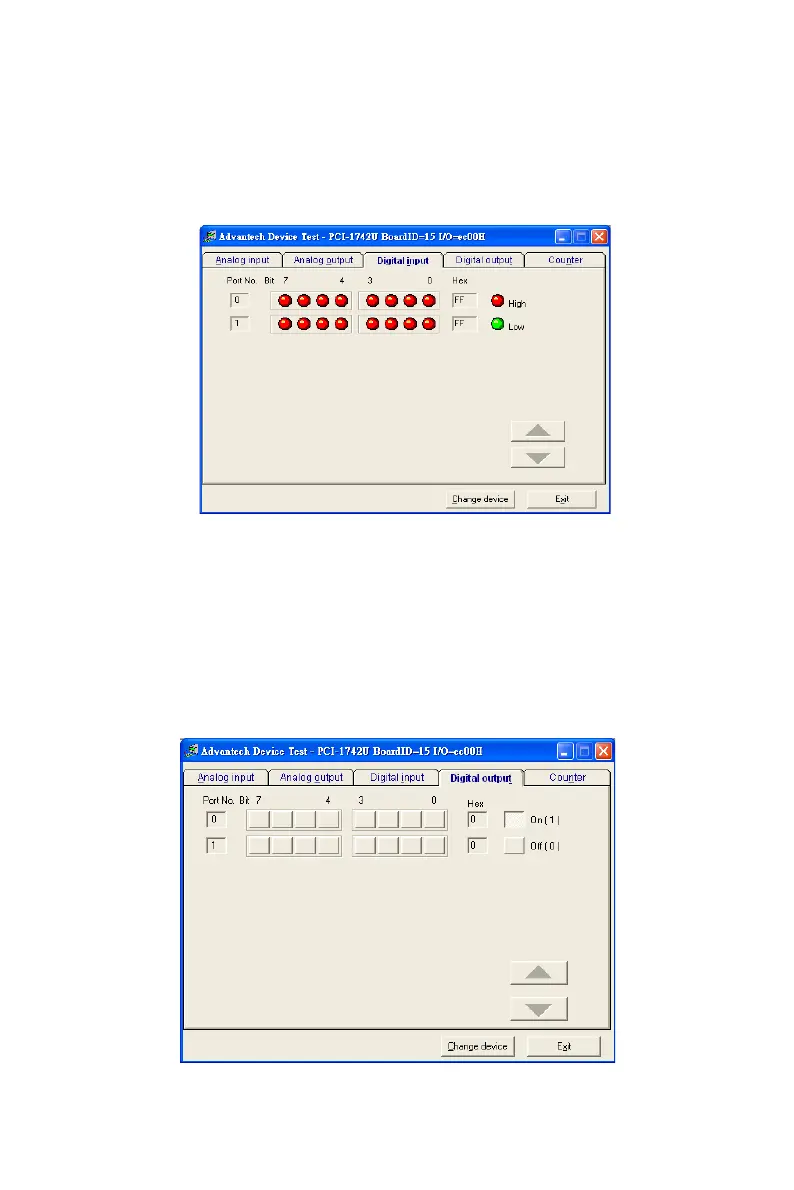

Figure 2.8: Digital Input Tab
2.5.4 Testing Digital Output Function
Click the Digital Output tab to bring up the Digital Output test panel such
as the one seen on the next page. By pressing the buttons on each tab, you
can easily set each digital output channel as high or low for the corre-
sponding port.
Figure 2.9: Digital Output Tab
