PCI-1716_Series User Manual 10
2.2.1 Board ID (SW1)
The PCI-1716/1716H/1716L has a built-in DIP switch (SW1), which is used to define
each card’s board ID. When there are multiple cards on the same chassis, this board
ID switch is useful for identifying each card’s device number.
After setting each PCI-1716/1716H/1716L, you can identify each card in system with
different device numbers. The default value of board ID is 0 and if you need to adjust
it to other value, please set the SW1 by referring to Table 2.1.
*Default setting
2.2.2 Power On Configuration(JP1)
Default configuration after power on, and hardware reset is to set all the analog input
and analog output channels to open status (the current of the load can’t be sink) so
that the external devices will not be damaged when the system starts or resets.
When the system is hot reset, then the status of isolated digital output channels are
selected by jumper JP1. Table 2.2 shows the configuration of jumper JP1.

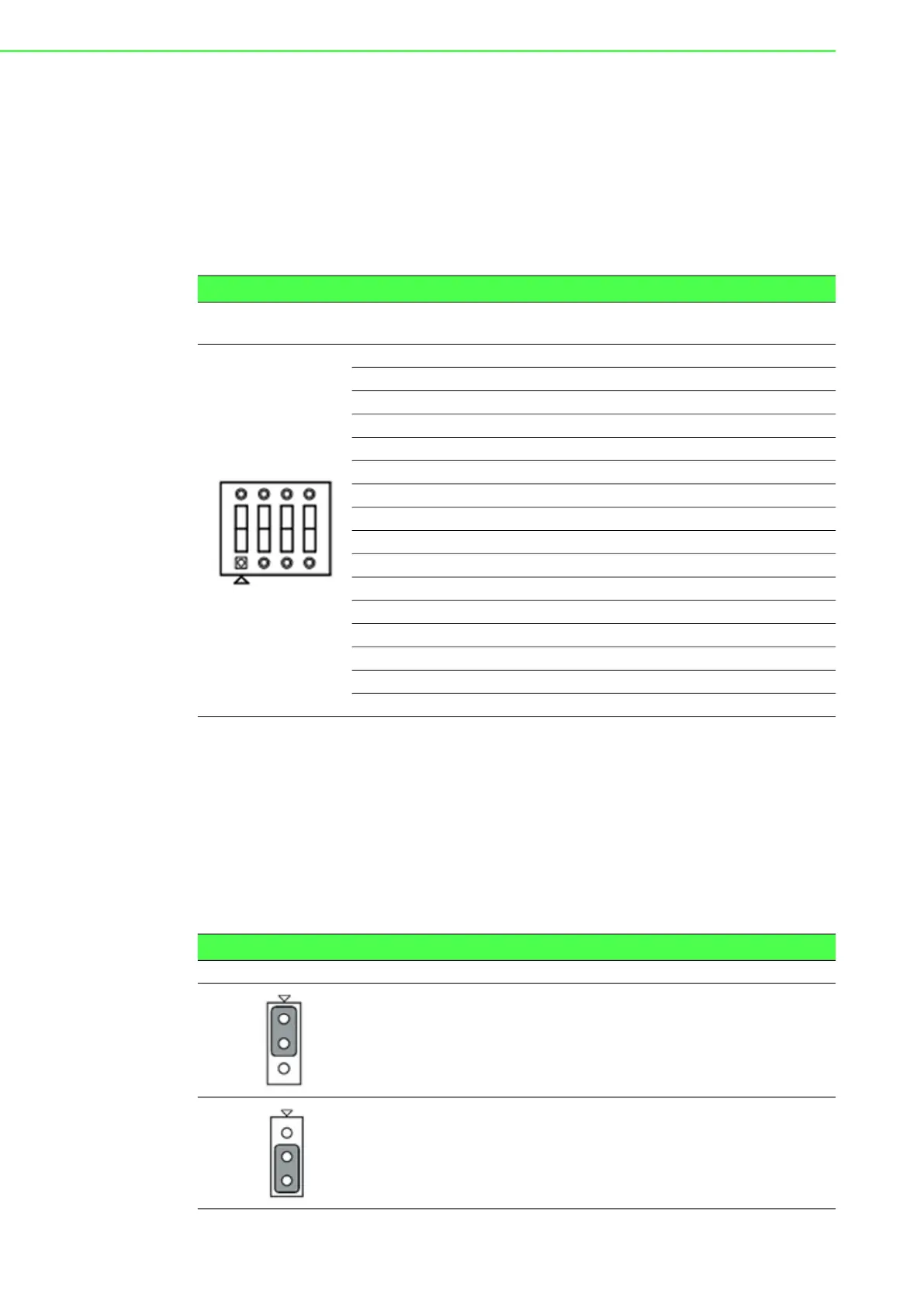

Table 2.1: Board ID Setting (SW2)
SW2 Board ID
Position 1
(ID0)
Position 2
(ID1)
Position 3
(ID2)
Position 4
(ID3)
ON
OFF
0* ON ON ON ON
1 ON ON ON OFF
2 ON ON OFF ON
3 ON ON OFF OFF
4 ON OFF ON ON
5 ON OFF ON OFF
6 ON OFF OFF ON
7 ON OFF OFF OFF
8 OFF ON ON ON
9 OFF ON ON OFF
10 OFF ON OFF ON
11 OFF ON OFF OFF
12 OFF OFF ON ON
13 OFF OFF ON OFF
14 OFF OFF OFF ON
15 OFF OFF OFF OFF
Table 2.2: Power on Configuration after Hot Reset (JP1)
JP1 Power on configuration after hot reset
Keep last status after hot reset
Default configuration (Default setting)
1
1
