PCI-1715U User Manual 8
Chapter 3 Signal Connections
3.1 Overview
Correct signal connections are one of the most important factors in ensur-
ing that your application system is sending and receiving data correctly.
A good signal connection can avoid much unnecessary and costly dam-
age to your valuable PC and other hardware devices. This chapter will
provide some useful information about how to connect analog input sig-
nals to the PCI-1715U card via the I/O connector.
3.2 I/O Connector
The I/O connector for the PCI-1715U card is a 37-pin D-type connector
which you can connect to 37-pin D-type accessories with Advantech's
PCL-10137 cable.
Note: The PCI-1715U does not include the PCL-10137 cable assembly.

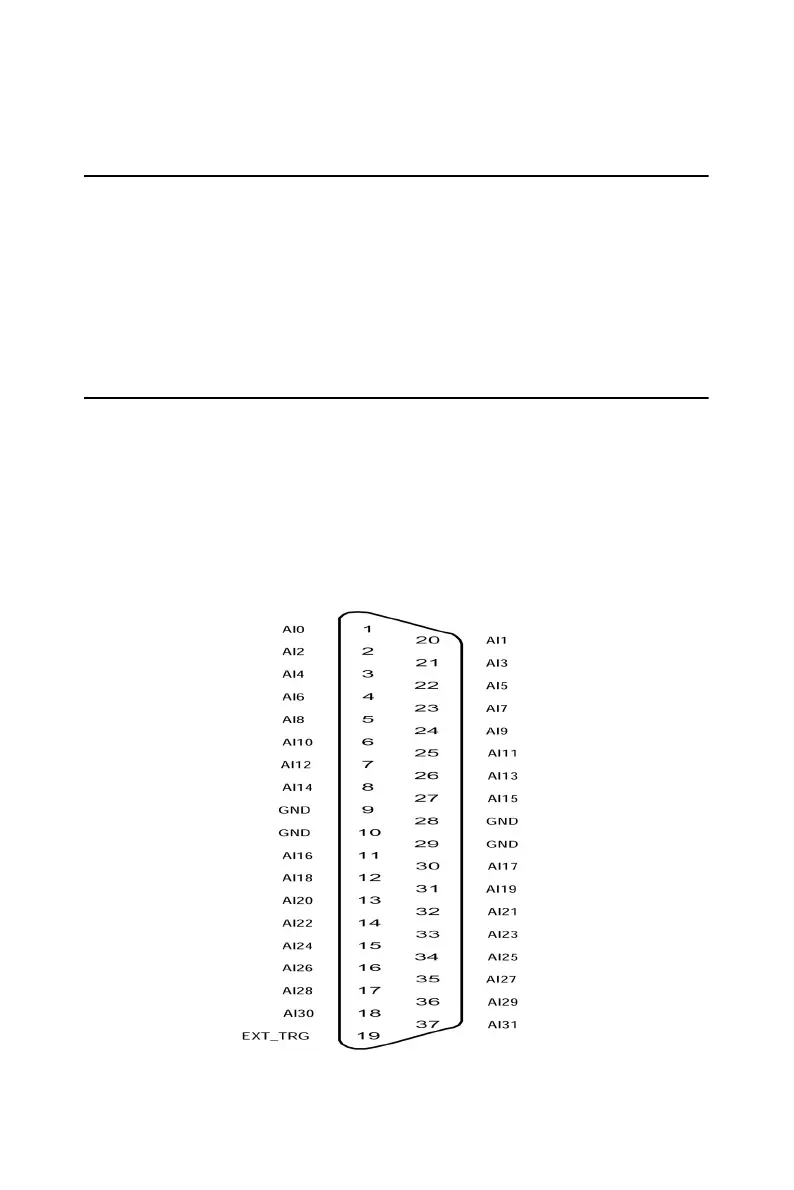

The following figure shows the pin assignments for the 37-pin I/O con-
nector on the PCI-1715U card.
Figure 3.1: I/O Connector Pin Assignments
