PCI-1285/1285E User Manual 22
5.1 Introduction
The utility is developed with .Net control library according to Common Motion API
architecture. The .Net control library includes control - Device, Axis, Group and com-
ponent - AxisSetupView, AxisScopeView, AxisDiagView, GroupPathView and Group-
SpeedView. The new utility is consistent and compatible with old AdvMotionUtility.
The new utility supports PCI-1220U, PCI-1240U, PCI-1245/1245V/1245E/1265/
1285/1285E series products.
5.1.1 Contents
Mainly according to the order of operations, the following interfaces will be intro-
duced:
1. Main Form: includes Main Menu, Toolbar and Device Tree.
2. Single-axis Motion: focuses on the I/O and attribute configuration, and status
and movement operations (P to P/ Continue/ Homing) of single axis.
3. Multi-axis Motion: focuses on multi-axis (Group) interpolation operation, includ-
ing the basic interpolation (Line/Arc /Helix), continuous interpolation (Path) and
tangent follow motion.
4. Synchronized Motion: focuses on synchronized motion operations, including
electronic CAM (E-CAM), electronic gear (E-Gear) and gantry (Gantry) move-
ment.
5. Digital Input: displays device's input status.
6. Digital Output: displays device's output status.
7. Analog Input: displays device's analog input status.
5.2 Main Form

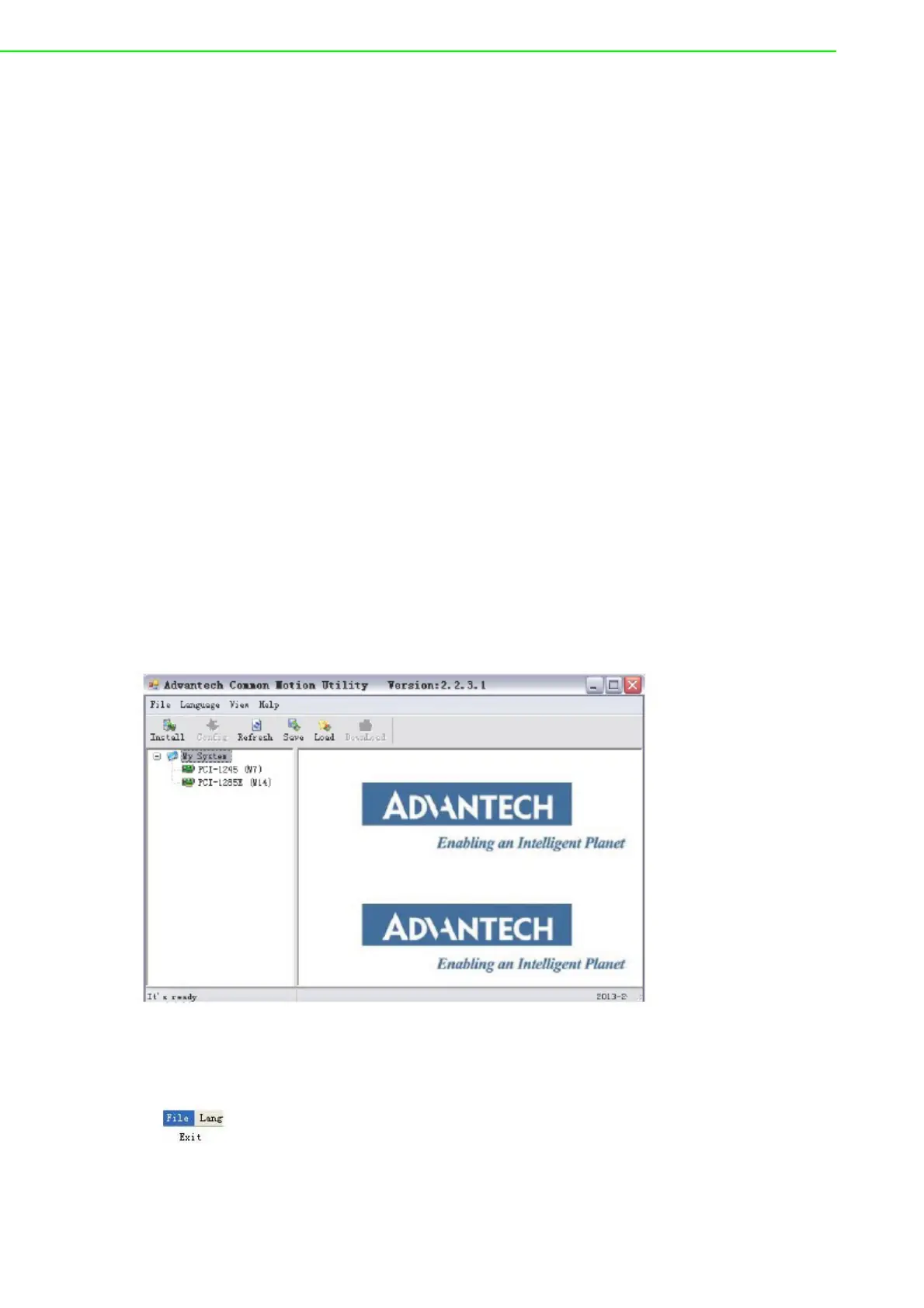

5.2.1 Main Form
5.2.1.1 File
Click [Exit] to terminate this process.
