PCI-1285/1285E User Manual 10
3.1 I/O Connector Pin Assignments
The I/O connector on the PCI-1285/1285E is a 200-pin connector that enables you to
connect to accessories via the PCL-101100SB shielded cable.

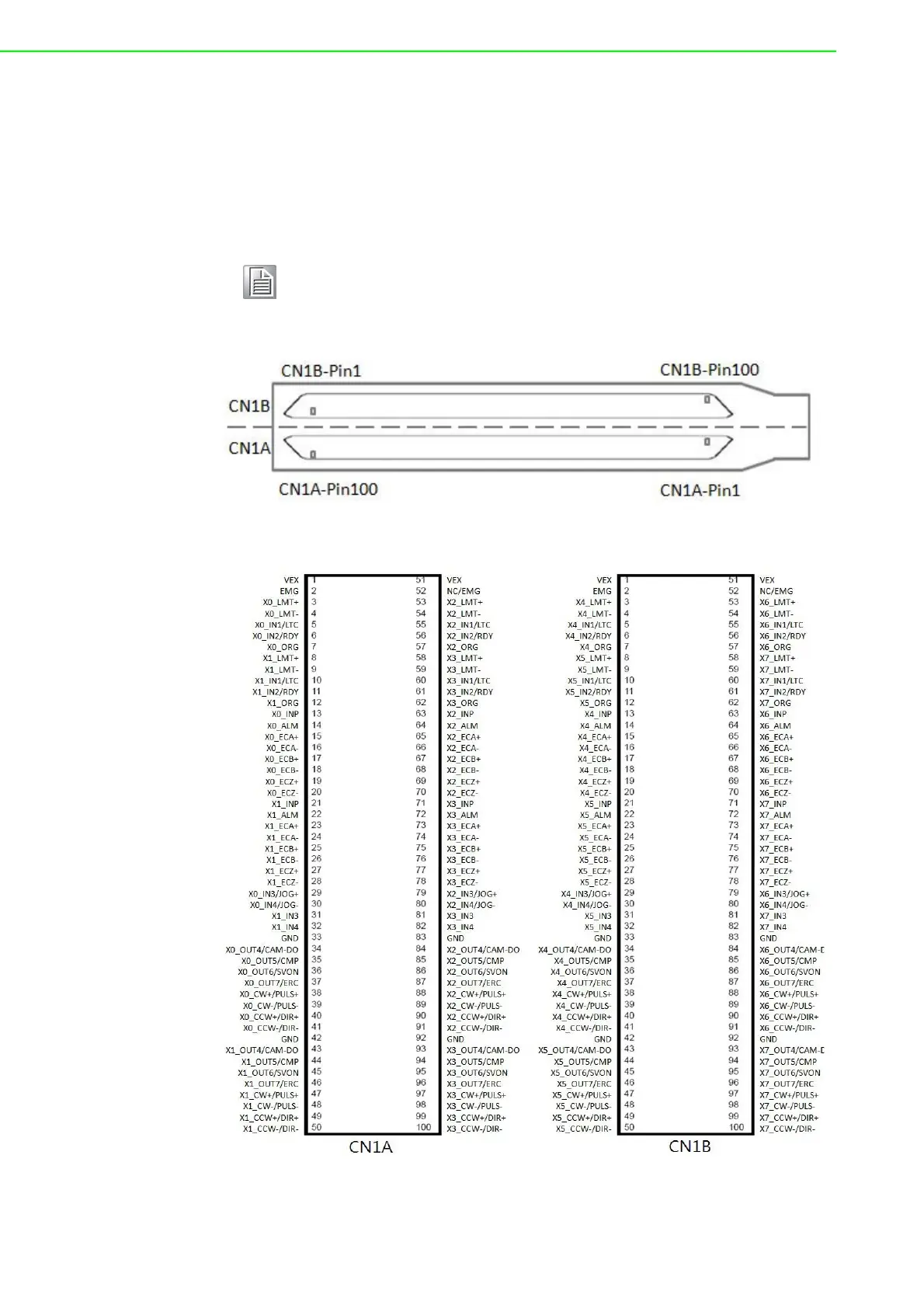

Figure 3.1 and figure 3.2 show the pin assignments for the 200-pin I/O connector on
the PCI-1285/1285E, and table 3-1 shows its I/O connector signal description.
Figure 3.1 I/O connector CN1A,CN1B for PCI-1285/1285E
Figure 3.2 I/O Connector Pin Assignment for CN1A and CN1B
Note! The PCL-101100SB shielded cable is especially designed for the
PCI-1285/1285E series to reduce noise in the analog signal lines.
Refer to section 1.4 Accessories.
