PCIE-1203 User Manual 14

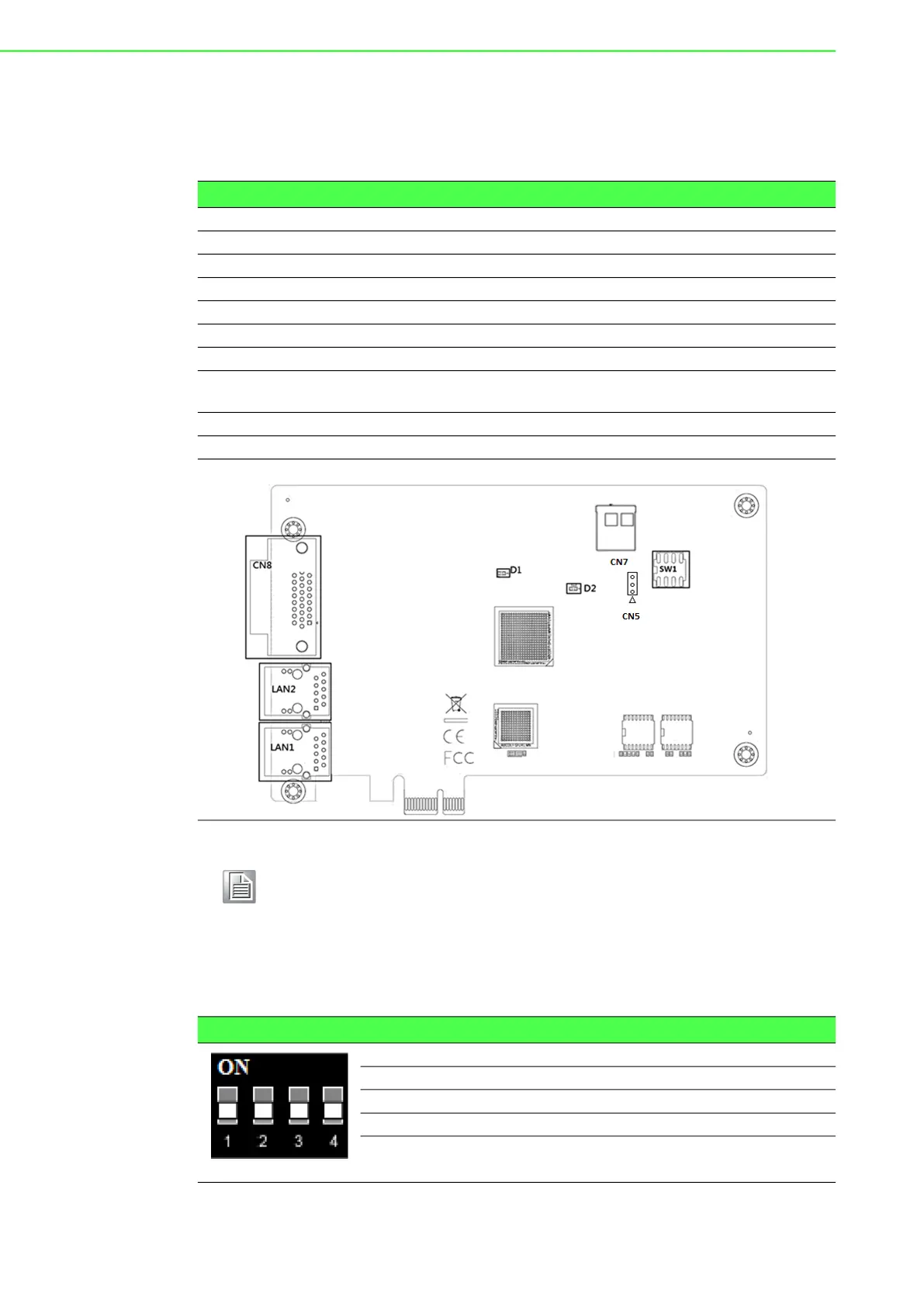

3.1 Outline
Table 3.1 shows location of the connectors and switches of the PCIE-1203.
3.2 Board ID Switch (SW1)
Table 3.1: Point to point
No. Part Reference Function
1 CN8 Isolated digital input/output connector
2 LAN1 RJ45 with Transformer (Motion)
3 LAN2 RJ45 with Transformer (IO)
4 Gold finger PCI Express x 1
5 CN7 Micro-SD card slot
6 SW1 Board ID switch
7 CN5
Boot master from flash memory (Short Pin1 and
Pin2)
8 D1 LED
9 D2 LED
Note! Confirm that Pin1 and Pin2 of CN5 are short-circuited by a jumper
before using PCIE-1203.
Table 3.2: Board ID Setting
SW1
Pin Label Switch ON Switch OFF
1 ID3 0 (ID3 Value =0) 1 (ID3 Value =1)
2 ID2 0 (ID2 Value =0) 1 (ID2 Value =1)
3 ID1 0 (ID1 Value =0) 1 (ID1 Value =1)
4 ID0 0 (ID0 Value =0) 1 (ID0 Value =1)
