PCE-7132/5132/5032 User Manual 16
2.1 Introduction
You can access most of the connectors from the top of the board. If you have a num-
ber of cards installed, you may need to partially remove the card to make all the con-
nections.

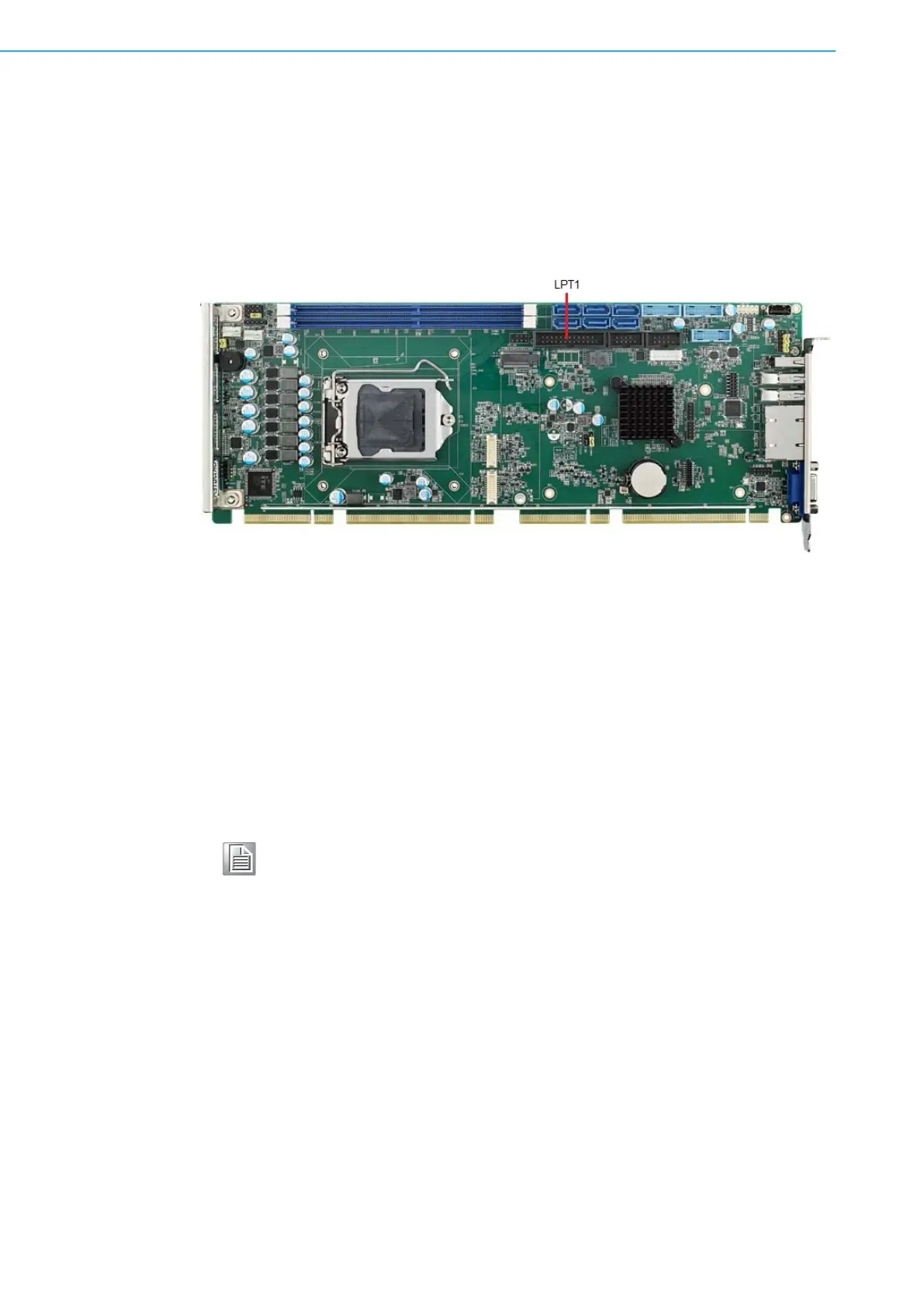

2.2 Parallel Port (LPT1)
The parallel port is normally used to connect the motherboard to a printer. The SBC
includes an onboard parallel port, accessed through a 26-pin flat-cable connector.
2.3 USB Ports
Each SBC provides both USB 2.0 and USB 3.2 (Gen1/Gen2) on-board ports with
complete Plug & Play and hot swap support for up to 127 external devices. These
USB ports comply with USB Specification 2.0 and 3.2 (Gen1/Gen2), and supports
transfer rates up to 480 Mbps (USB 2.0) and 5 Gbps/10 Gbps (USB 3.2). The USB
controller can be disabled in the system BIOS setup.
Note! Disabling USB controller in the BIOS menu will turn off all USB port
functions.
