13 PCE-7131/5131/5031 User Manual
Chapter 1 Hardware Configuration
1.13 Processor Cooler Installation
Purchasing PCE-7131/5131/5031 optimized CPU cooler (P/N: 1960052651N021)
from Advantech is a must. Other brand CPU coolers are NOT compatible with PCE-
7131/5131/5031. Advantech specially designed CPU cooler and CPU plate is for bet-
ter heat dissipation efficiency and for enhancing rigidity of the CPU card (neither is it
compatible with Intel boxed CPU cooler). Please install 1960052651N021 CPU
cooler following these instructions.

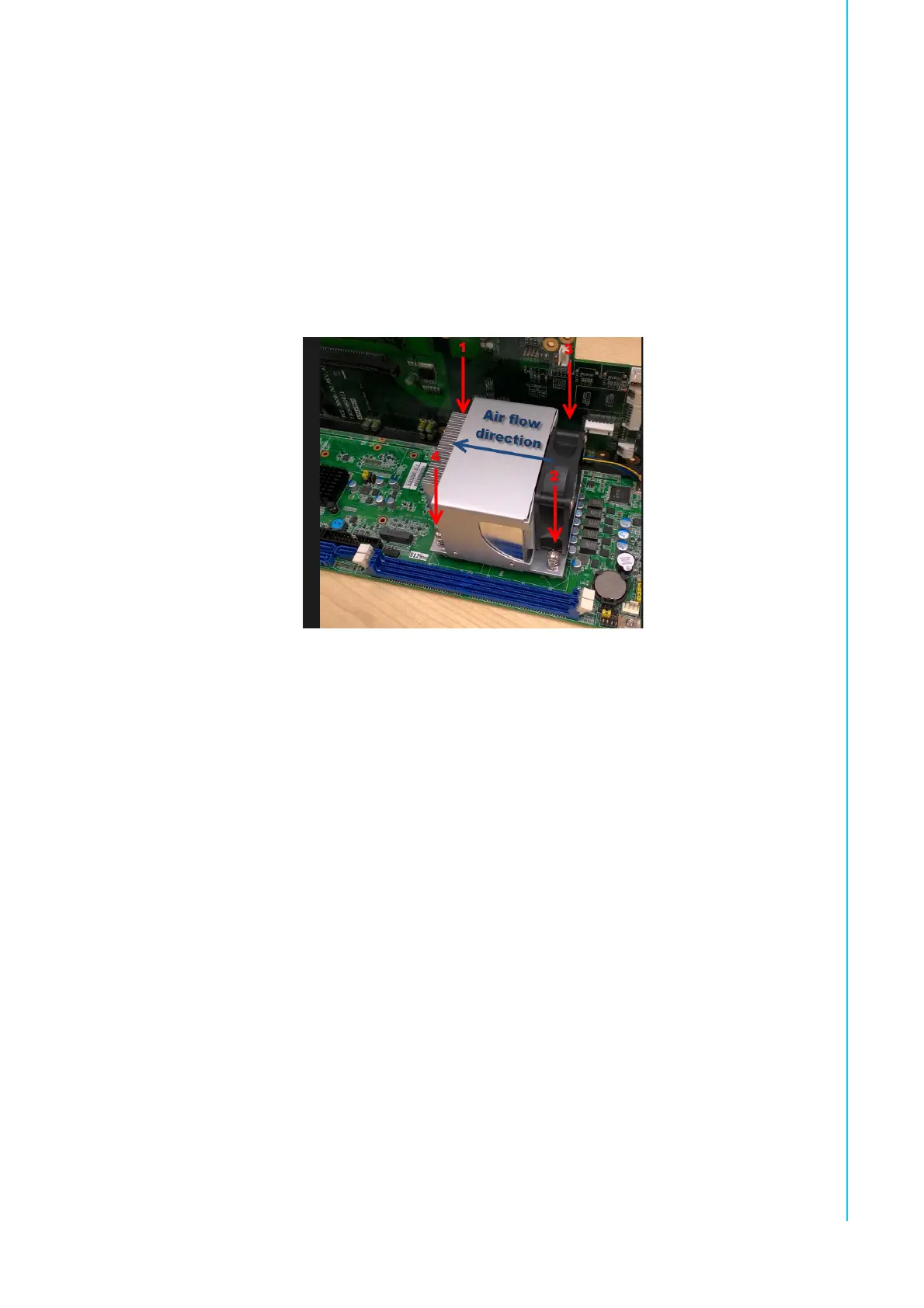

Attach the CPU cooler on CPU card by fastening four screws of the
CPU cooler into the steel back-plate on PCB.
Note the direction of CPU cooler; it must follow that shown abov
e.
Installing a CPU cooler in the wrong direction may cause poor heat
dissipation that may damage the CPU card.
