2.1 Introduction
You can access most of the connectors from the top of the board. If you have a num-
ber of cards installed, you may need to partially remove the card to make all the con-
nections.
2.2 eSPI for COM expansion (eSPI1)
eSPI is used for the optional expansion of eSPI COM232/485 module developed by
Advantech. Please refer to data sheet for respective part numbers.
2.3 USB Ports
Each SBC provides both USB 2.0 and USB 3.2 (Gen1/Gen2) on-board ports with
complete Plug & Play and hot swap support for up to 127 external devices. These
USB ports comply with USB Specification 2.0 and 3.2 (Gen1/Gen2), and supports
transfer rates up to 480 Mbps (USB 2.0) and 5 Gbps/10 Gbps (USB 3.2). The USB
controller can be disabled in the system BIOS setup.
Note! Keep the default settings if an eSPI-interface COM module is not
installed, as changing them will prevent the system from turning on. If
you are installing the COM module, follow these steps to ensure the sys-
tem boots correctly: power off the system, install the module, set JESPI1
and JESPI2 jumpers to the 2-3 pin closed position, power the system on
until the BIOS POST screen appears, turn off the AC power, and then
turn the system back on.

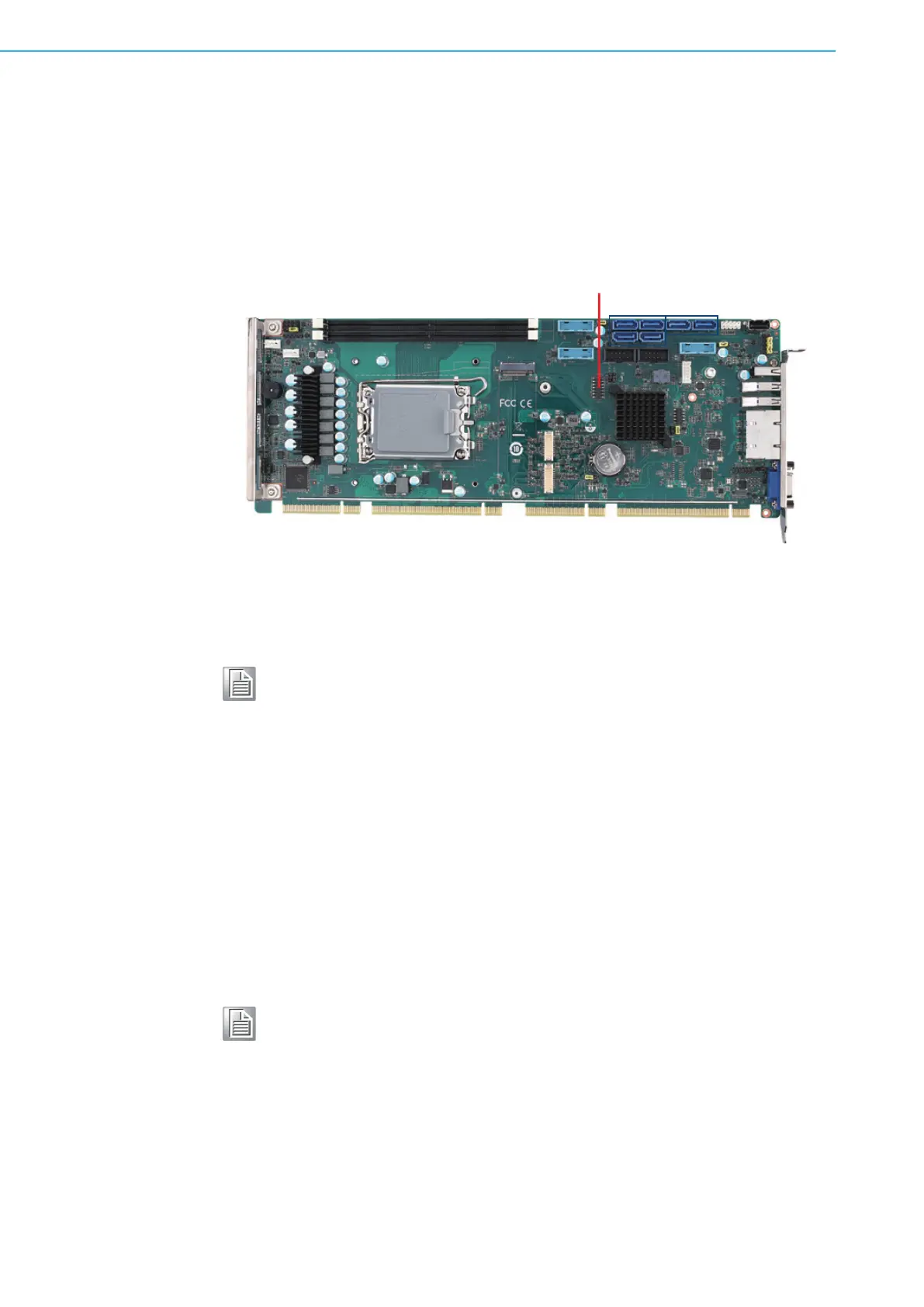

ePSI
Note! Disabling USB controller in the BIOS menu will turn off all USB port
functions.
