7 PCE-3029/4129 User Manual
Chapter 1 Hardware Configuration

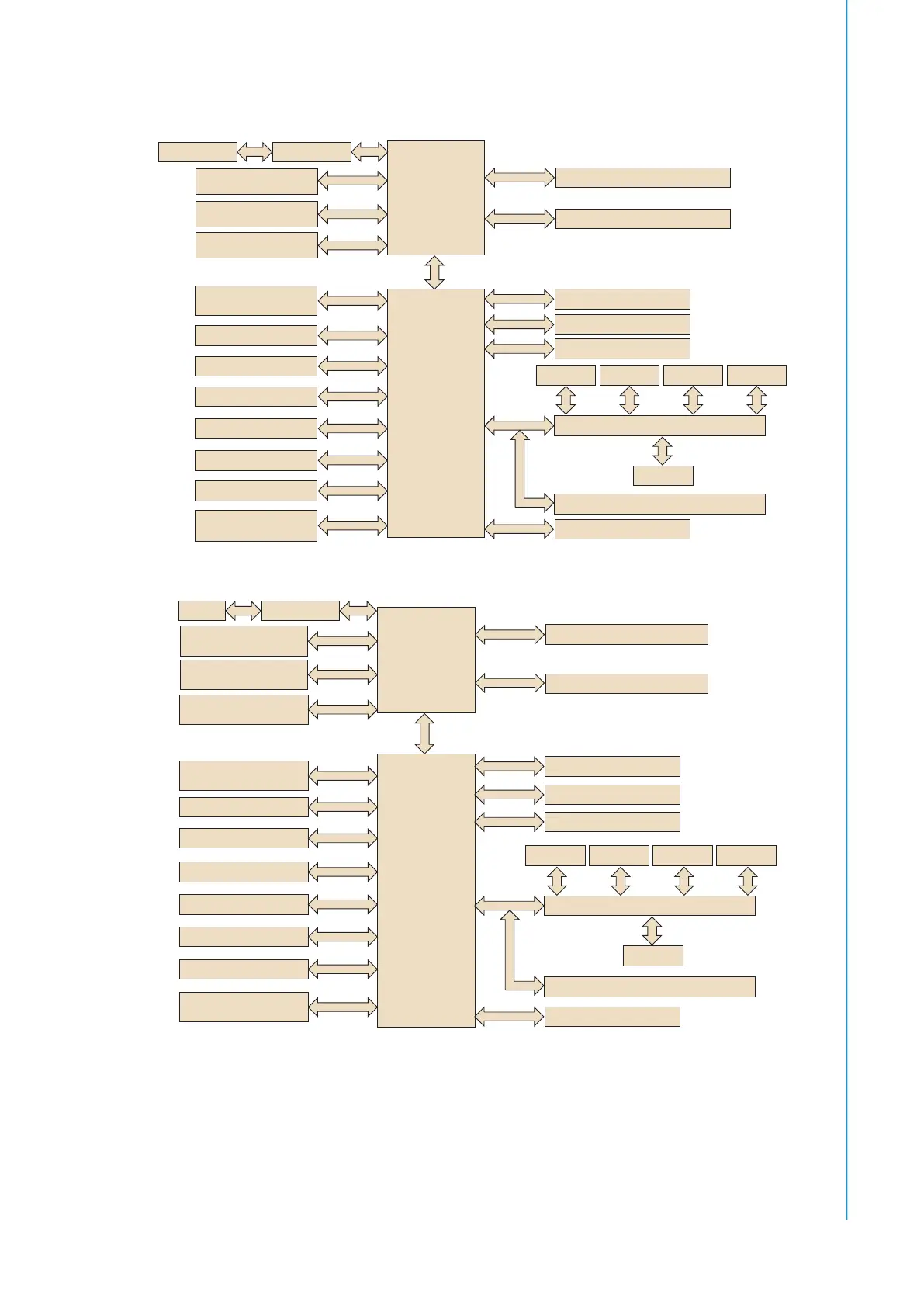

1.6 Block Diagram
Figure 1.2 PCE-3029 Block Diagram
Figure 1.3 PCE-4129 Block Diagram
Intel Skylake
LGA1151
Processor
Intel H110
DDR4 1866/2133 up to 16GB (Non-ECC)
DDR4 1866/2133 up to 16GB (Non-ECC)
LAN1: I219-V GbE (PHY)
DMI
VGA
NXP PTN3355BS
1 x mini-PCIe
(Optional: PCE-SA01-00A1E)
Backplane
connector A & B
x16 PCIe * 1
Gen3
PCIe x1
PCA-AUDIO-HDB1E (Optional)
HD Audio
SIO: NCT6776D
PCA-COM485/232 Module (Optional)
RS-232 x 2
8bit GPIO
LPT x 1 PS/2 WDT
LPC BUS
LAN2: i211-AT GbE
PCIe x1
PICMG 1.3 connector A
x1 PCIe * 4
Gen 2
3x SATA 3.0
600 MB/s
1x SATA 3.0/m-SATA
600 MB/s
1 x Rear USB 3.0
USB 2.0
USB 3.0
6 x Pin header USB 2.0
USB 2.0
1 x Type A USB 2.0
USB 3.0
2 x Pin header USB 3.0
SPI Bus
128 Mbit
SPI ROM
Display port
(optional: PCE-SA01-00A1E)
DVI
(Optional: 1700021831-01)
Intel Skylake
LGA 1151
Processor
Intel C236
DDR4 1866/2133 up to 16GB (ECC)
DDR4 1866/2133 up to 16GB (ECC)
LAN1: I219LM GbE (PHY)
DMI
Display port
(optional: PCE-SA01-00A1E)
DVI
(Optional: 1700021831-01)
1 x mini-PCIe
(Optional: PCE-SA01-00A1E)
4x SATA 3.0
1 x Rear USB 3.0
Backplane
connector A & B
x16 PCIe * 1
Gen 3
PCIe x1
PCA-AUDIO-HDB1E (Optional)
HD Audio
SIO: NCT6776D
PCA-COM485/232 Module (Optional)
RS-232 x 2
8bit GPIO
LPT x 1 PS/2 WDT
LPC BUS
LAN2: I210AT GbE
PCIe x1
PICMG 1.3 connector A
x1 PCIe *4
Gen 3
600 MB/s
1 x m-SATA
600 MB/s
USB 3.0
USB 2.0
USB 2.0
USB 3.0
6 x Pin header USB 2.0
1 x Type A USB 2.0
2 x Pin header USB 3.0
SPI Bus
128 Mbit
SPI ROM
VGA NXP PTN3355BS
