Chapter 1 Introduction and Intended Use
1.4.5 Environmental Condition
1.5 Input/Output Signal Connectors
PAX-121
Table 1.6: Environmental Condition
Temperature
Operating 0 ~ 40 °C
Storage -20 ~ 60 °C
Transportation -20 ~ 60 °C
Humidity
Operating Ta = 40°C, 90% RH (non-condensing)
Storage 5 ~ 90%
Transportation 5 ~ 90%
Pressure
Operating 540 hPa to 1013 hPa
Storage 540 hPa to 1013 hPa
Transportation 540 hPa to 1013 hPa

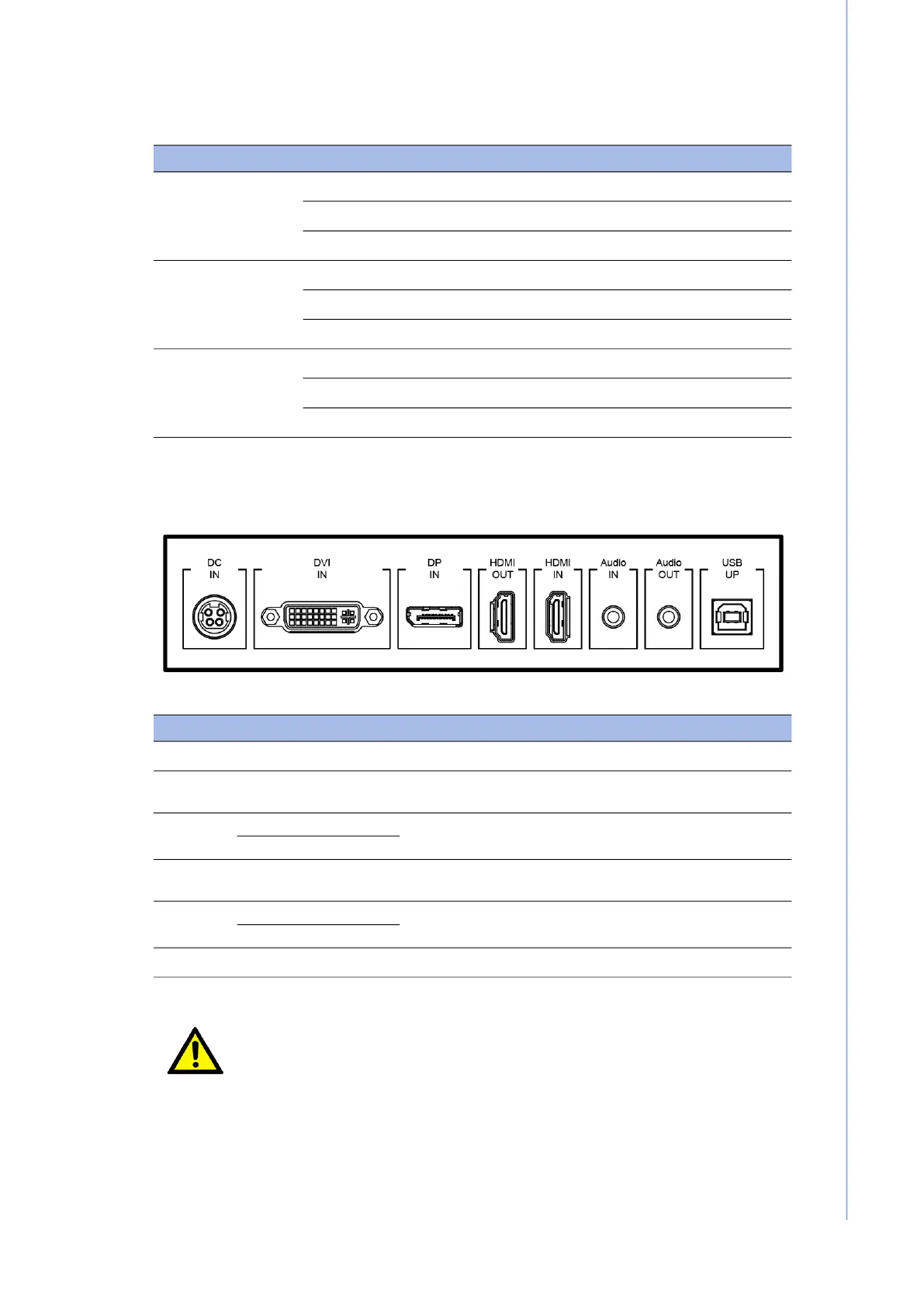

Table 1.7: Input/Output Signal Connectors
Symbol Signal Connector Specification
DP DP 1.2 input 1 x DP jack
DisplayPort 1.2
MAX: 1920 x 1080@60 Hz
HDMI
HDMI 1.4 input
2 x HDMI jack (Type A)
Digital RGB: TMDS
MAX: 1920 x 1080@60 Hz
HDMI 1.4 output
DVI DVI Input 1 x DVI jack (Type D)
Digital RGB: TMDS
MAX: 1920 x 1080@60 Hz
Audio
Audio input
2 x phone jack
Audio: 0.5V[rms](Normal),
2 Channel (L+R)
Audio output
USB Up USB up 1 x USB-B jack Touch control (optional)
Caution! Do not touch the signal inputs, signal outputs, or other connectors while
touching the patient.
External equipment intended for connecting to the signal input, signal
output, or other connectors must comply with the relevant IEC standard
(e.g., IEC 60950 for IT equipment and IEC 60601-1 series for medical
electrical equipment). In addition, all such combination systems must
comply with the IEC 60601-1 standard specifications.
If in doubt, contact a qualified technician or your local representative.
