5 MIO-5391 User Manual
Chapter 1 General Information
1.2.4 Electrical Specifications
Power Requirement: Single +12V DC ± 10% power input
Power Consumption:
– Max load
i7-7820EQ: 67.64W
– Idle mode
i7-7820EQ: 8.26W
Power Consumption Conditions:
– Test software: 3DMark 2006
– Max. load: Measure the maximum current value which system under maxi-
mum load (CPU: Top speed, RAM &Graphic: Full loading)
– Idle mode: Measure the current value when system in windows mode and
without running any program
RTC Battery:
– Typical Voltage: 3.0 V
– Normal discharge capacity: 210 mAh
1.2.5 Environmental
Operating temperature: 0 ~ 60°C (32 ~ 140°F)
Operating Humidity: 40°C @ 95% RH Non-Condensing
Storage Temperature: Storage temperature: -40~85°C
Storage Humidity: Relative humidity: 95% @ 60°C
1
It will not be supported in default, please contact to Advantech if this function
is needed.
2
Thermal condition need to be considered when setting max frequency.

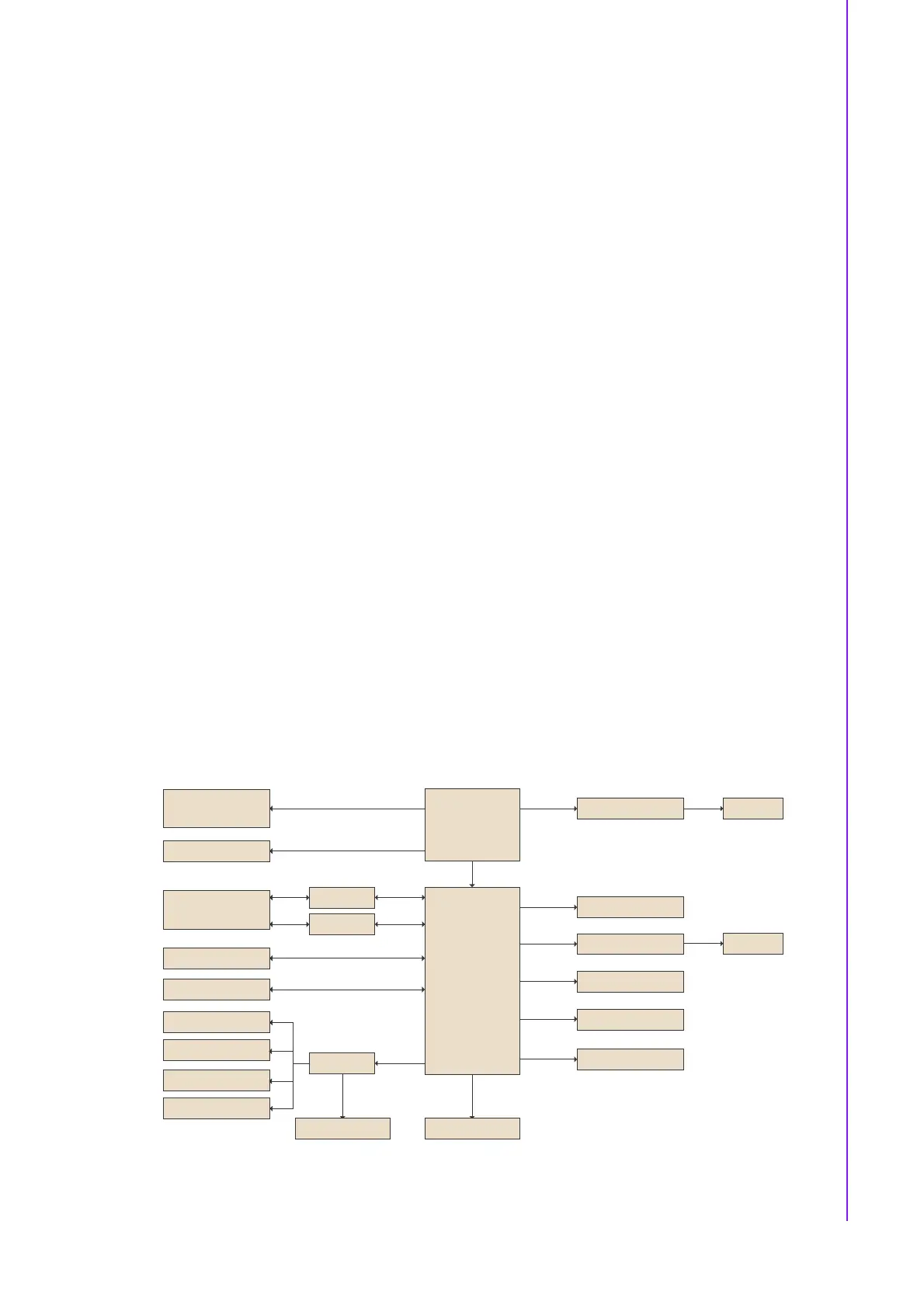

1.3 Block Diagram
48bit LVDS
SIM
Intel Kabylake-H
Mobile CPU
MIOeSMBus I
2
C (optional)
Intel QM175/CM238
(support ECC)
Mobile PCH
2400MHz DDR4*
SODIMM x 2 slot
dual channel up to 32G
HDMI x 2
2 x GbE
CH7511
Display port
2 x USB 3.0
2 x USB 3.0
COM1 RS232/422/485
Case open
COM2-4 RS232/422/485
USB3.0 x 4
USB2.0 x 4
DDI x 1, 4 PCIe x1, USB2.0
LPC, SMBUS, rest, line out, power on
eDP
M.2 Key E
PCIe x 2 (Gen.3)
USB2.0 x 1
2 x SATA III
TPM2.0
SATA III x 2
LPC
128M BIOS
SPI
Full size mSATA/MiniPCIe
PCIe x 1 (Gen.3)
SATA x 1
USB2.0 x 1 UIM
I210
PCIe
EIO-IS200
LPC
2 x 8bit GPIO
I219
PCIe
