MIO-5375 User Manual 14
3.4 Setting Jumpers
You may configure your card to match the needs of your application by setting jump-
ers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To “close” a jumper, you connect the pins with the clip. To
“open” a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

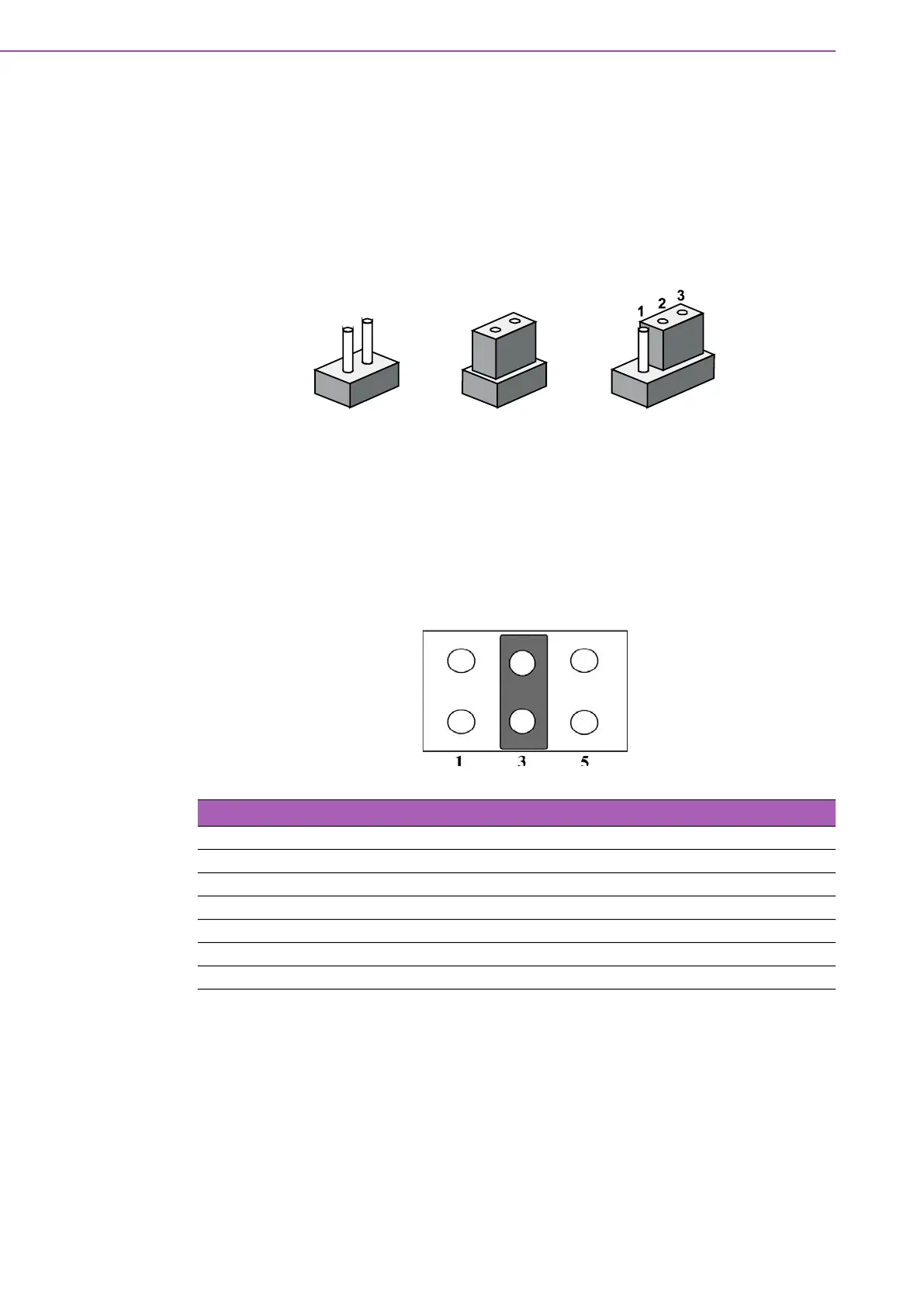

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
3.4.1 Auto Power On / Load BIOS default (J3)
closed 2-3closedopen
Table 3.3: Auto Power On / Load BIOS default (J3)
Part Number 1653003260
Footprint HD_3x2P_79
Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050
Setting Function
(1-2)* Auto Power On
(3-4)* Reserve
(5-6)* Short: Load BIOS default Open: Normal
