MIC-7700 User Manual 18

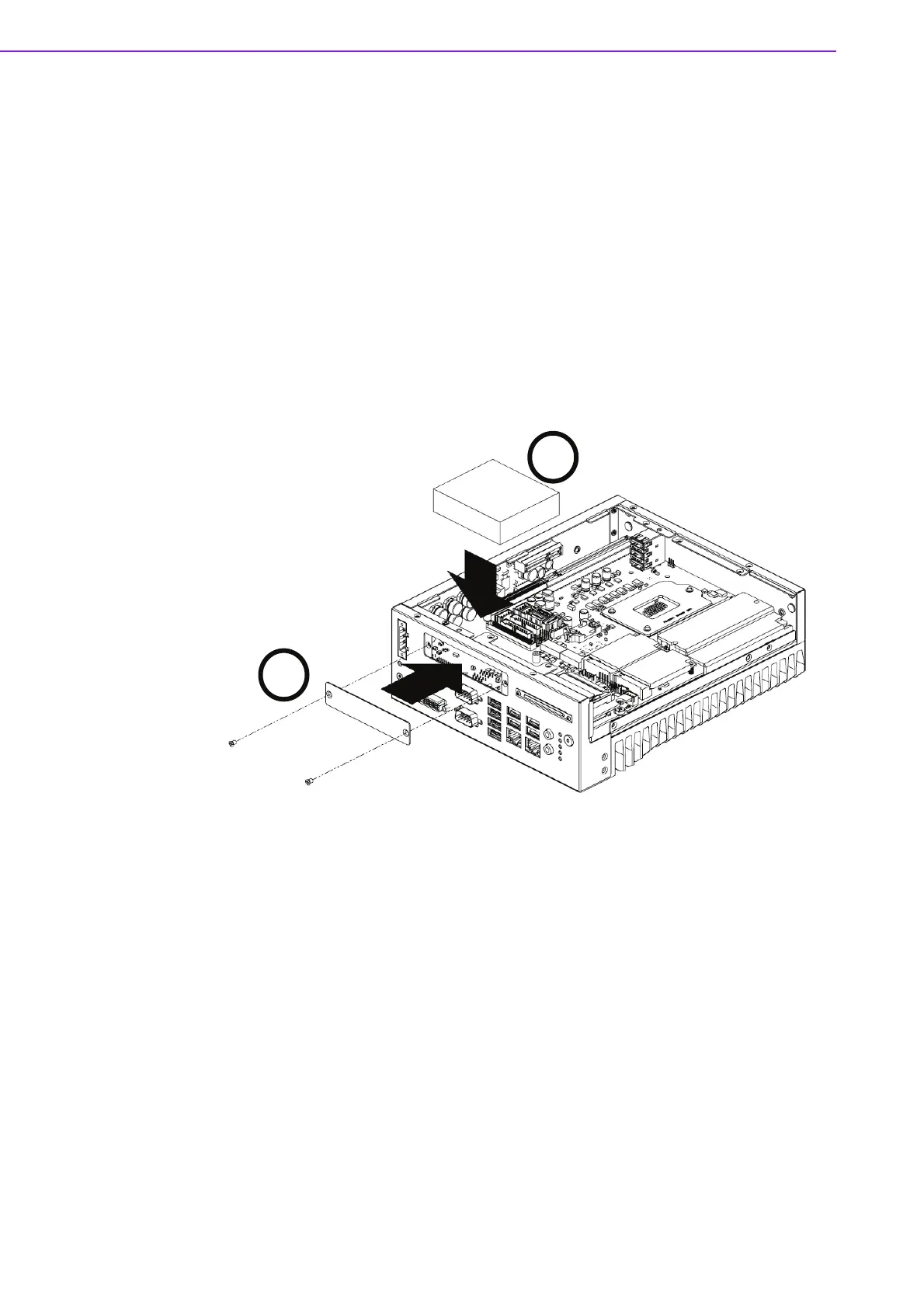

2.4.6 Expansion module Installation (Optional)
MIC-7700 supports below optional modules for different applications.
A: Expansion module:
1. 32-bit GPIO module, P/N: AIIS-DIO32-00A1E
2. Secondary DVI module, P/N: 98R1750000E
3. HDMI/Remote power module, P/N: 98R1750010E
4. HDMI module, P/N: 98R1750030E
5. Remote power module: 98R1750040E
6. Dual LAN module, P/N: 98R1790040E (MIC-7700Q only)
B: Bracket for expansion module
1. Undo the 4 screws and remove the bottom cover.
2. Undo HDD tray & expansion module baffle.
3. Remove COM cable and undo baffle cover.
4. Assemble module on M/B (Note: Optional expansion modules need to connect
with a cable. (Please refer to MB internal I/O connector specification at IO con-
nector page for GPIO connector.)
5. Assemble module baffle with screws.
6. Replace bottom cover and secure with screws.
A
B
