MIC-7700 User Manual 14

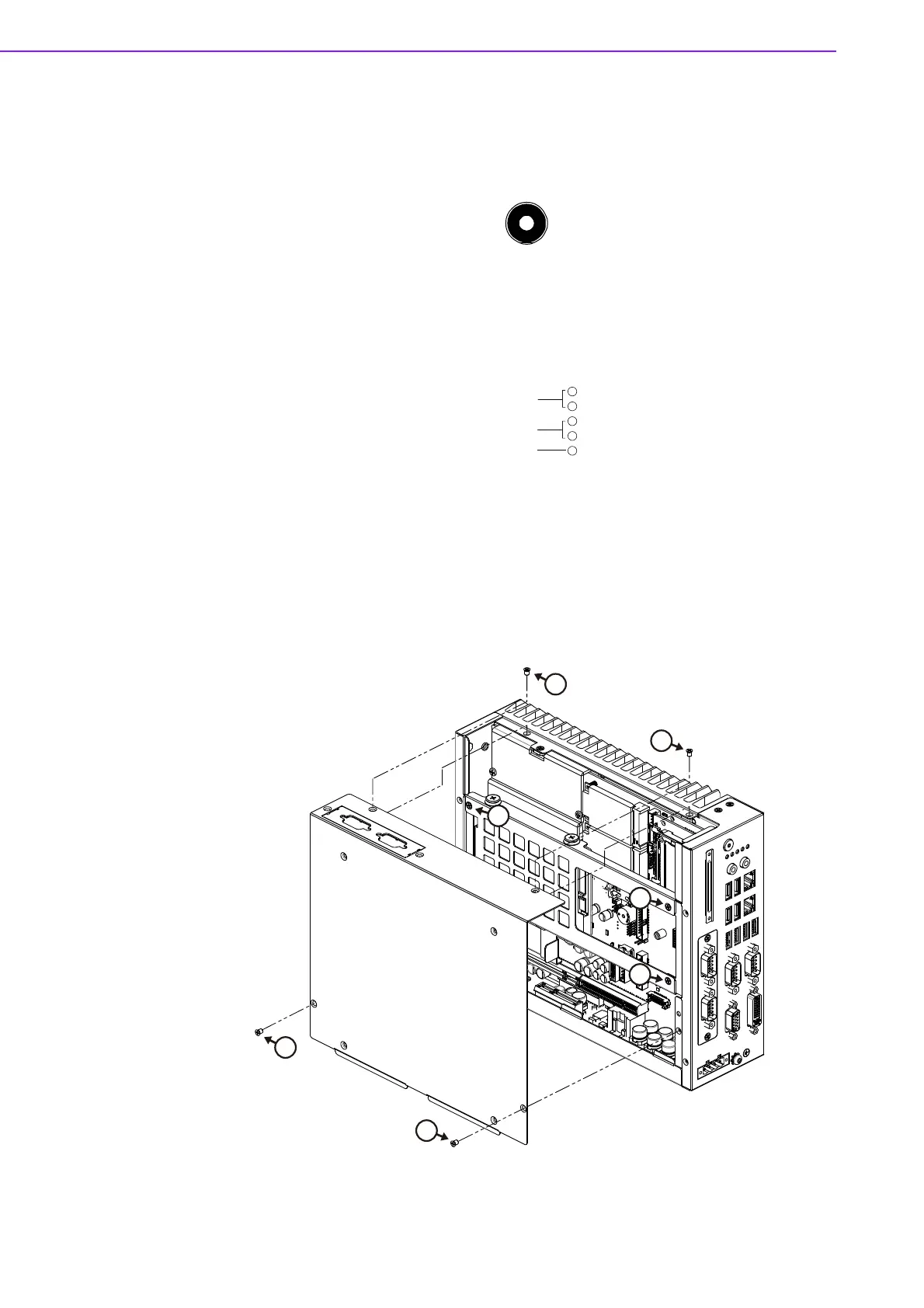

2.3.1.8 Power ON/OFF button
MIC-7700 comes with a Power On/Off button with LED indicators on the front side to
show its On status (Green LED) and Off/Suspend status (RED LED), that supports
dual function of Soft Power-On/Off (instant off or delay 4 seconds), and suspend.
Figure 2.8 Power Button
2.3.1.9 LED Indicators
MIC-7700 provides COM1 & COM2 TX/RX LED for date transmission status monitor-
ing.
Figure 2.9 LED Indicators
2.4 Installation
2.4.1 HDD installation
1. Undo 4 screws and remove the bottom cover
2. Undo 4 screws to remove the HDD tray.
COM2 : TX/RX
TX
RX
TX
RX
COM1 : TX/RX
HDD status
1
1
1
1
2
2
2
