11 MIC-7700 User Manual
Chapter 2 H/W Installation
2.3.1.2 Ethernet connector (LAN)
MIC-7700 is equipped with two Ethernet controllers that are fully compliant with IEEE
802.3u 10/100/1000 Mbps CSMA/CD standards. LAN1 is equipped with Intel i219
and LAN2 is equipped with Intel i210. The Ethernet port provides a standard RJ45
jack connector with LED indicators on the front side to show its Active/Link status and
Speed status.

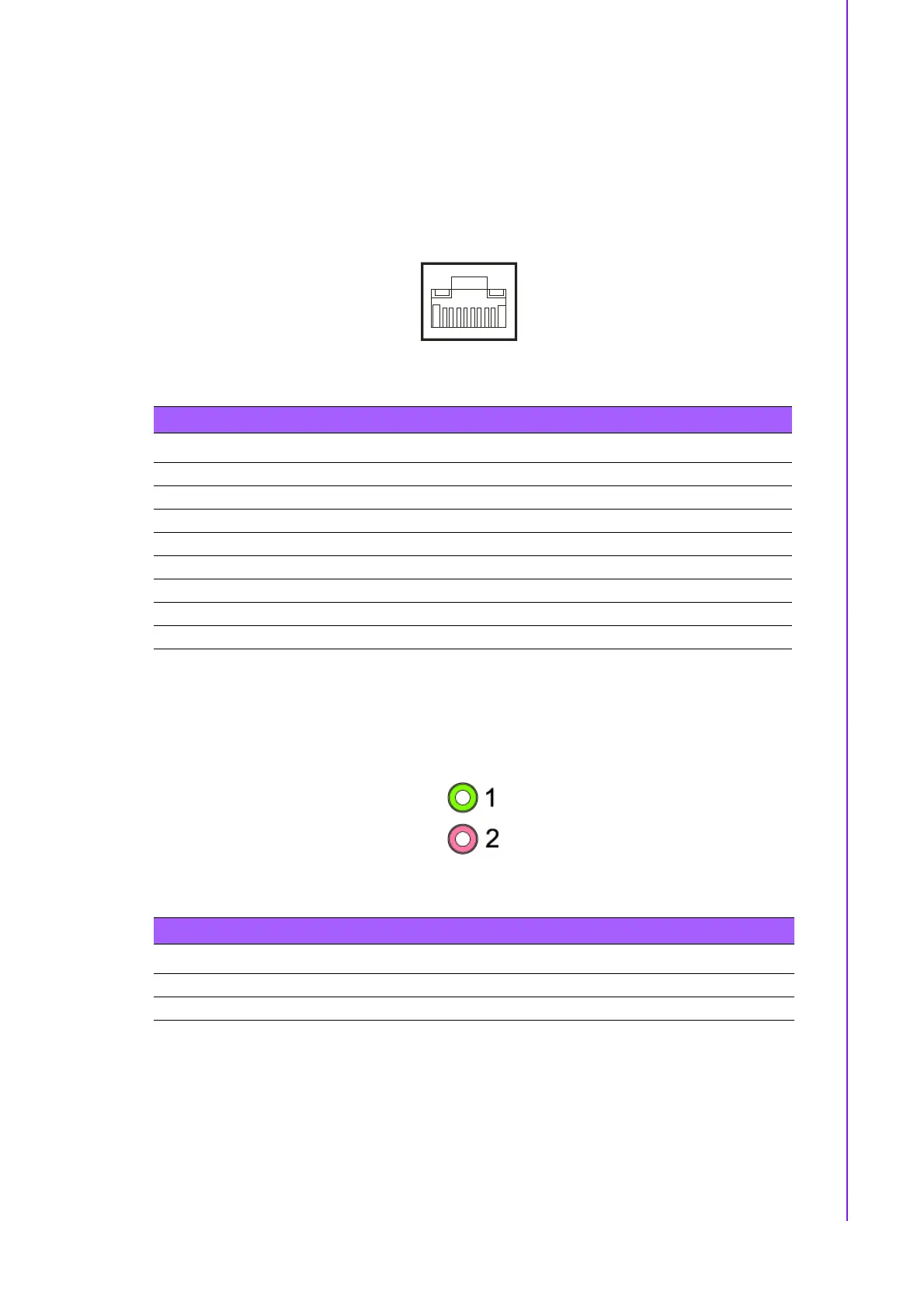

Figure 2.2 Ethernet Connector
2.3.1.3 Audio connector
MIC-7700 has two stereo audio ports with phone jack connectors, one Line_Out, one
Mic_In. The audio chip is controlled by ACL892, and it’s compliant with AZALIA stan-
dard.
Figure 2.3 Audio Connector
Table 2.3: Ethernet Connector Pin Assignments
Pin 10/100/1000BaseT Signal Name
1TX+
2TX-
3RX+
4MDI2+
5MDI2-
6RX-
7MDI3+
8MDI3-
18
Table 2.4: Audio Connector Pin Assignments
Pin Audio Signal Name
1Line_Out
2Mic_In
