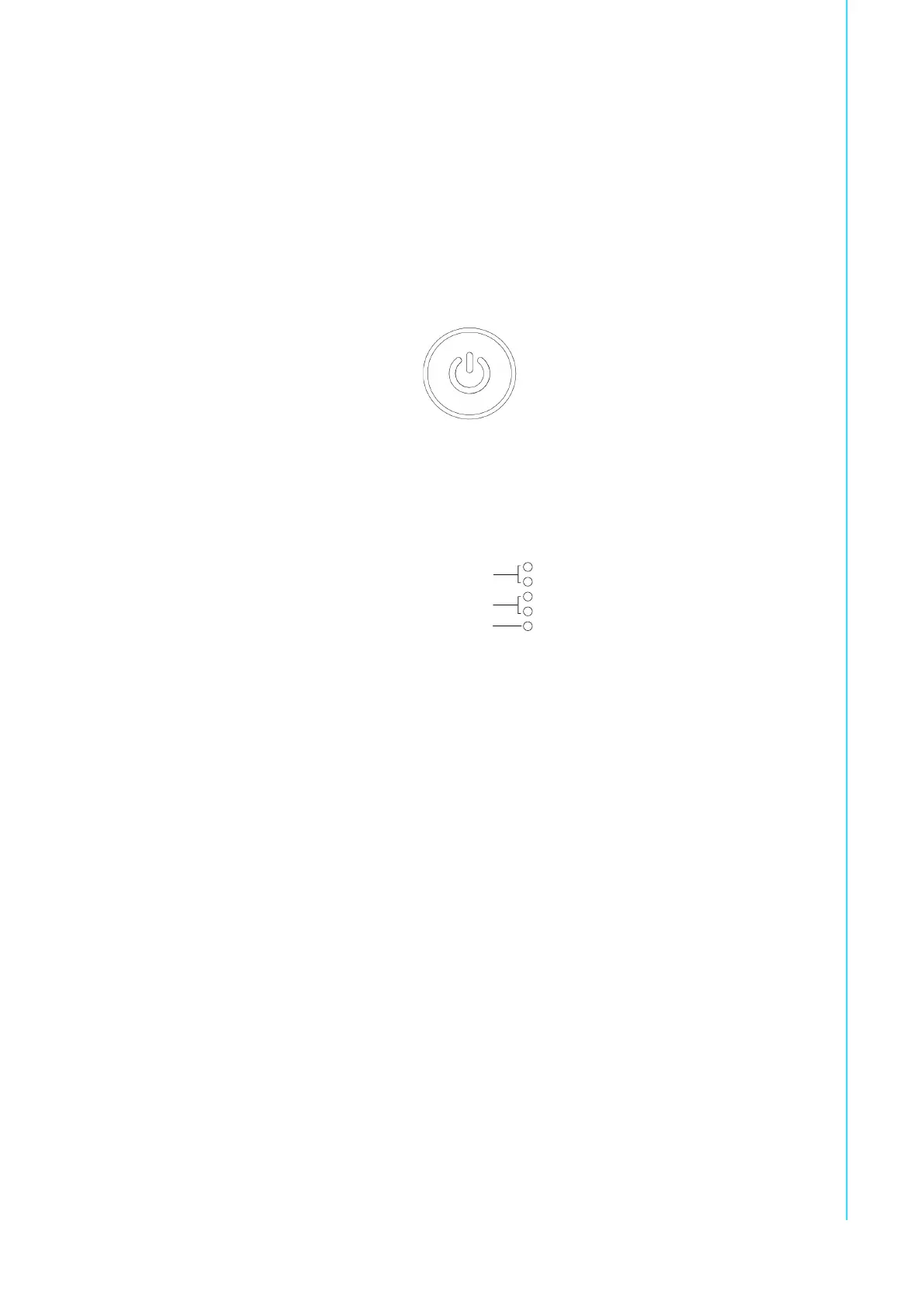

17 MIC-770 V2 User Manual
Chapter 2 H/W Installation
2.3.1.8 Power ON/OFF Button
MIC-770 V2 comes with a Power On/Off button with LED indicators on the front side
to show its On status (Green LED) and Off/Suspend status (RED LED), that supports
the dual function of Soft Power-On/Off (instant off or delay 4 seconds), and suspend.
Power button LED status:
System On: LED On
System Suspend: Fast flashes
System Off: Off
System Off in deep sleep: Off
Figure 2.8 Power Button
2.3.1.9 LED Indicators
MIC-770 V2 provides COM1 & COM2 TX/RX LED for date transmission status moni-
toring.
Figure 2.9 LED Indicators
COM2 : TX/RX
TX
RX
TX
RX
COM1 : TX/RX
HDD status
