4 MIC-75S20 Startup Manual

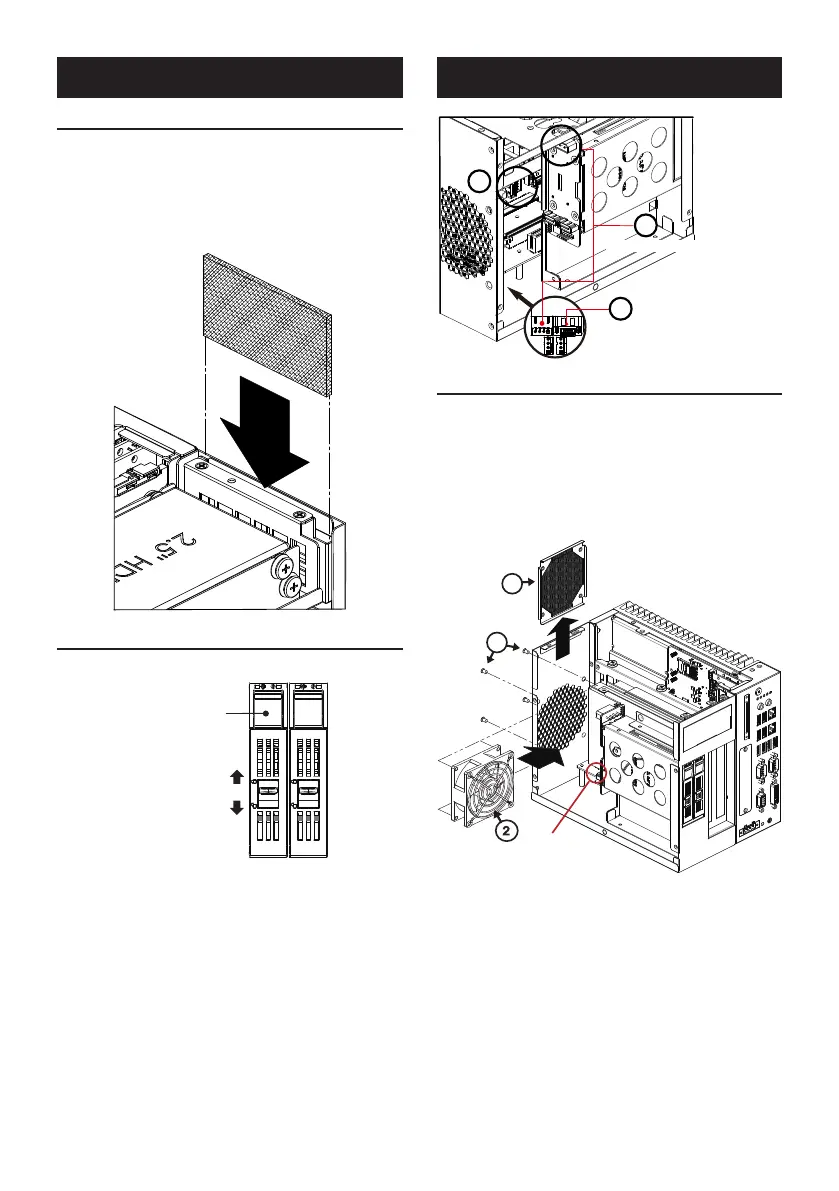

Fan Filter Installation
If your system has a fan installed, we recommend you to
replace the system fan filter at regular intervals to ensure
stability of the system cooling.
You will find one new fan filter on the fan module.
1. Undo the system cover and remove the old fan filter.
2. Change new fan filter and replace system cover with screws.
Hot swappable HDD tray installiation
1. Un-lock HDD tray and push “ejection button” to remove
HDD tray.
Locked
Un-locked
Ejection button
2. Assemble HDD and replace HDD tray.
3. Connect SATA cable to system.
4. Connect SATA power cable to HDD tray backplane.
5V Power for HDD 2
3
3
4
5V Power for HDD tray backplane
Fan Installation (Optional)
MIC-75S40 supports a 8 x 8CM fan space. If you want to
install high perfornamce expansion cards, (for example:
graphics or a PoE card), or total power consumption is over
45W, then you should install a fan.
A fan is an optional module. If your system needs a fan
module, please contact your distributor or sales represen-
tative.
Fan Module P/N: 98R1752000E.
1
Fan Connector
2
3
1. Undo the fan cover
2. Secure the fan protection nets with 4 screws.
3. Assemble and secure the fan in chassis with 4 screws.
4. Plug the the fan power cable into the connector on the
backplane board.
Simple Maintenance Process (Cont.)
Simple Maintenance Process (Cont.)
