MIC-713 用户手册 32

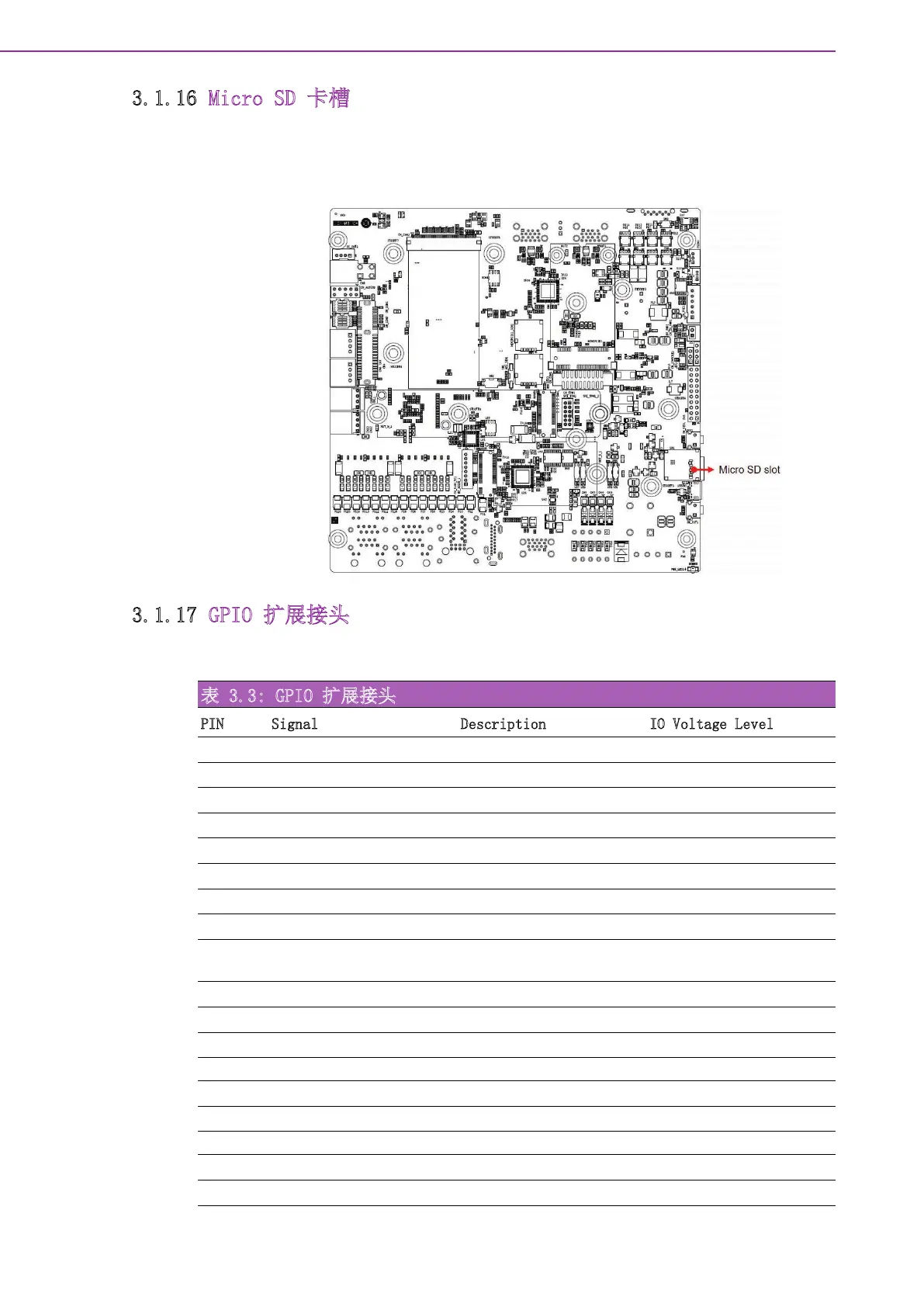

3.1.16 Micro SD 卡槽
此卡槽提供 USB2.0 讯号供 Micro SD 卡片使用。
当有额外储存空间需求时，请于本卡槽插入至少 64 GB 以上容量的 Micro SD 卡片以
供后续使用。
3.1.17 GPIO 扩展接头
MIC-713 提供多个 GPIO 接头供开发者使用，详细功能与定义可参阅下表。
表 3.3: GPIO 扩展接头
PIN Signal Description IO Voltage Level
1 3.3 V Power +3.3V 3.3 V
2 5 V Power +5V 5 V
3 3.3 V Power +3.3V 3.3 V
4 5 V Power +5V 5 V
5 I2S_DOUT I2S Audio Data Out 1.8 V
6 SPI1_SCK SPI Clock 1.8 V
7 I2S_DIN I2S Audio Data In 1.8 V
8 SPI1_MISO SPI Master In/Slave Out 1.8 V
9 I2S_FS I2S Audio Left/Right
Clock
1.8 V
10 SPI1_MOSI SPI Master Out/Slave In 1.8 V
11 I2S_SCLK I2S Audio Clock 1.8 V
12 SPI1_CS0 SPI Chip Select 0 1.8 V
13 GND GND N/A
14 SPI1_CS1 SPI Chip Select 1 1.8 V
15 GPIO06G GPIO 1.8 V
16 GND GND N/A
17 GPIO07 GPIO 1.8 V
18 GPIO12 GPIO 1.8 V
