27 MIC-713 User Manual
Chapter 3 Board Placement Overview
3.1.10 PoE Upgrade Kit (Optional) Related Connector
1. LAN PoE Power Source Connector (54V) – This connector pass the 54 V power
(from Advantech PoE board) to 4 PoE ports, each port can provide up to 15 W
to device.
2. PoE board Power connector (12 V) – This connector pass the 12 V (from moth-
erboard) to Advantech PoE board.
3. PoE board Control Connector – This connector is designed to function reserving
for future usage.

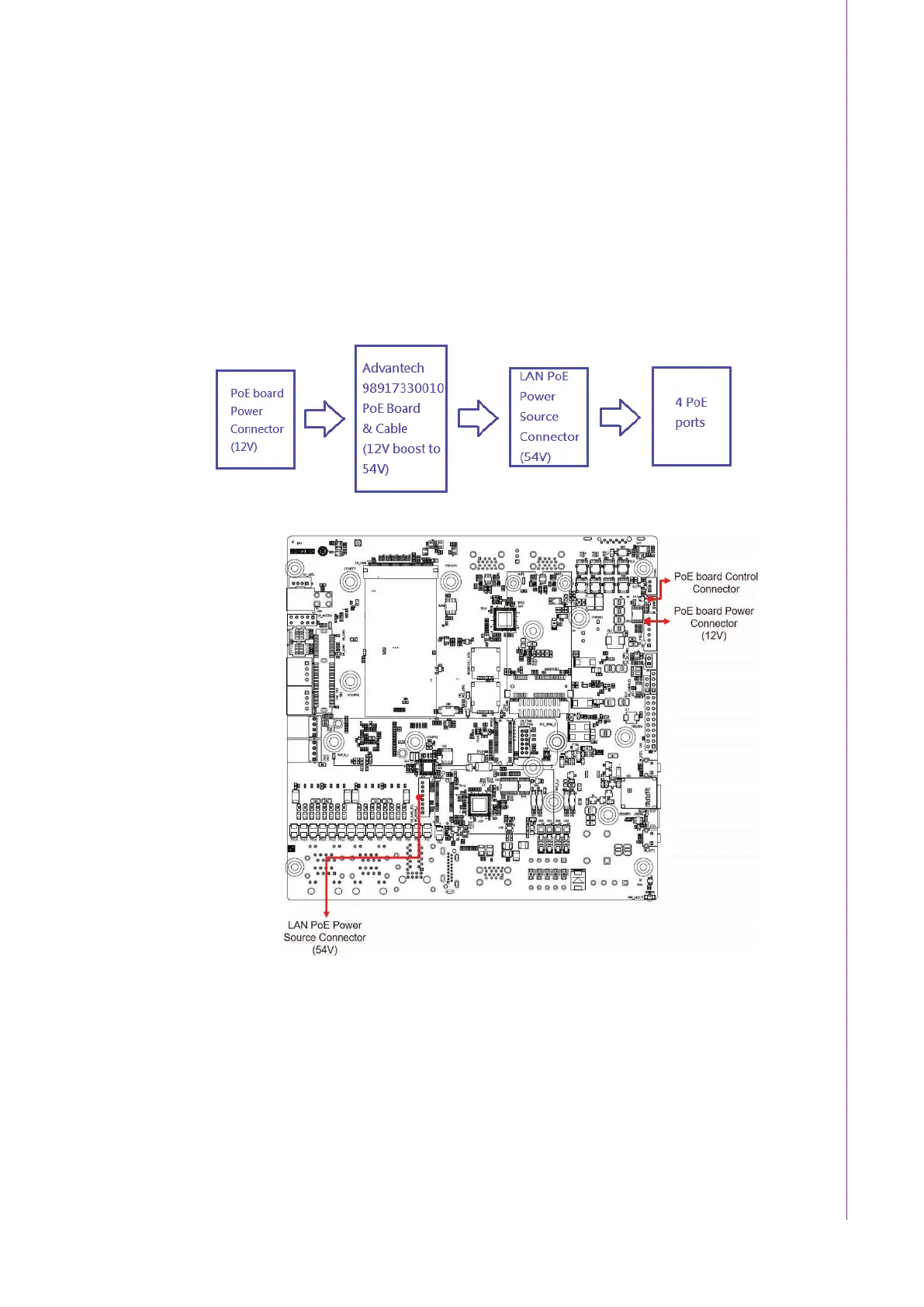

Below is the process to show the power source of PoE ports where from.
