MIC-713 User Manual 12

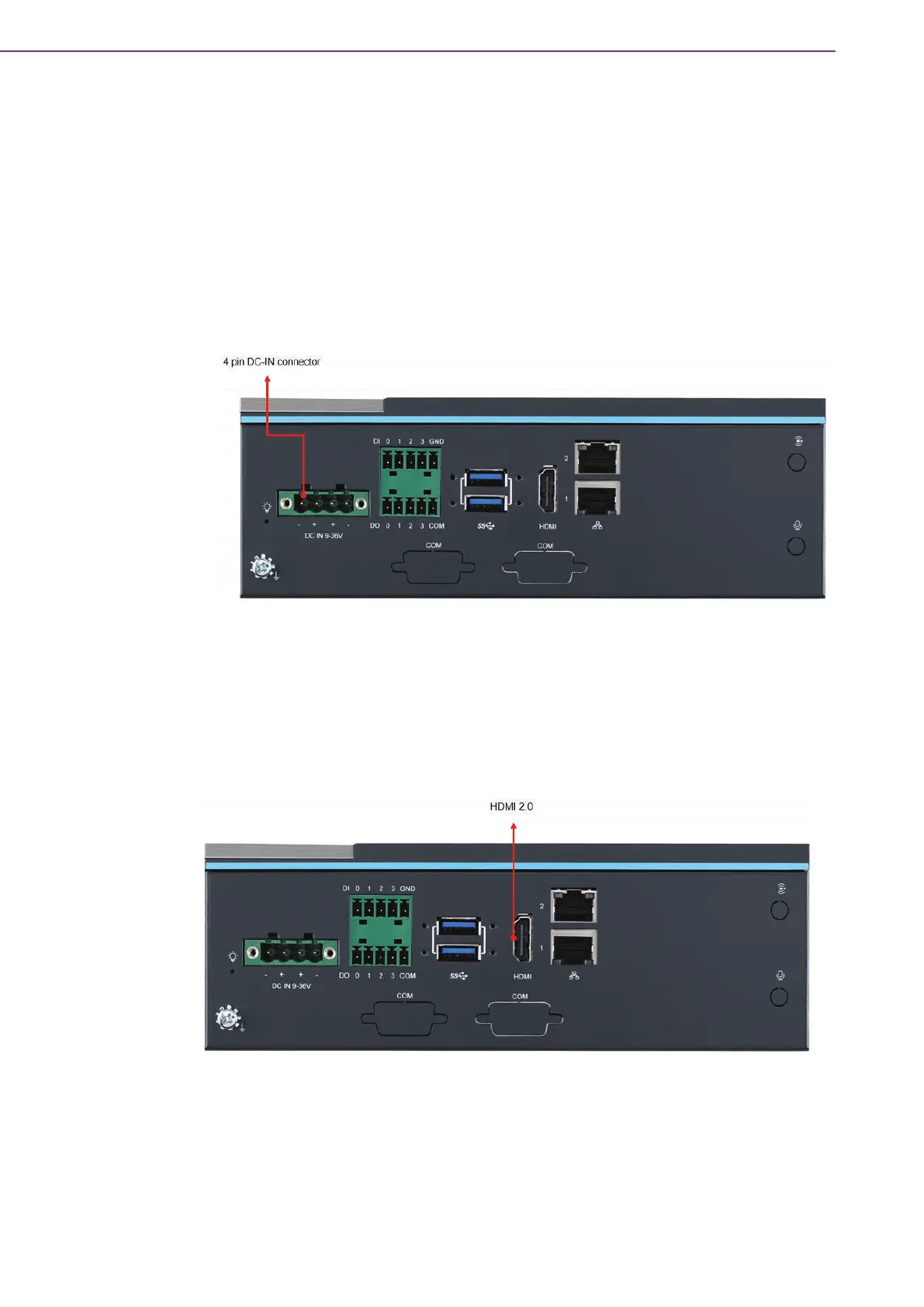

2.2.6 DC-IN Connector
When conducting DC connector wiring you should follow the below instructions:
1. Must be installed by a skilled person.
2. Use copper conductors only.
3. Choose appropriate wire diameter.
4. The terminal block is suitable for 14 AWG torque value is 7 lb in.
5. The voltage for the system is 9 V
DC
to 36 V
DC
.
6. The current for the system is 15 A to 5.6 A.
NOTE: To take and swap the 4 pin phoenix connector from the system accessory box
if the adapter only offers 2 pin/3 pin phoenix connectors.
2.2.7 HDMI Connector
The MIC-713 provides an HDMI 2.0 type-A connector for displaying video. The maxi-
mum resolution is 3840x2160 @60Hz.
