MIC-711 User Manual/用户手册 14

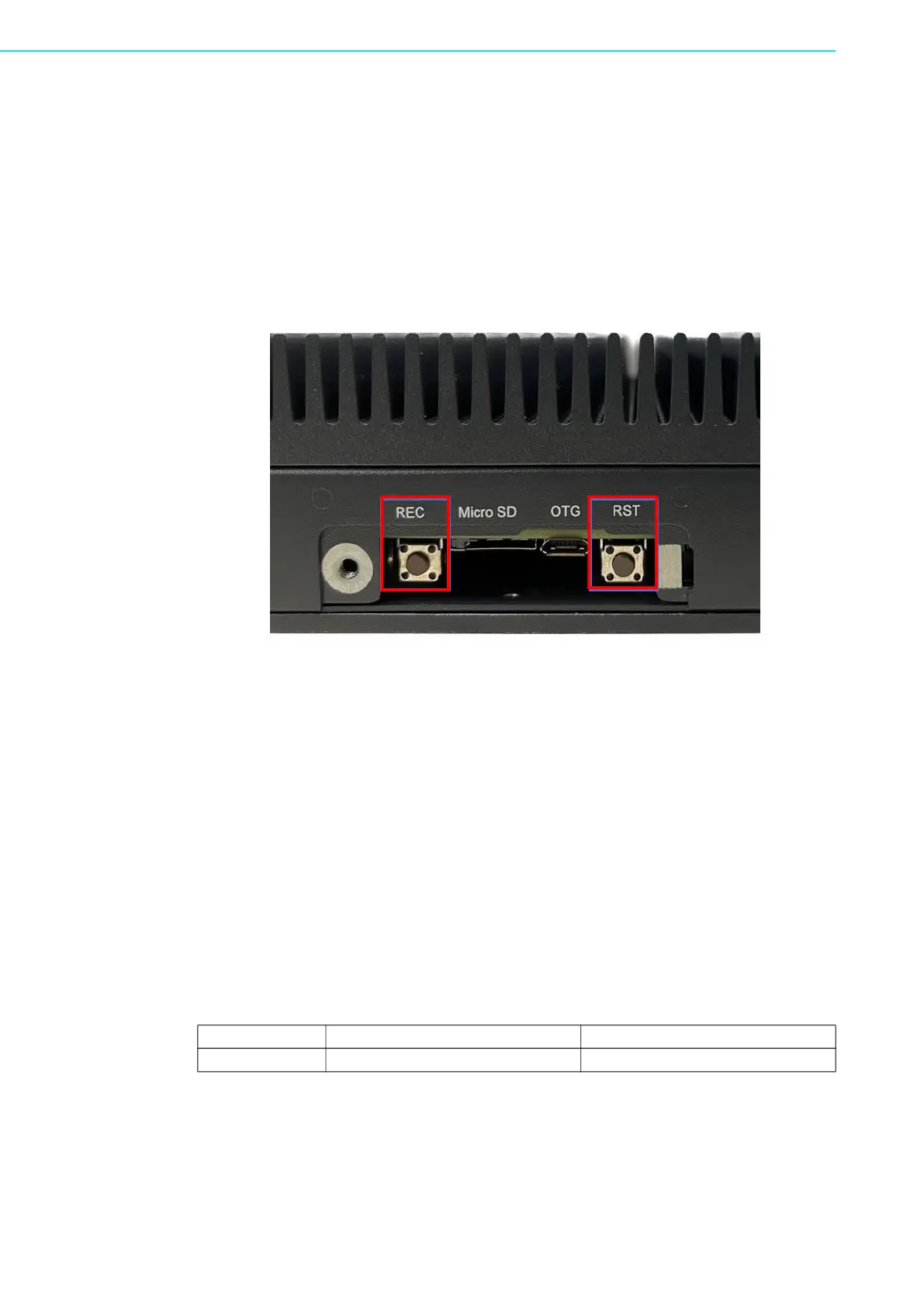

2.2.8 Reset & Recovery Button/重启 & 复原按钮/重啟 & 復原按鈕
MIC-711 provides two button one is Recovery and other one is Reset which for sys-
tem BSP recovery.
MIC-711 内部提供了 2 个按钮，分别是 Recovery 及 Reset，此两个按钮主要用于系
统 BSP 复原使用。
MIC-711 內部提供了 2 個按鈕，分別是 Recovery 及 Reset，此兩個按鈕主要用於系
統 BSP 復原使用。
2.2.8.1 USB Recovery Mode/USB 更新模式/USB 更新模式
To update your MIC-711, you must be in Force USB Recovery Mode. When in Force
USB Recovery Mode, you can update system software and write partition configura-
tion to the device.
1. Please prepare one HOST PC. (About more HOST PC detail, please refer to
software update SOP.)
2. Before flashing MIC-711, you must turn MIC-711 into Force Recovery Mode
manually.
(1)Shut down the MIC-711 and open the rear door.
(2)Connect HOST PC and MIC-711 Micro USB with USB cable.
(3)Press and hold the REC (SW_REC1) button for recovery.
(4)Press the RST (SW_RST1) button for reset.
(5)After 5s release the REC (SW_RST1) button.
Make sure MIC-711 is recognized by HOST PC successfully:
Type command in HOST PC: lsusb
If you see: NVIDIA Corp. It means MIC- 711 is in recovery mode.
如果需要更新 MIC-711，你必须要让 MIC-711 进入 USB 更新模式。在 USB 更新模式
下，你可以更新系统的软件以及将系统写入相关的参数设定。
1. 请准备一台 HOST 系统。(关于 Host 系统的细节，请参阅软件更新指南)
2. 在更新 MIC-711 之前，你必须手动让 MIC-711 进入 USB 更新模式。
(1)请将 MIC-711 关机，打開後窗蓋。
MIC-711-OX MIC-711-ON
Root password mic-711 mic-711on
