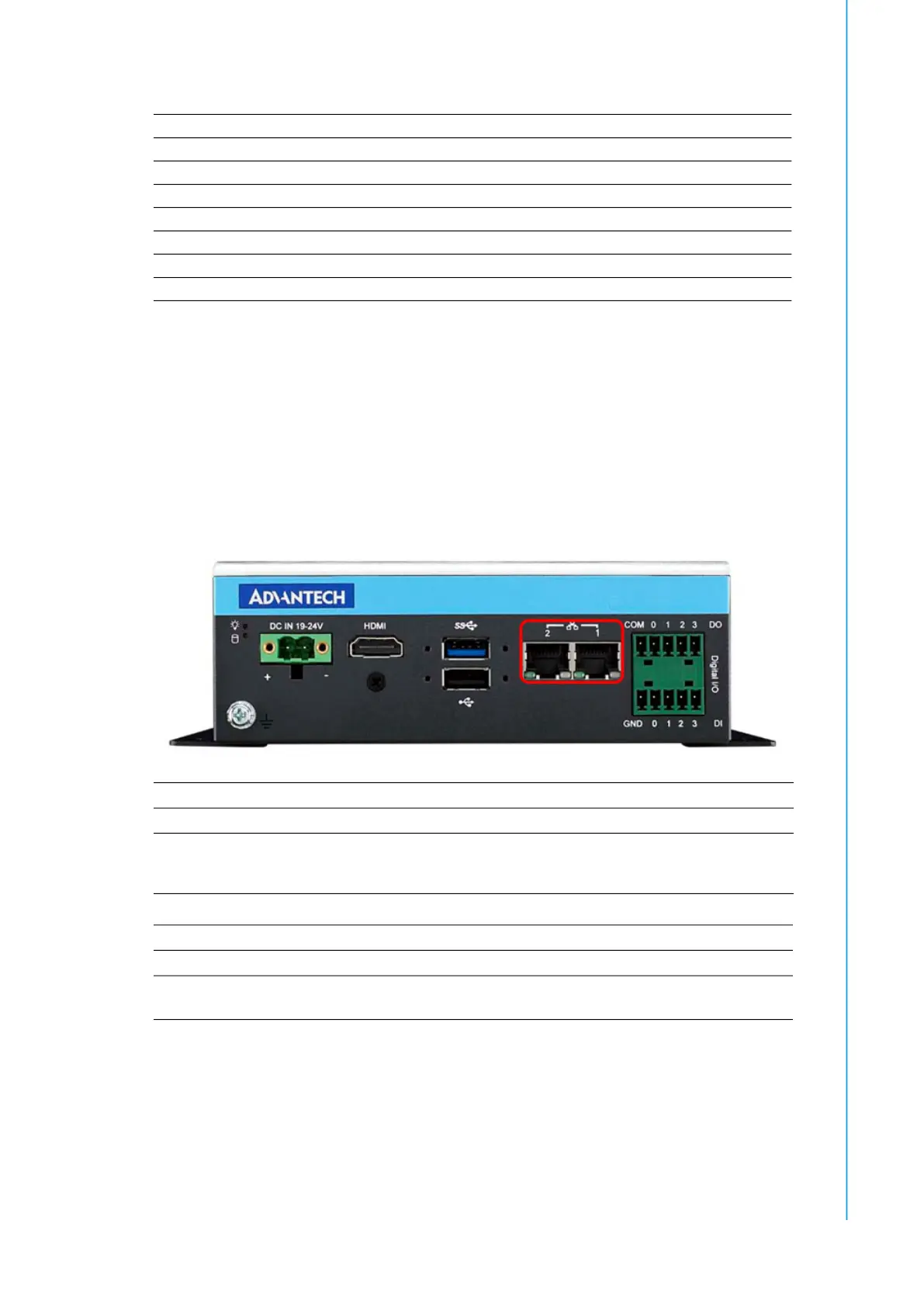

11 MIC-710AI(X) User Manual
Chapter 2 H/W Installation 硬件安装 硬體安裝
2.2.3 Ethernet (LAN)/ 网络/網路
MIC-710AI/MIC-710AIX comes with 2 LAN Port in the front side of device. The Ether-
net LAN port has two LEDs. The Green LED indicates activity; the other one Green-
Amber LED indicates speed.
MIC-710AI/MIC-710AIX 在本机前面板提供了两组网络端口，其上方有两个 LED 灯，绿
色 LED 登表示网络状态，绿橘双色灯表示网络速度。
MIC-710AI/MIC-710AIX 在本機前面板提供了兩組網路埠，其上方有兩個 LED 燈，綠色
LED 登表示網路狀態，綠橘雙色燈表示網路速度。
SW1 SW2 SW3 SW4 RS232/422/485 Remark
OFF OFF OFF OFF RS232 Default
ON OFF OFF OFF RS422
ON OFF ON OFF RS422 (En_Terminal)
ON ON OFF OFF RS485
ON ON ON OFF RS485 (En_Terminal , DIR# )
ON ON ON ON RS485 (En_Terminal , DIR )
OFF ON OFF OFF LOOPBACK
Green LED/绿灯/綠燈
OFF/不亮/不亮 ON /亮灯/亮燈 Blinking /闪烁/閃爍
LAN No connection
网络未连接
網路未連接
LAN Link
网络连接
網路連接
Activity on this port
数据传输中
資料傳輸中
Green-Amber LED/绿橘灯/綠橘燈
OFF/不亮/不亮 Green /绿灯/綠燈
Speed/速度/速度
10Mbps or 100Mbps
Speed/速度/速度
1Gbps
