17 MIC-3840 User Manual
Appendix A Pin Assignments and Jumper Settings

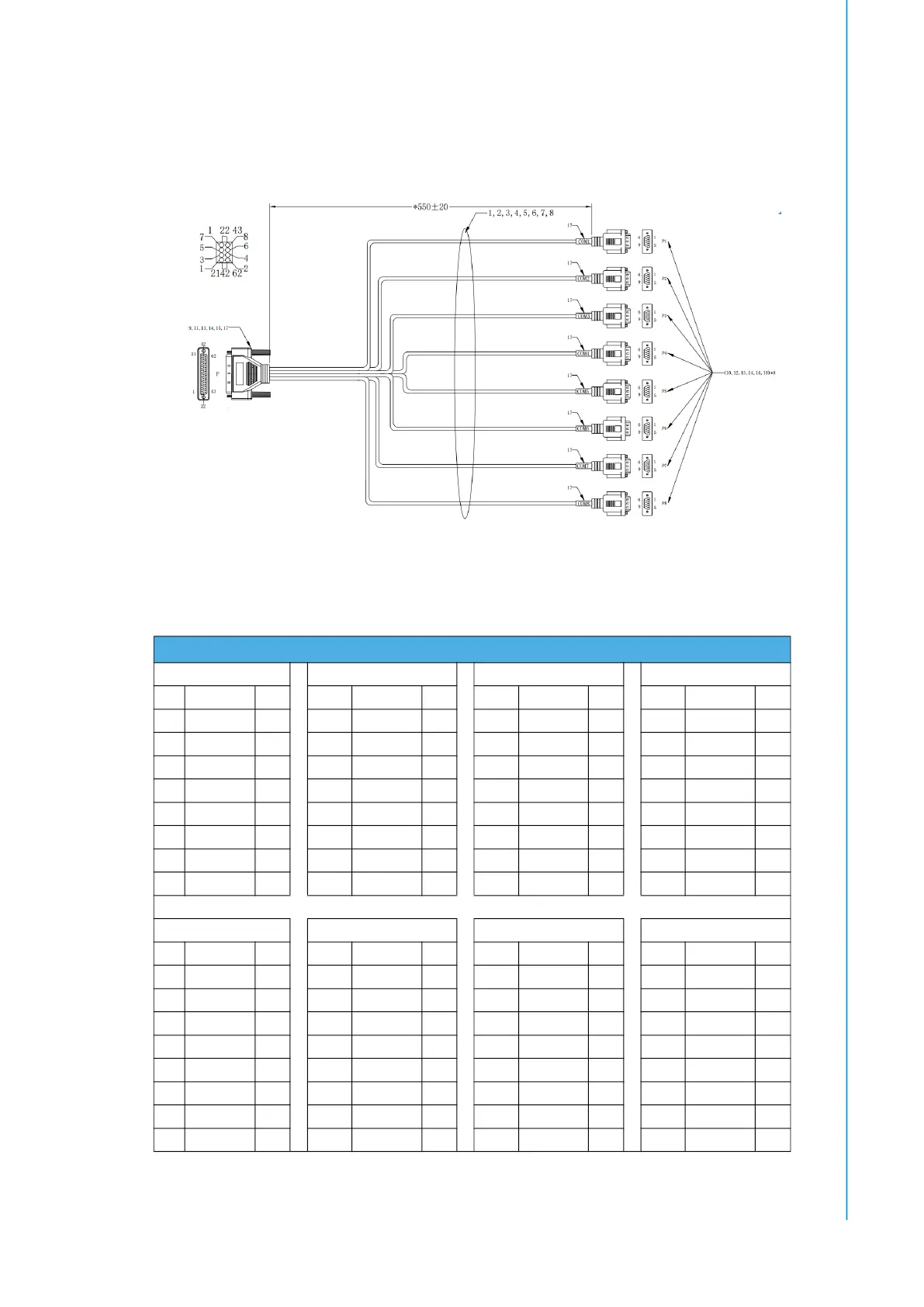

A.5 Accessory Cable
MIC-3840 comes standard with Cable D-SUB 62P (M)/D-SUB 9P (M) x8 55CM
COM1-8.
A.6 Cable Definition
Table A.4: Cable Define
Pin Assignment Pin Assignment Pin Assignment Pin Assignment
P color P1 P color P2 P color P3 P color P4
17 Black 1 41 Black 1 12 Black 1 36 Black 1
39 Brown 2 20 Brown 2 34 Brown 2 14 Brown 2
21 Red 3 38 Red 3 37 Red 3 33 Red 3
42 Orange 4 16 Orange 4 15 Orange 4 11 Orange 4
62 Yellow 5 58 Yellow 5 58 Yellow 5 53 Yellow 5
61 Green 6 59 Green 6 57 Green 6 55 Green 6
19 Blue 7 18 Blue 7 35 Blue 7 13 Blue 7
40 Purple 8 60 Purple 8 56 Purple 8 54 Purple 8
Pin Assignment Pin Assignment Pin Assignment Pin Assignment
P color P5 P color P6 P color P7 P color P8
29 Black 1 31 Black 1 23 Black 1 26 Black 1
7 Brown 2 9 Brown 2 2 Brown 2 4 Brown 2
10 Red 3 28 Red 3 5 Red 3 22 Red 3
32 Orange 4 6 Orange 4 27 Orange 4 1 Orange 4
50 Yellow 5 50 Yellow 5 46 Yellow 5 43 Yellow 5
52 Green 6 8 Green 6 25 Green 6 45 Green 6
30 Blue 7 49 Blue 7 47 Blue 7 24 Blue 7
51 Purple 8 48 Purple 8 3 Purple 8 44 Purple 8
