3 MIC-3840 User Manual

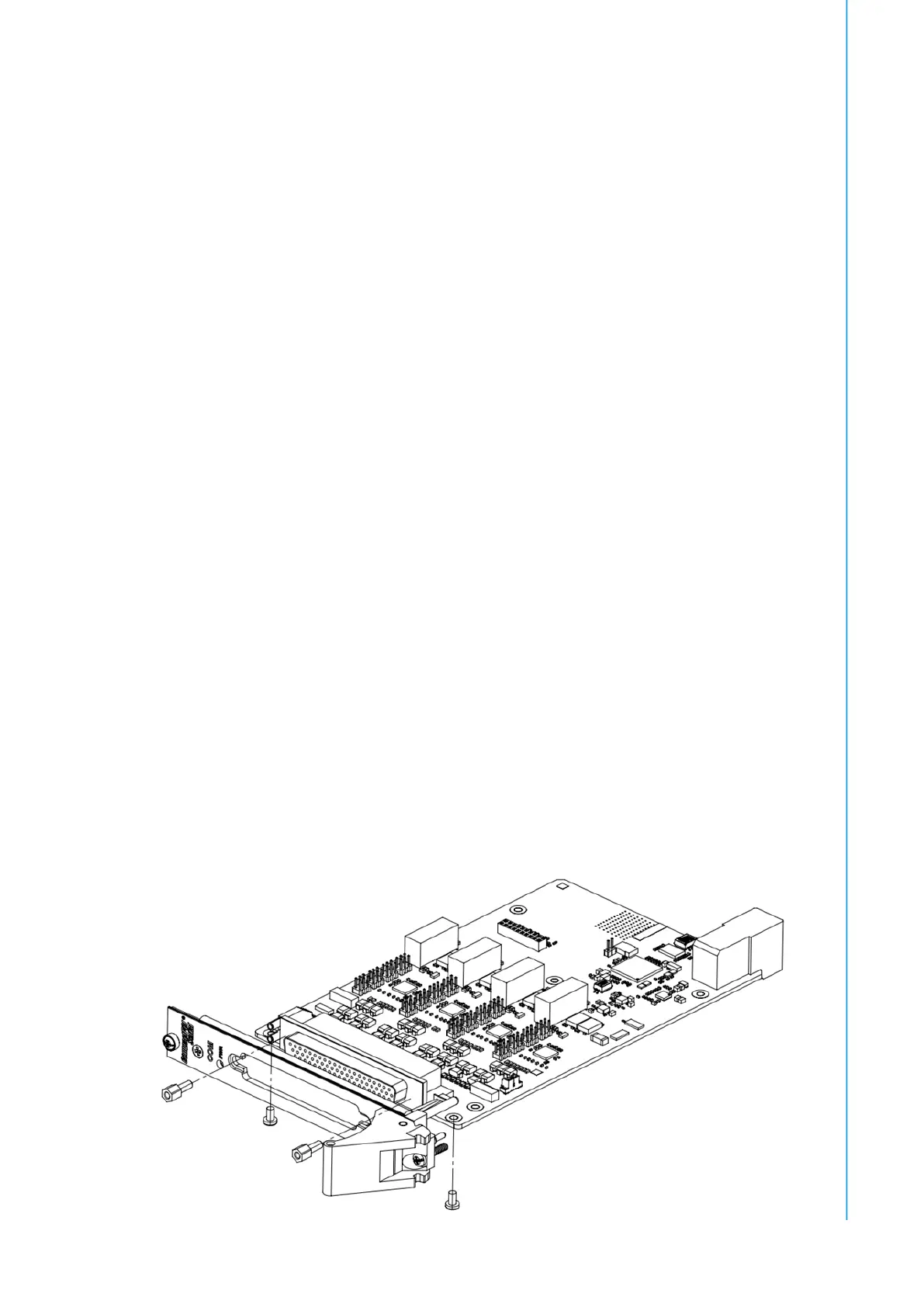

Chapter 1 General Information
1.2 Key Features
8-Port RS-232/422/485 isolated
Speeds up to 921600bps
256-byte TX and RX FIFOs
UART 16550 compatible register set
2KV surge protection
PICMG CompactPCI Serial (CPCI-S.0 R2.0) compliant
1.3 HW Specifications
PICMG compliance: CompactPCI Serial (CPCI-S.0 R2.0)
Connector: DB62(F) on the board, and converted to DB9(M) via Cable
Bus interface: PCIe ×1
I/O operating voltage: 12V Main, 5V standby
Power consumption: <5W @ 12V
Support mode: RS-232/422/485
Communication controller: EXAR XR17V358
Speed: up to 921600bps
UART: 256-Byte FIFO for each transmitter/receiver,16550 compatible register
set
I/O Address: Multi-drop with auto address detection
Data flow: Automatic RS-422/485 data flow control
Data Bits/Stop Bits: Data Bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
Isolation Protection: Board isolation protection is AC 1.5KV, D-SUB cable pro-
tection is AC 840KV insulation protection
OS Support: Ubuntu 20.04, Windows® 10, Windows® 11
Led: Power LED: green indicates power-on.
1.4 Mechanical Specifications
Dimensions:160mm X100mm
Height: 4HP/20.23mm
Weight: 0.165Kg
