9 MIC-3332 User Manual
Chapter 1 Hardware Configuration
1.5 Connector Definitions
Table 1.4 lists the function of each connector and Figure 1.3 and 1.4 illustrates each
connector location.
MIC-3332 series with 8HP(XTM-1) IO functions
MIC-3332 series with 8HP(XTM-2) IO functions

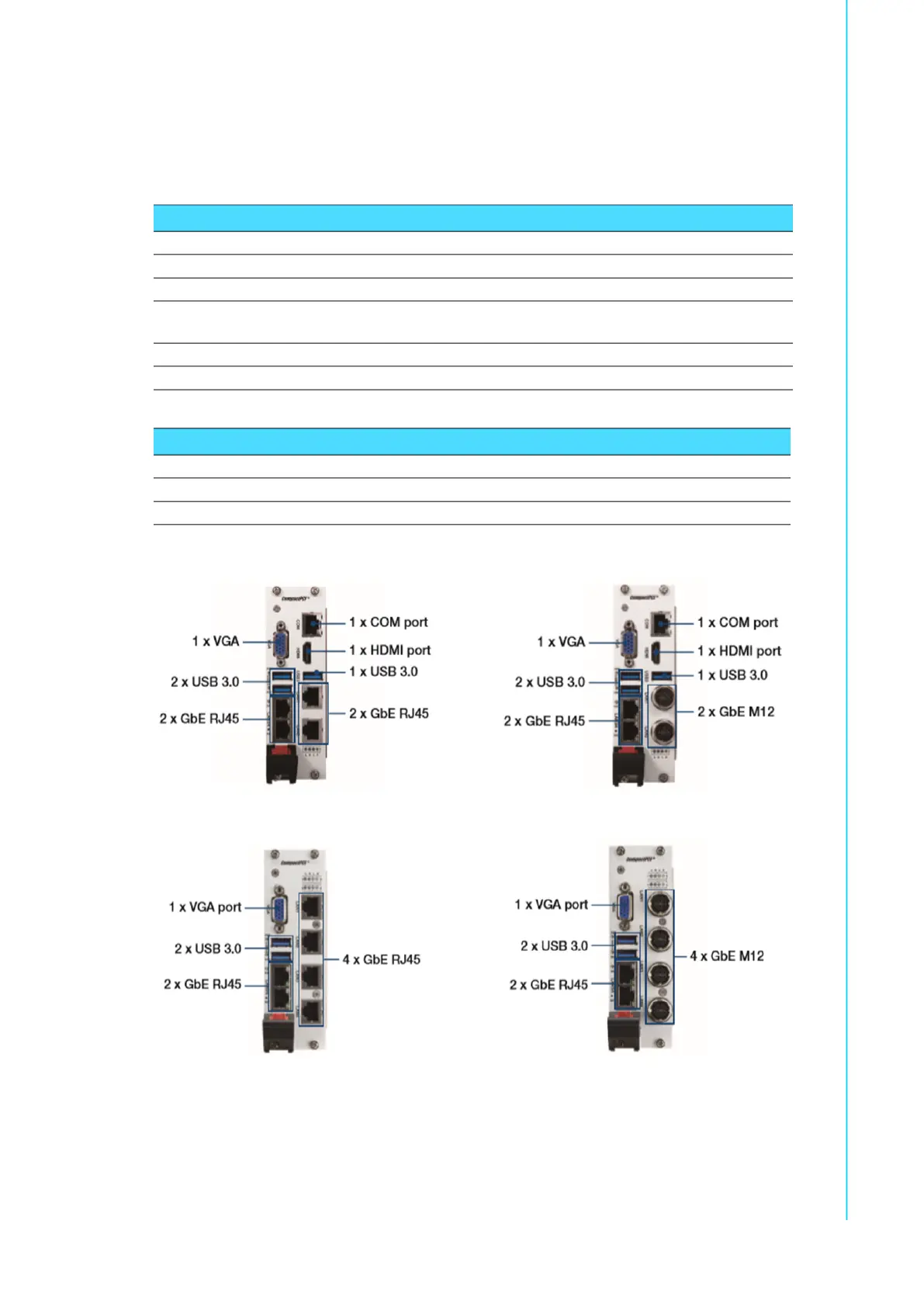

Figure 1.3 MIC-3332 Front Panel Ports, Indicators and Buttons
Table 1.4: MIC-3332 on Board Connector Descriptions (Front IO Board)
Number Function Note
SATA1 SATA HDD daughter board
CFast1 CFast Socket
SD1
Micro-SD Connector
(on MIC-3332 with 8HP XTM-2 board)
J1 Primary CompactPCI Bus
J2 Rear I/O Transition
Table 1.5: MIC-3332 on Board Connector Descriptions (Rear IO Board)
Number Function Note
M2_CN1 M.2 connector
M2_CN2 M.2 connector
