LEO-S573-C2G0 should be considered following notes to insure proper installation:
⚫ CO
2
sensor should be mounted no higher than 12-18 inches above the floor since CO
2
is
heavier than normal air and will flow down.
⚫ Installation should be considered the layout of a space. Enclosed spaces or varying
spaces are recommended to install one more sensor.

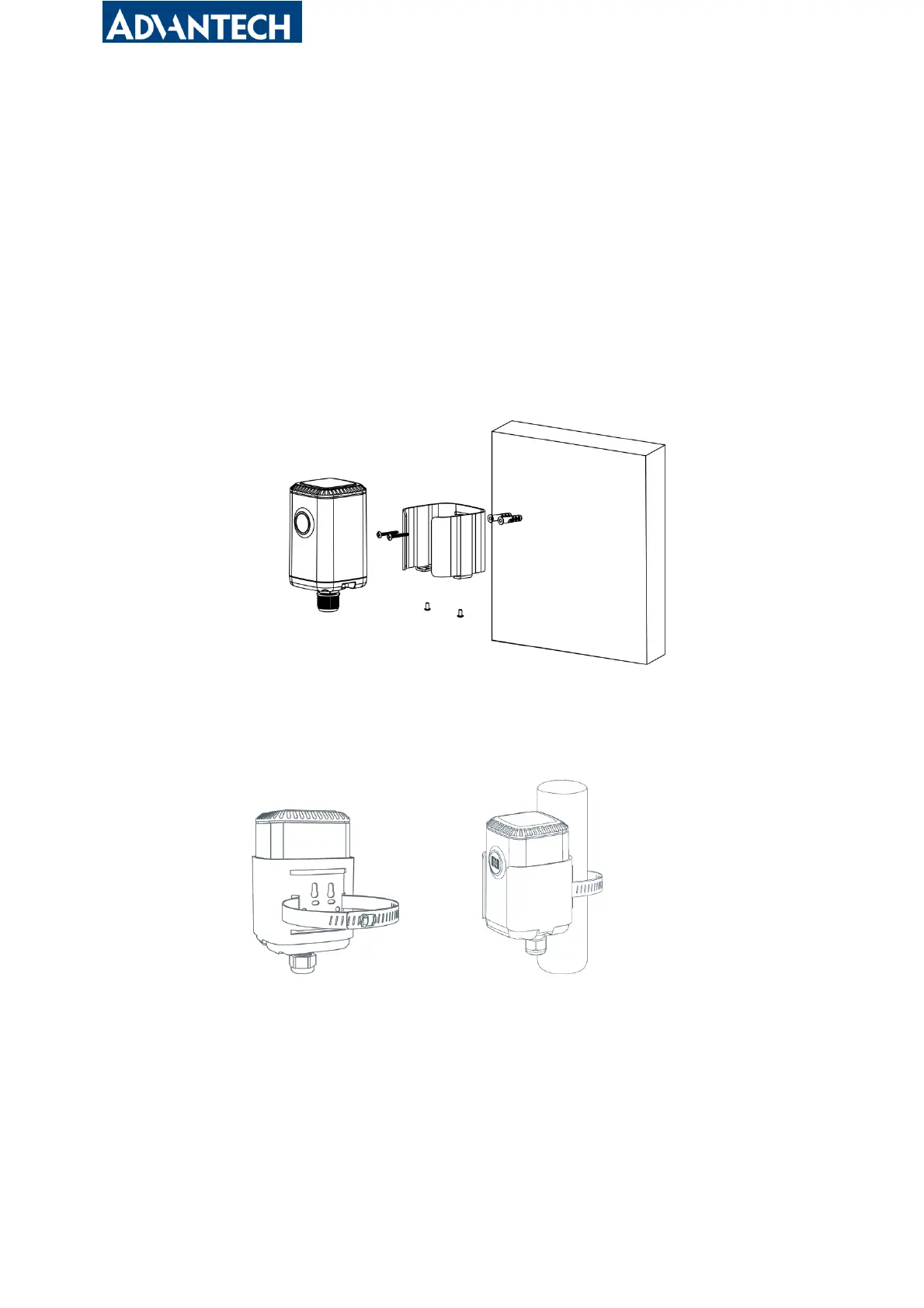

Wall Mounting:
1. Drill 2 holes on the wall according to the mounting bracket, then fix the wall plugs into the
wall.
2. Fix the mounting bracket to the wall via screws.
3. Put the device onto the mounting bracket, then fix the device to the bracket with 2 fixing
screws.
Pole Mounting:
Straighten out the hose clamp and slide it through the rectangular holes in the mounting
bracket, wrap the hose clamp around the pole. After that use a screwdriver to tighten the
locking mechanism by turning it clockwise.
DIN Rail Mounting:
Use 2 pcs of M3 × 6 flat head Phillips screws to fix the mount clip to the bracket, and then
hang the device to the DIN rail. The width of DIN rail is 3.5 cm.
