5. Installation
LEO-S572-TPG0 transceiver support wall, pole and DIN rail mounting. Before installation,
ensure the mounting bracket has fixed to the device via screws.

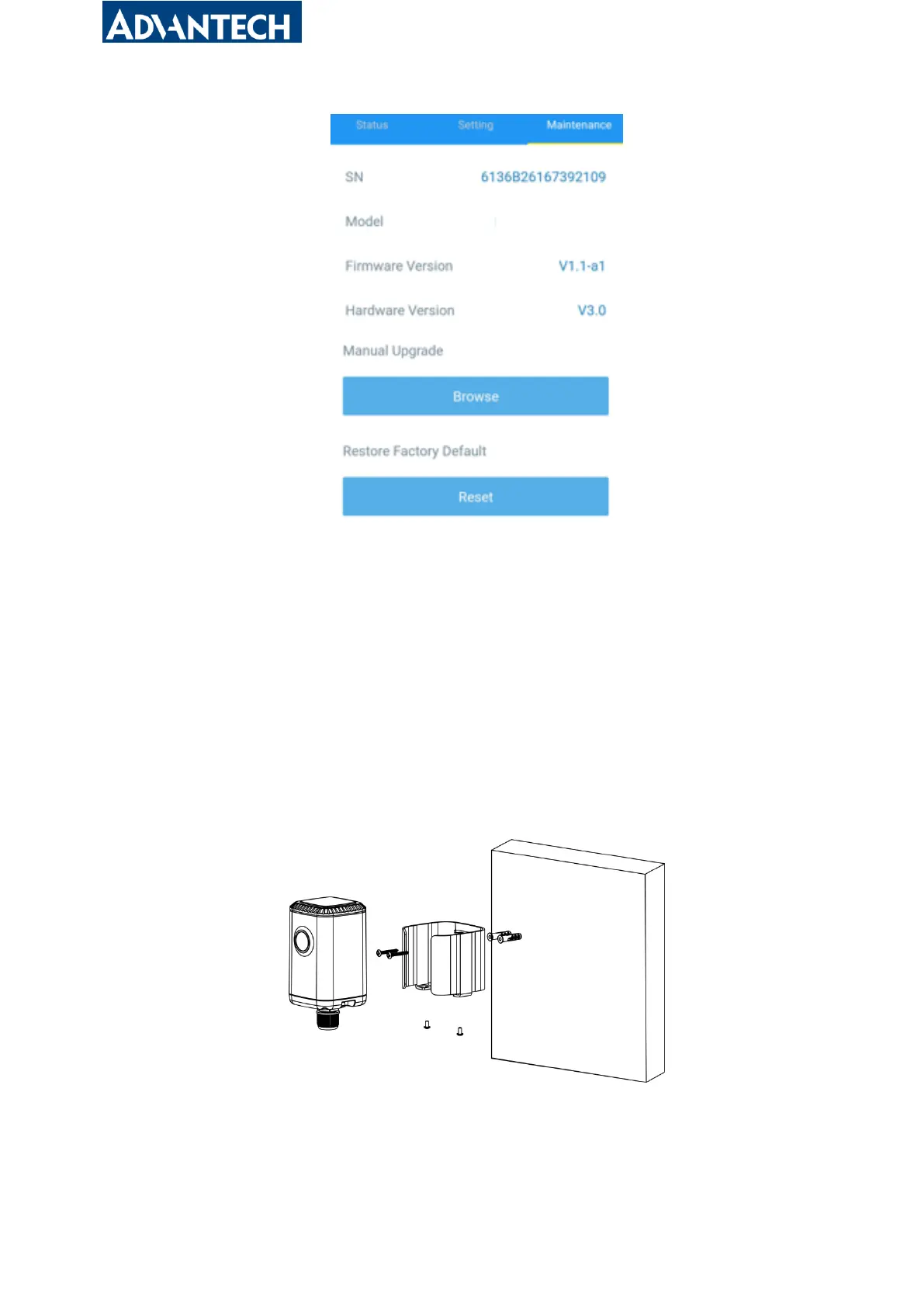

Wall Mounting:
1. Drill 2 holes on the wall according to the mounting bracket, then fix the wall plugs into the
wall.
2. Fix the mounting bracket to the wall via screws.
3. Put the device onto the mounting bracket, then fix the device to the bracket with 2 fixing
screws.
Pole Mounting:
Straighten out the hose clamp and slide it through the rectangular holes in the mounting
bracket, wrap the hose clamp around the pole. After that use a screwdriver to tighten the
locking mechanism by turning it clockwise.
