ITA-580/580G User Manual 30
1. Undo 6 screws and take off the bottom cover.
2. Undo 6 screws from middle bracket.
3. Assemble wireless module on mPCIe/M.2 slot and secure the screws on the
module.
4. Connect the internal antenna cable to the wireless module.
5. Next, carefully break an opening for the SMA connection on the side to enable
the assembly of the internal antenna.
Note: Please ensure that the cables are arranged in a straight and smooth manner.
6. Replace the middle bracket, bottom cover and secure all screws.

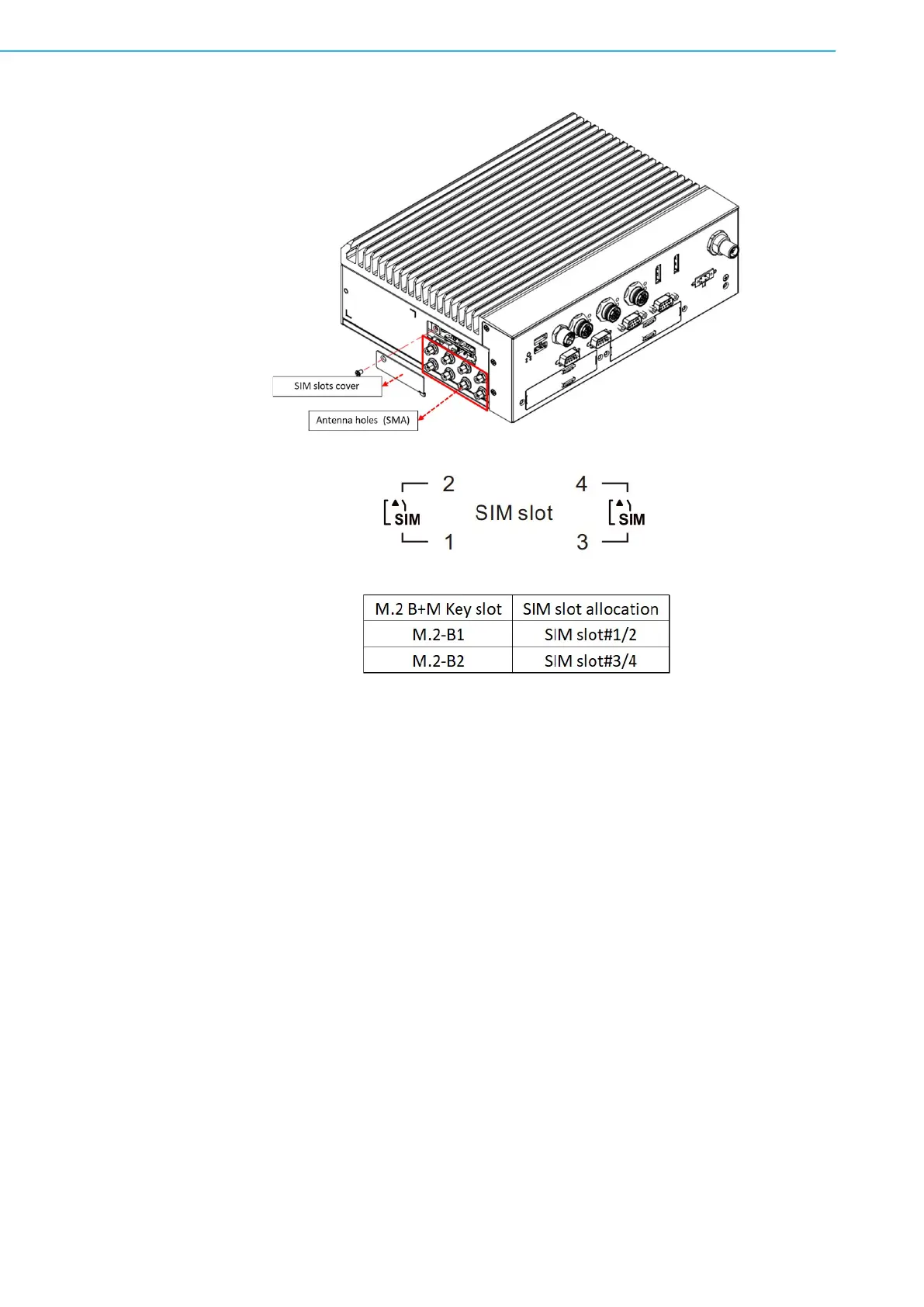

7. Undo the screw from SIM cover on side then insert micro SIM into SIM slot.
8. Replace the SIM cover and secure screw.
